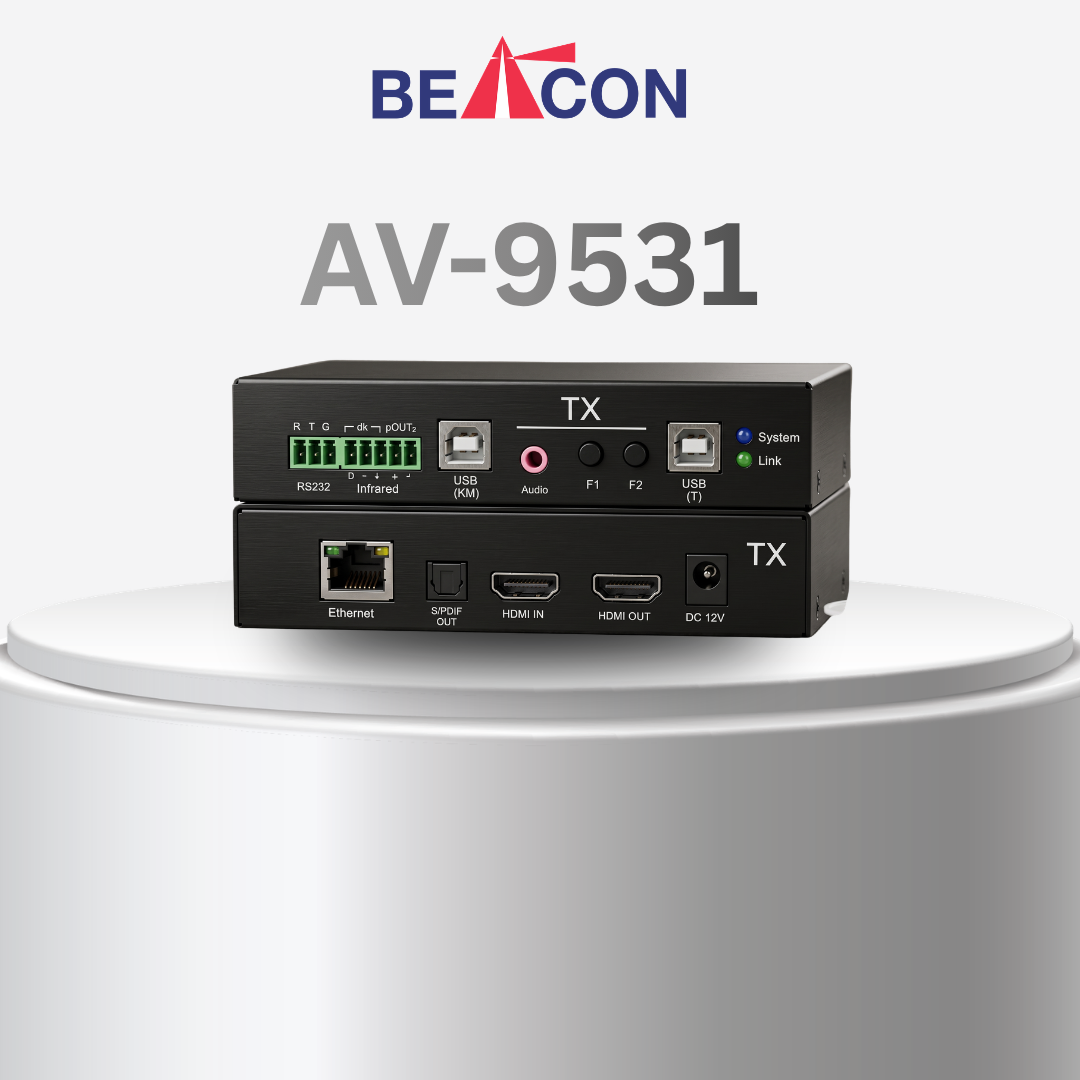

The Beacon AV-9531 is a professional-grade 4K@60 KVM over IP solution designed to deliver ultra-high-definition video, audio, RS-232, and USB signals over a standard Gigabit IP Ethernet network. The system consists of the AV-9531T Transmitter (TX) and AV-9531R Receiver (RX), allowing you to easily scale your connectivity from simple point-to-point setups to complex matrixes and massive video-wall installations.
Featuring a built-in scaling engine, it supports flexible video-wall configurations with 90°, 180°, and 270° rotation capabilities. With plug-and-play hardware implementation, HDMI/SPDIF ARC support, and intuitive Connection Manager Software, this system is an ideal choice for mission-critical applications like command centers, broadcasting, corporate boardrooms, education, and digital signage.
Key Features & Specifications
Ultra HD Video & Audio Management
-
4K Resolution Support: Delivers crisp, real-time $4K\subseteq60Hz$ ($3840\times2160$) or 1080p video streaming.
-
Flexible Broadcasting: Supports one-to-one (Unicast), one-to-many (Multicast), and many-to-many Group Broadcasting via IGMP-enabled switches.
-
Advanced Audio Routing: Comprehensive support for both HDMI and 3.5mm stereo audio, alongside HDMI ARC and SPDIF ARC (RX to TX).
KVM & Matrix Control
-
Seamless KVM Extension: Connect your keyboard, mouse, touch screen, or storage device at the Receiver side to fully control the remote PC.
-
Mouse Free-Flow: Intuitively navigate and control up to 4 screens seamlessly.
-
RS-232 Bridge: Integrated bi-directional RS-232 data transmission between PCs and displays.
Video-Wall Capabilities
-
Advanced Scaling: The built-in Encoder/Decoder scaling engine allows multiple receivers to be configured into custom video walls.
-
Display Rotation: Supports multi-angle screen rotations including 90°, 180°, and $270^{\circ}$.
Hardware & Management
-
Plug-and-Play: Pure hardware architecture requiring no additional software installations to run.
-
Easy Setup: Built-in HTTP interface for easy IP address management, naming, and configuration changes.
-
Industrial Design: Compact, durable black metal housing with built-in mounting holes.
-
Optional POE: Support for Power over Ethernet for streamlined, single-cable installations.
