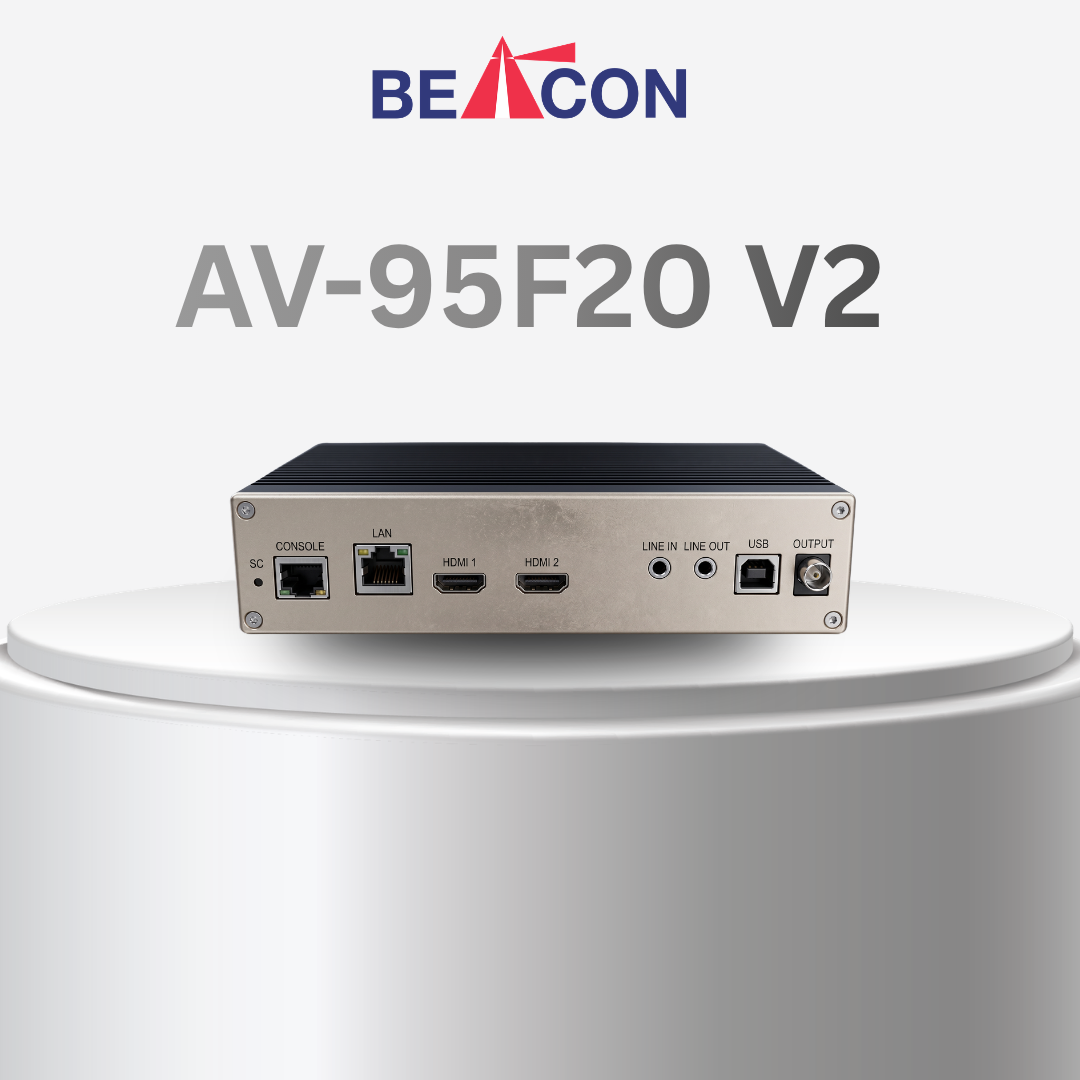

The BEACON AV-95F20 V2 system comprises the AV-95F20TL V2 Transmitter (TX) at the source side (PC, media player) and the AV-95F20R V2 Receiver (RX) at the display side (monitors, speakers, microphone, and USB peripherals). By converting input signals into standard IP packets, it supports highly flexible deployment methods, including One-to-One (Unicast), One-to-Many (Multicast), and Many-to-Many (Group Broadcasting) configurations via an IGMP-enabled Gigabit switch.
Equipped with a robust 4K2K Encoder/Decoder engine, this system allows multiple Receivers to be effortlessly configured into a custom Video-Wall setup, complete with 180° and 270° screen rotation capabilities. More detailed technical diagrams and configuration rules can be found by reviewing the official AV-95F20V2-20240827.pdf document.
Key Features
-
Ultra HD Resolution: Full support for crisp 1080p and 4K ($3840 \times 2160$ @30Hz) video broadcasting.
-
Full KVM Remote Control: Connect your keyboard, mouse, touchscreen, or external USB storage at the Receiver site to manage the host PC remotely.
-
Seamless Audio Integration: Supports both high-definition digital audio and standard 3.5mm stereo inputs/outputs for local speakers and microphones.
-
Bi-directional IR & RS-232: Pass remote control IR signals and serial data seamlessly between your source computers and display screens.
-
Management Software Included: Comes bundled with Connection Manager Software and Video-Wall Manager Software for hassle-free network routing and panel layout setup.
-
Industrial Build: Encased in a durable metal chassis and fully compliant with FCC, CE, and RoHS standards.
