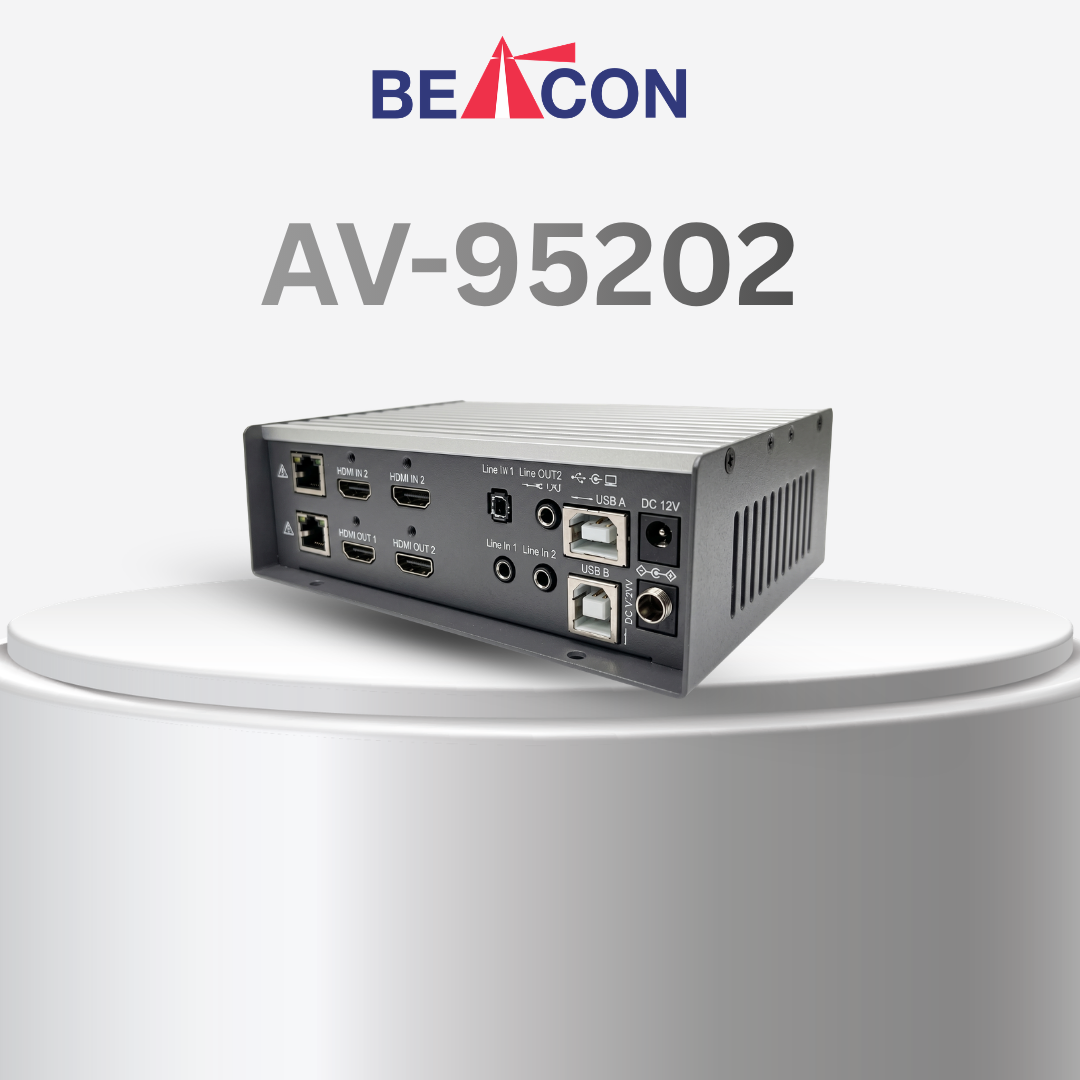

The AV-95202 by Beacon Links Inc. is a high-performance Dual Head 4K USB KVM Extender over Gigabit IP Ethernet. The complete system features the AV-95202T Dual Head Transmitter and the AV-95202R Dual Head Receiver. The transmitter connects directly to your PC’s dual HD, audio, and USB outputs, converting and sending them over standard IP-based Gigabit Ethernet to the receiver. The receiver then converts the signals back to connect two displays, speakers, microphones, and various USB devices. This makes it an ideal solution for Central Control Room Dual Head KVM setups.
Key Features
-
Dual Display Support: Seamlessly handles a single PC with dual HD outputs, 3.5mm audio, and USB.
-
Ultra HD Resolution: Supports sharp dual HD resolutions at 4K@30Hz or 1920×1200@60Hz.
-
Advanced Management: Features a Web GUI for easy configuration and an OSD Menu for transmitter connection and Push Video-Wall options.
-
Flexible USB Modes: Supports Virtual USB HUB in either Exclusive or Sharing modes, alongside standard USB 2.0 extension for keyboards, mice, touch screens, and storage.
-
Comprehensive Audio: Supports both HD embedded audio and 3.5mm stereo audio/microphone connectivity.
-
Plug-and-Play Design: Pure hardware architecture means no software installation is required.
-
Certified Reliability: Fully compliant with FCC, CE, and RoHS standards.
Technical Specifications
| Parameter | Specification |
| Model |
AV-95202TL (Transmitter) / AV-95202R (Receiver) |
| HD Input |
2 (Transmitter) / N/A (Receiver) |
| HD Output |
2 local loop-out (Transmitter) / 2 (Receiver) |
| USB Connectors |
2 x USB-B to PC (Transmitter) / 2 x (4 x USB-A) (Receiver) |
| Audio Connectors |
2 x Line-In & 2 x Line-Out (Transmitter) / 2 x MIC-In & 2 x Line-Out (Receiver) |
| System Port |
2x RJ45 Gigabit Ethernet |
| Supported Resolutions |
4K (3840×2160@30Hz), 1080p, or 1920X1200@60Hz |
| Inter-connect Cable |
UTP CAT 6 / CAT 7 up to 150 meters |
| Power Supply |
DC 12V 5A / Supports Power 9–36V |
| Operating Temperature |
0–70°C |
| Storage Temperature |
-20–85°C |
| Humidity |
0–80% Non-condensing |
| Material |
Metal (Black) |
| Dimensions |
170 x 150 x 50 mm |
| Weight |
1100 g per unit |
