Beacon DV-9525 HD DVI VGA USB KVM Extender over IP Video-Wall

Beacon DV-9525: High-Performance KVM Extender over IP and Video-Wall Solution

The Beacon DV-9525 offers a versatile and scalable architecture for transmitting high-definition video, audio, and control signals over standard Gigabit IP Ethernet networks. The system consists of the DV-9525T Transmitter (TX), which connects to your PC or media source, and the DV-9525R Receiver (RX), which connects to your display monitors, speakers, microphones, and USB peripherals. Utilizing standard IP technology, the transmitter converts incoming signals into IP packets for flexible Unicast (one-to-one) or Multicast (one-to-many and many-to-many) routing through an Ethernet switch.

Key Features and Capabilities:

• High-Resolution Support: Delivers crisp visual quality supporting resolutions up to 1080p or 1920×1200 @ 60Hz. The transmitter handles DVI/HD signal input while the receiver supports DVI/HD/VGA signal output.

• Integrated Video-Wall Scaler: Built-in hardware scalers inside the receiver units allow systems to be deployed as dynamic Video-Wall displays featuring 180 and 270-degree screen rotation.

• Comprehensive KVM Remote Control: Connect keyboards, mice, touch screens, or storage devices to the receiver site to seamlessly manage the host PC located at the transmitter site.

• Advanced Signal Extension: Supports 3.5mm stereo audio (line-in, mic-in, and line-out), IR remote control pass-through for external devices, and an RS-232 data bridge to send control data between PCs and displays.

• Plug-and-Play Pure Hardware Design: Operates directly out of the box without requiring any software installations on the host computers. Features a built-in HTTP interface for easy configuration of IP addresses, device names, and multi/unicast baud rates.

• Management Software Included: Bundled with dedicated Connection Manager Software for quick transmitter/receiver matrix routing and Video-Wall Manager Software for advanced operational configuration.

• Robust Technical Compliance: Built inside a durable black metal housing with mounting holes, and is fully FCC, CE, and RoHS compliant.

Technical Specifications:

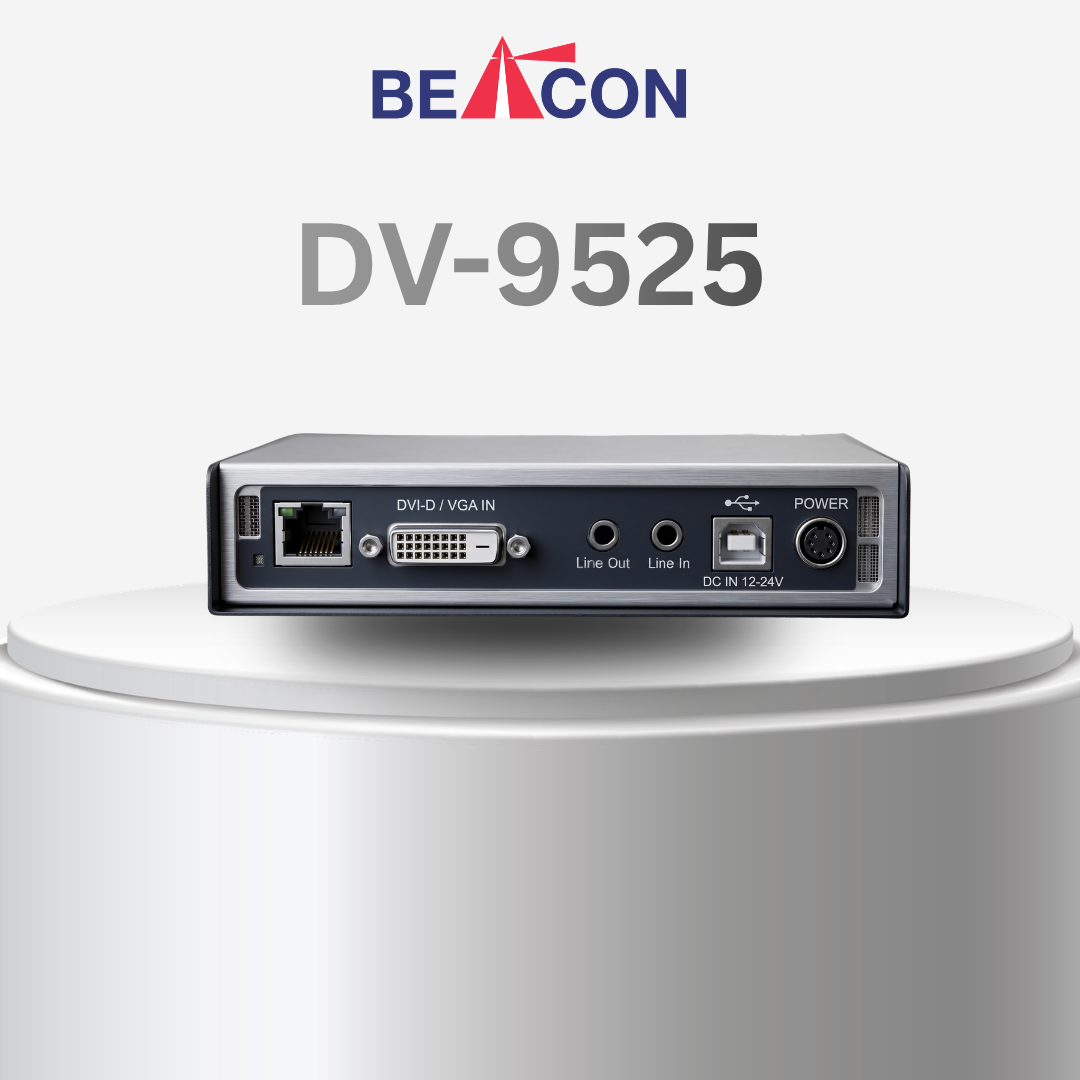

• Transmitter Interfaces (DV-9525T): 1 x DVI-I input, 1 x USB-B upstream port, 1 x 3.5mm Line-In, 1 x IR Blaster, 1 x RS-232, 1 x RJ45 Gigabit network port.

• Receiver Interfaces (DV-9525R): 1 x DVI-I output, 4 x USB-A ports (2 x USB 2.0 and 2 x USB 1.1), 1 x 3.5mm Mic-In, 1 x 3.5mm Line-Out, 1 x IR Receiver, 1 x RS-232, 1 x RJ45 Gigabit network port.

• Transmission Medium: Standard CAT 6 or CAT 7 cabling up to 100 meters directly, or further when integrated with standard Gigabit Ethernet Switches.

• Power Consumption: DC 9 to 32V (20W for Transmitter / 15W for Receiver).

• Dimensions and Weight: 150x110x28 mm per unit; Transmitter weighs 453g and Receiver weighs 458g.

Target Applications: This system is ideal for AV broadcasting, secure KVM matrix control rooms, command centers, corporate boardrooms, courtrooms, medical facilities, military installations, and educational digital signage environments. For step-by-step connection layouts, see the schematic diagrams in the file DV-9525 B20240513-1.pdf.
