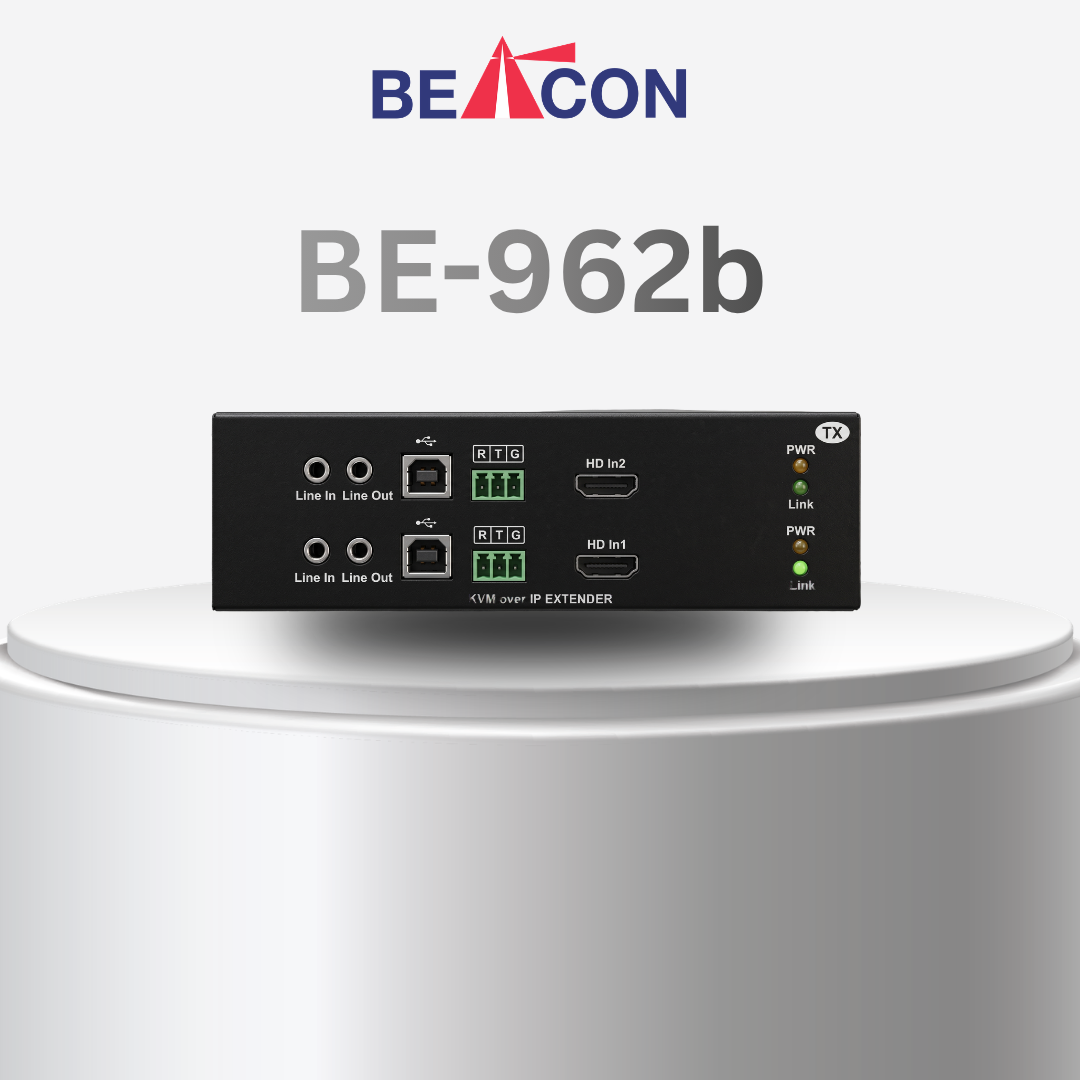

BEACON BE-962b Dual Head 4K KVM Extender over IP / UTP / SFP Fiber

## BEACON BE-962b IP-Based Dual Head HD KVM Extender over UTP & SFP Fiber

The **BEACON BE-962b** is a premium, IP Unicast-based solution engineered to extend **Dual Head 4K30 / 1920×1200@60Hz** high-definition displays with exceptionally low latency. Equipped with robust USB connectivity, bi-directional 3.5mm audio, and 2-way RS-232 serial pass-through, this extender is the ultimate choice for control rooms, data centers, broadcast studios, and secure industrial environments.

Utilizing a visually lossless video compression algorithm over a physical Gigabit Ethernet transceiver layer, the BE-962b delivers razor-sharp video quality and rock-solid, stable performance even in highly noisy electrical environments[cite: 1].

### Flexible Long-Distance Transmission
* **Via CAT6/7 Cable:** Extends up to 150 Meters at 1080p, or up to 100 Meters at 4K30 resolution[cite: 1].
* **Via SFP Fiber Module:** Extends up to 10 KM using Single-Mode (SM) SFP, or up to 300 Meters using Multi-Mode (MM) SFP[cite: 1].

—

### Key Features of BEACON BE-962b:
* **Dual Head Ultra HD:** Supports dual-screen setups up to 4K30 and 1920×1200@60Hz with ultra-low latency[cite: 1].
* **Dual Interface Support:** Built-in RJ-45 and SFP connection ports, compatible with standard physical Gigabit Ethernet switches[cite: 1].
* **Abundant USB Ports:** Features 6 x USB 2.0 ports at the receiver site to support keyboards, mice, touchscreens, and storage devices[cite: 1].
* **Bi-directional Audio:** Supports simultaneous 3.5mm speaker output and microphone input at the Receiver site[cite: 1].
* **Auto EDID Management:** Automatically copies and configures EDID data from the connected RX monitor[cite: 1].
* **True Plug-and-Play:** Pure hardware architecture ensures instant deployment with no drivers or software required[cite: 1].
* **Industrial Build:** Rugged metal housing featuring standard 100×100 VESA mount support[cite: 1].

—

Technical Specifications:
Model Configuration: BE-962bT (Transmitter) & BE-962bR (Receiver)]
* **Video Interfaces:** 2 x HDMI 1.4 Input (Tx) / 2 x HDMI 1.4 Output (Rx)
* **USB Ports:** 2 x USB-B upstream to PC (Tx) / 6 x USB-A downstream to devices (Rx)[cite: 1]
* **Audio Connectors:** 2 x Line-In & 2x Line-Out (Tx) / 2 x Line-Out & 2x Mic-In (Rx)[cite: 1]
* **System/Inter-connect Ports:** 2 x RJ45 and 2 x SFP per unit[cite: 1]
* **Serial Control:** 3-pin RS-232 terminal connector (Maximum baud rate: 115200 bps)[cite: 1]
* **Power Supply:** DC 12V[cite: 1]
* **Physical Dimensions (L x W x H):**
* Transmitter (Tx): 438 x 85 x 44 mm[cite: 1]
* Receiver (Rx): 240 x 85 x 48 mm[cite: 1]
