BEACON BE-961b IP based HDMI with USB and Audio KVM Extender over CAT6 UTP and SFP Fiber

BEACON BE-961b

IP based HDMI with USB and Audio KVM Extender over CAT6 UTP and SFP Fiber

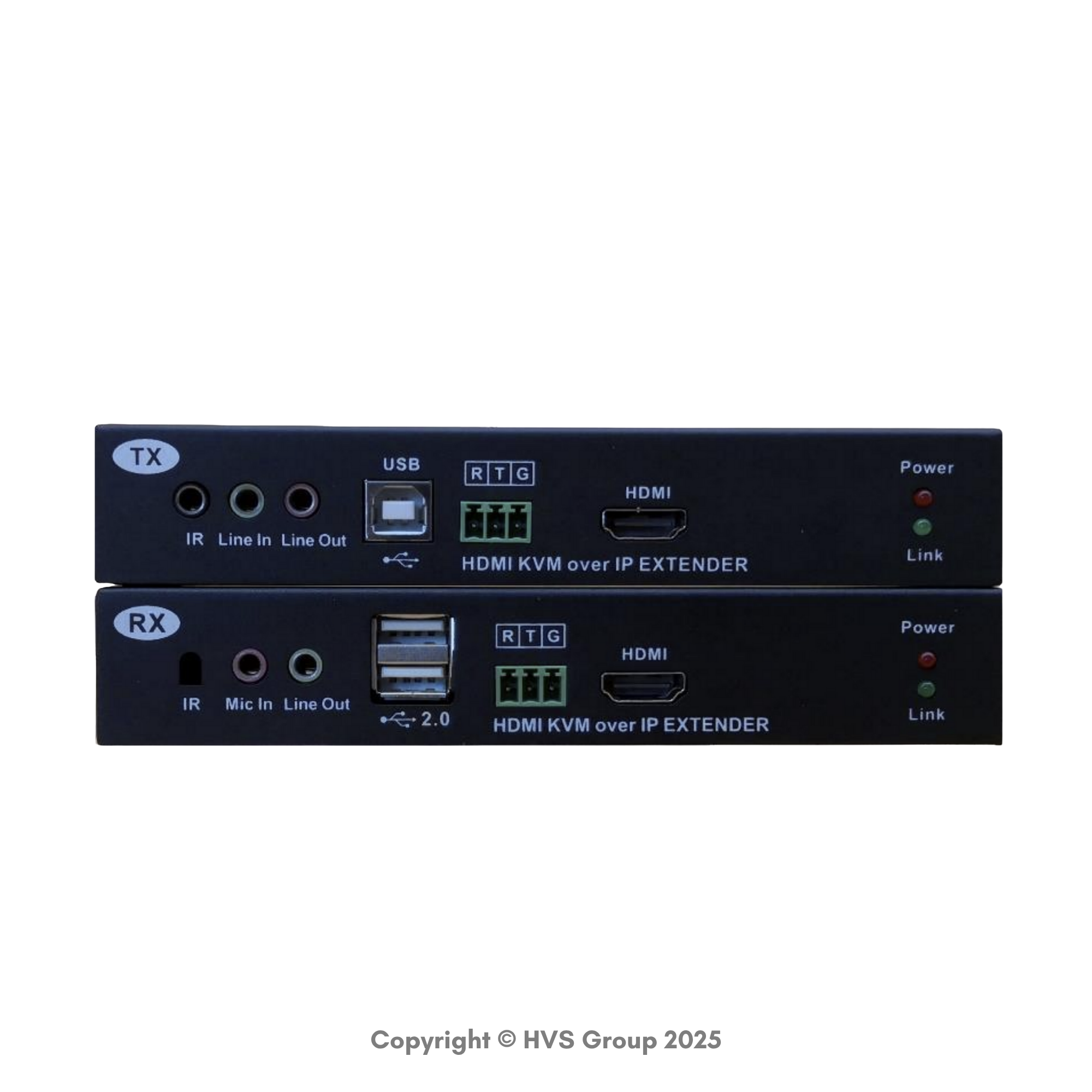

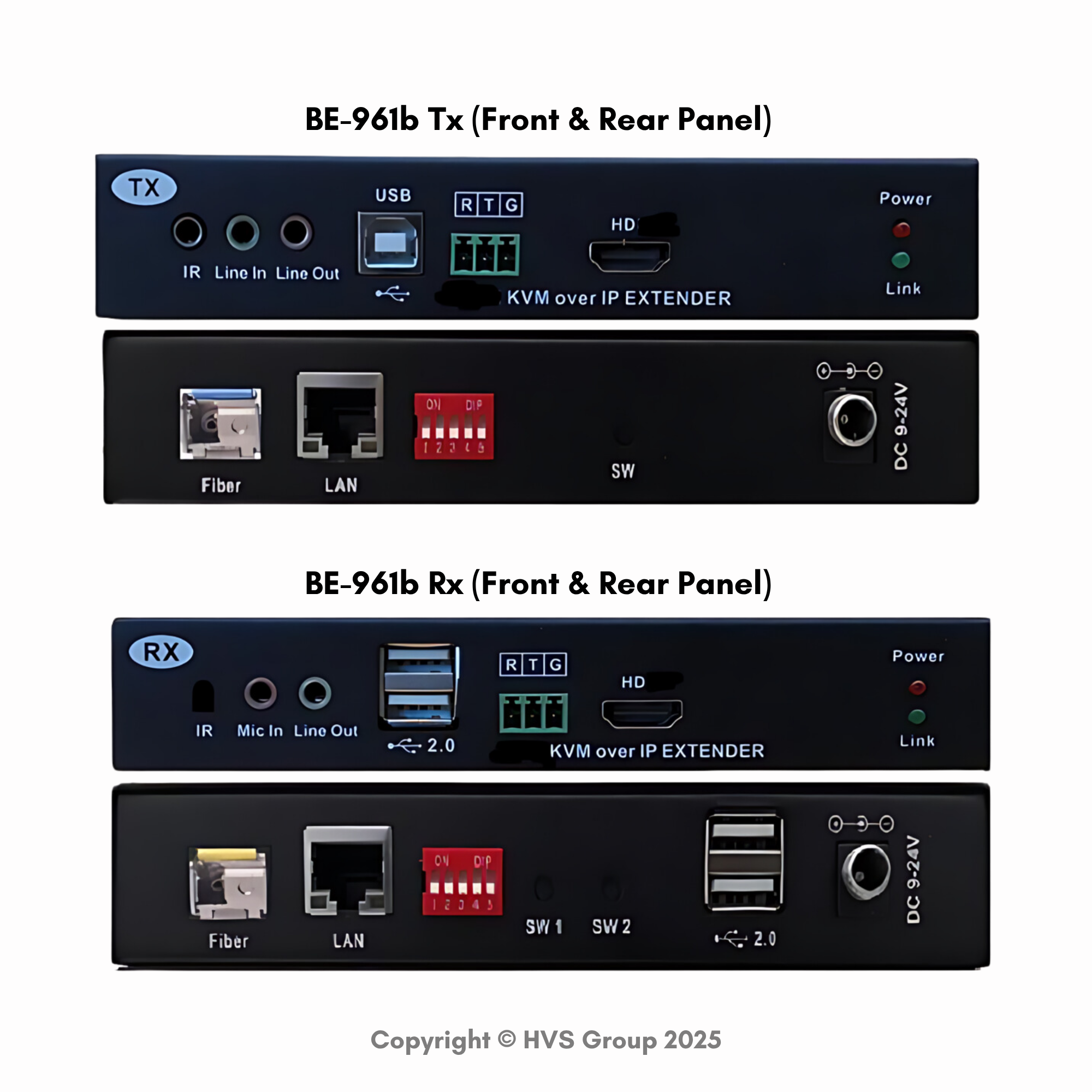

The BE-961b is a professional-grade HDMI KVM extender that enables long-distance transmission of 4K@30Hz video, USB, audio, and RS-232 over IP via a single CAT6/7 cable or SFP fiber. It consists of a transmitter and receiver pair and supports both RJ-45 and SFP interfaces, allowing flexible deployment across copper or fiber infrastructures.

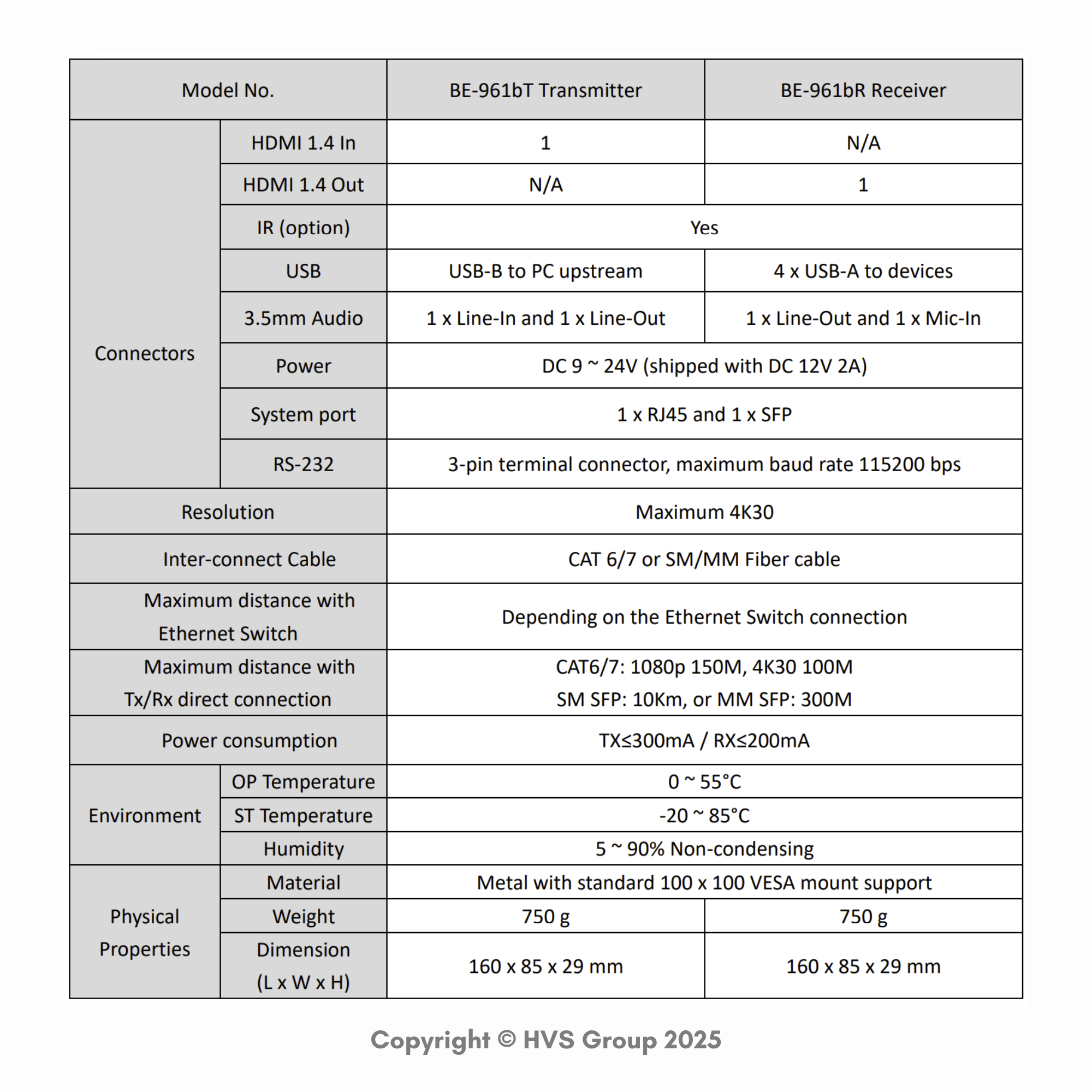

Designed with a visually lossless video compression algorithm and based on gigabit Ethernet technology, the BE-961b delivers high-quality, low-latency AV transmission in demanding environments. It supports HDMI resolutions up to 3840×2160@30Hz and transmits over CAT6 up to 100M (4K) or 150M (1080p). With fiber SFP modules, it reaches 10KM on single-mode or 300M on multi-mode fiber.

The receiver features 4 USB 2.0 ports for keyboard, mouse, touchscreen, or storage devices, along with bi-directional 3.5mm audio (mic and line-out) for remote audio communication. RS-232 support is included for serial control integration.

The BE-961b is a fully plug-and-play hardware solution—no software installation required. Its compact metal design includes VESA mounting, making it ideal for applications such as control rooms, digital signage, industrial automation, and AV-over-IP installations.
