BEACON DP-961b
IP based DisplayPort with Audio USB KVM Extender over UTP and SFP Fiber
The DP-961b is a DisplayPort KVM extender system designed for transmitting high-resolution AV and control signals across IP networks. It supports DisplayPort 1.2 video at up to 4K@30Hz, USB 2.0, bi-directional 3.5mm analog audio (mic/speaker), and RS-232 serial communication over a single CAT6 cable or SFP fiber.

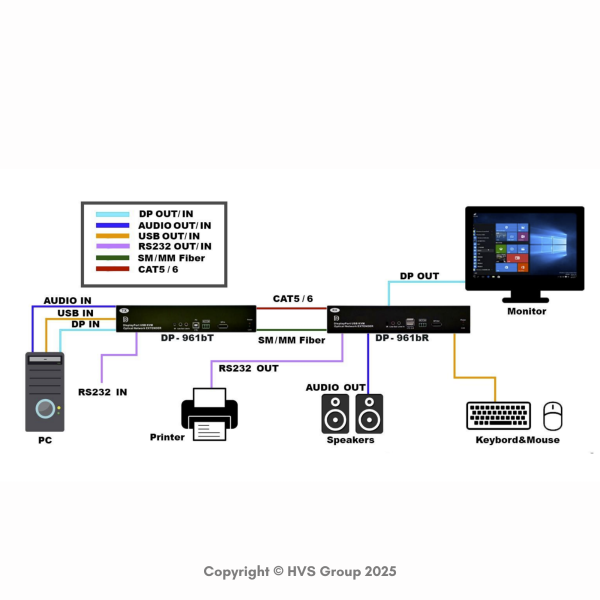

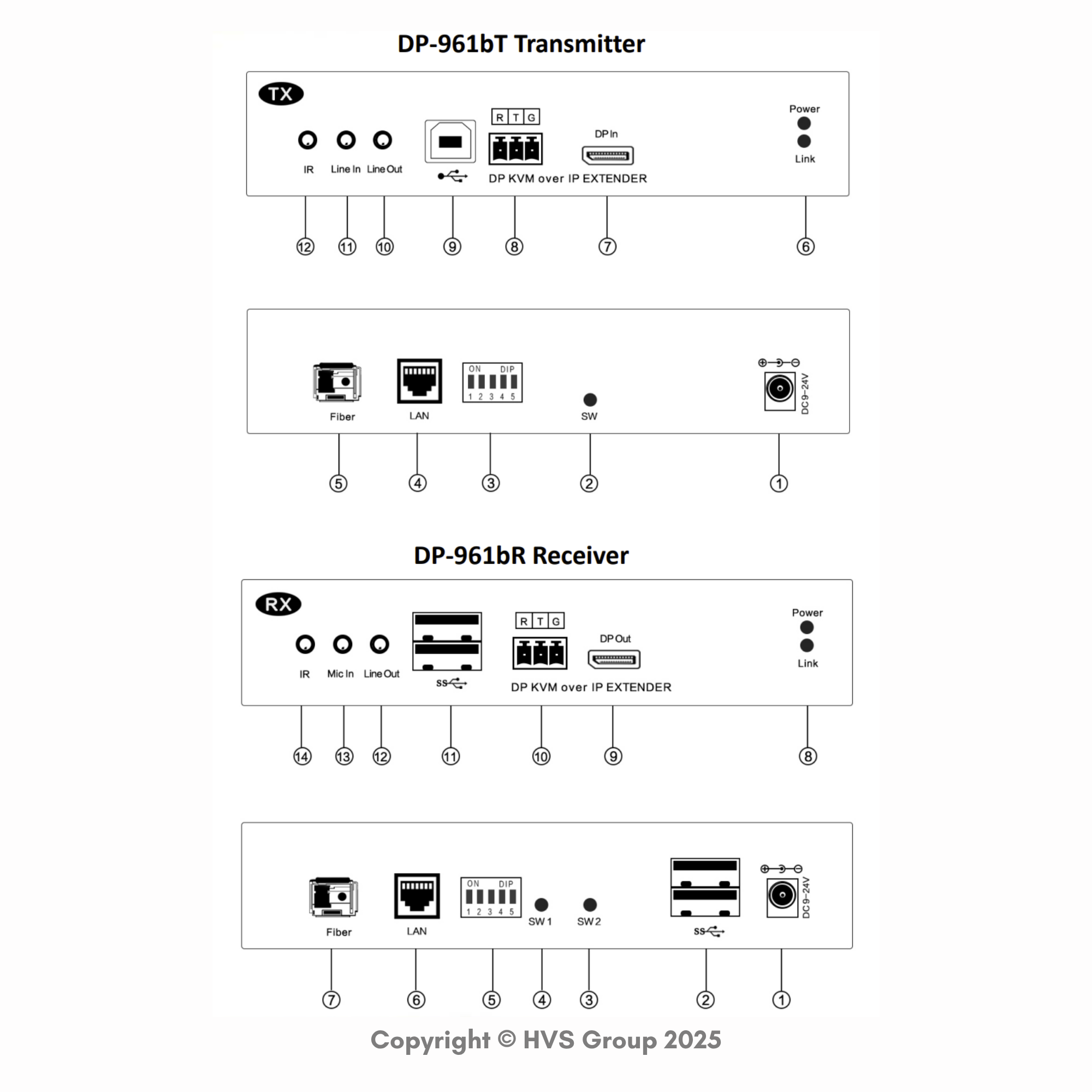

The system includes a transmitter (DP-961bT) and a receiver (DP-961bR). Featuring both RJ-45 and SFP ports, it supports up to 100M (4K) / 150M (1080p) via CAT6/7, or 10KM via single-mode fiber (300M via multi-mode). It uses visually lossless video compression to ensure crystal-clear image quality and low-latency performance.
With four USB 2.0 ports at the receiver, the DP-961b supports keyboard, mouse, touchscreen, or storage devices. It’s a plug-and-play solution with automatic EDID handling, housed in a durable metal enclosure with VESA mounting. Ideal for AV control rooms, medical imaging, industrial automation, and broadcast KVM applications.
