AV-9530(RJ-45+SFP)
4K@60 KVM over IP Extender with Video-Wall

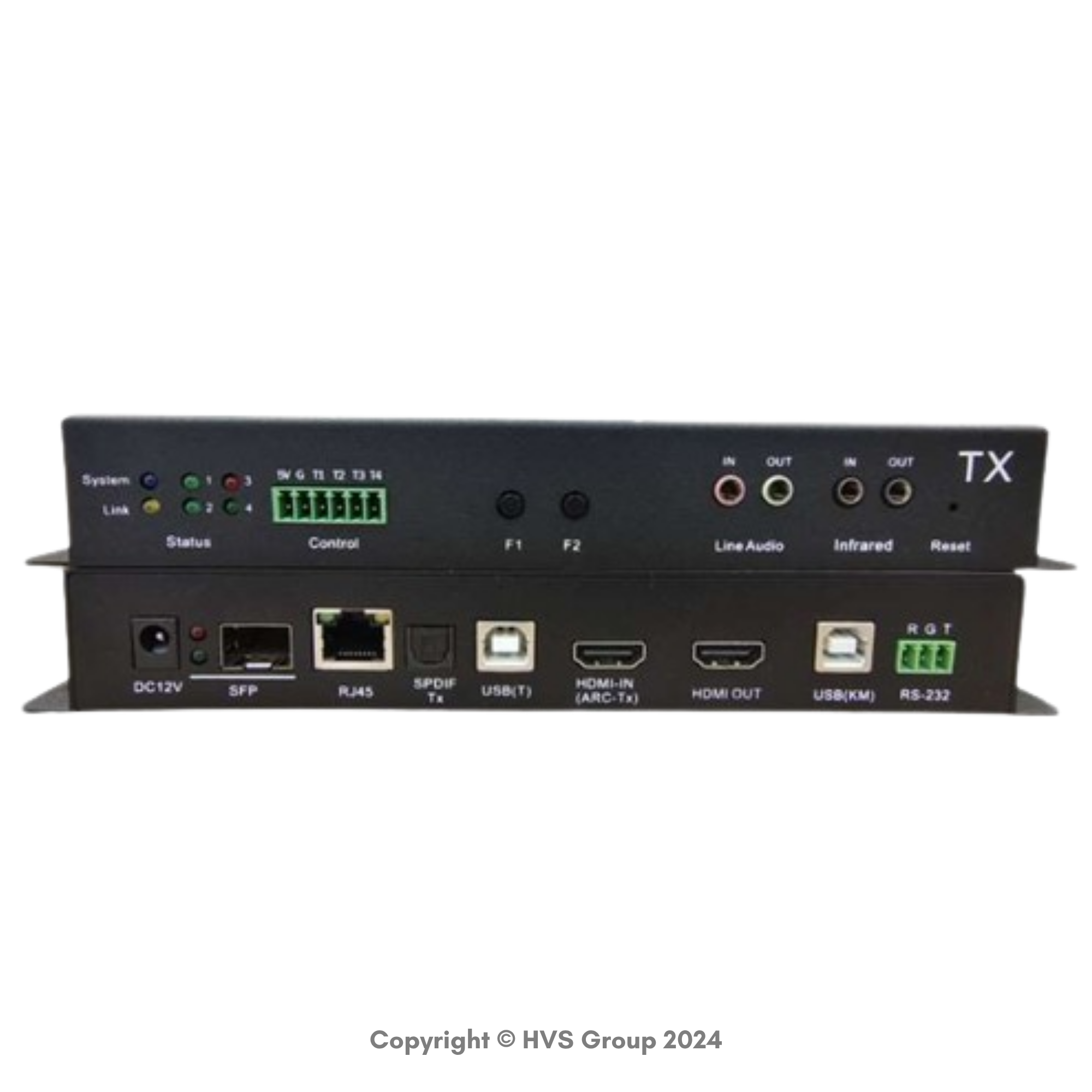

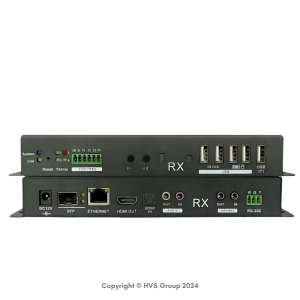

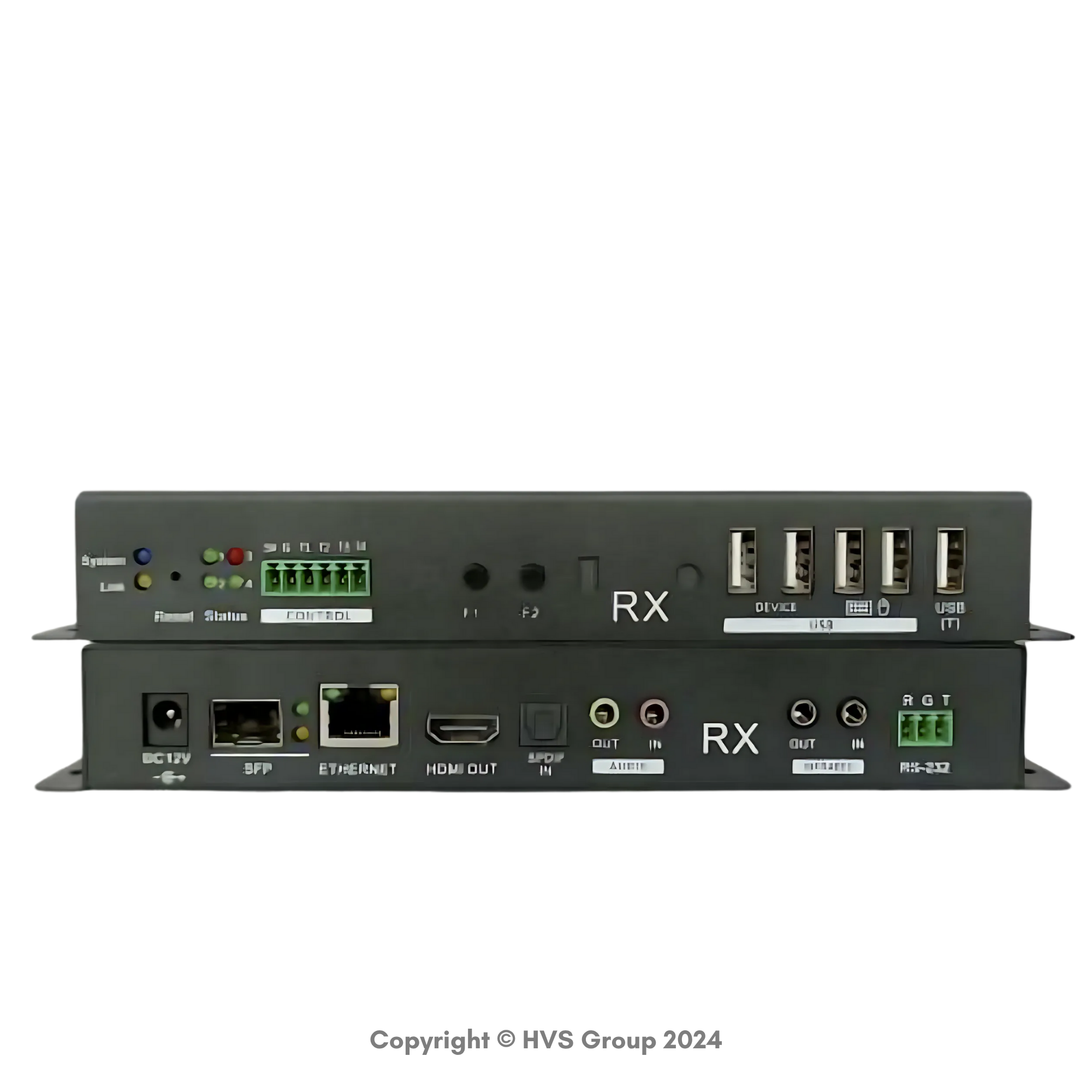

The AV-9530 is an ideal solution for 4K@60 KVM over IP with USB/RS232 over Gigabit Ethernet or Fiber. The system includes the AV-9530T Transmitter (TX) and AV-9530R Receiver (RX). The TX connects to a PC or Blu-ray player as the 4K source, while the RX connects to the display, speakers, microphone, and USB devices.
Based on standard IP technology, the TX converts input signals (video, audio, USB, etc.) into IP packets and transmits them via multicast/unicast through a Gigabit Ethernet switch. The RX receives these IP packets, converts them back into video, audio, USB, etc., and outputs them to the appropriate devices.

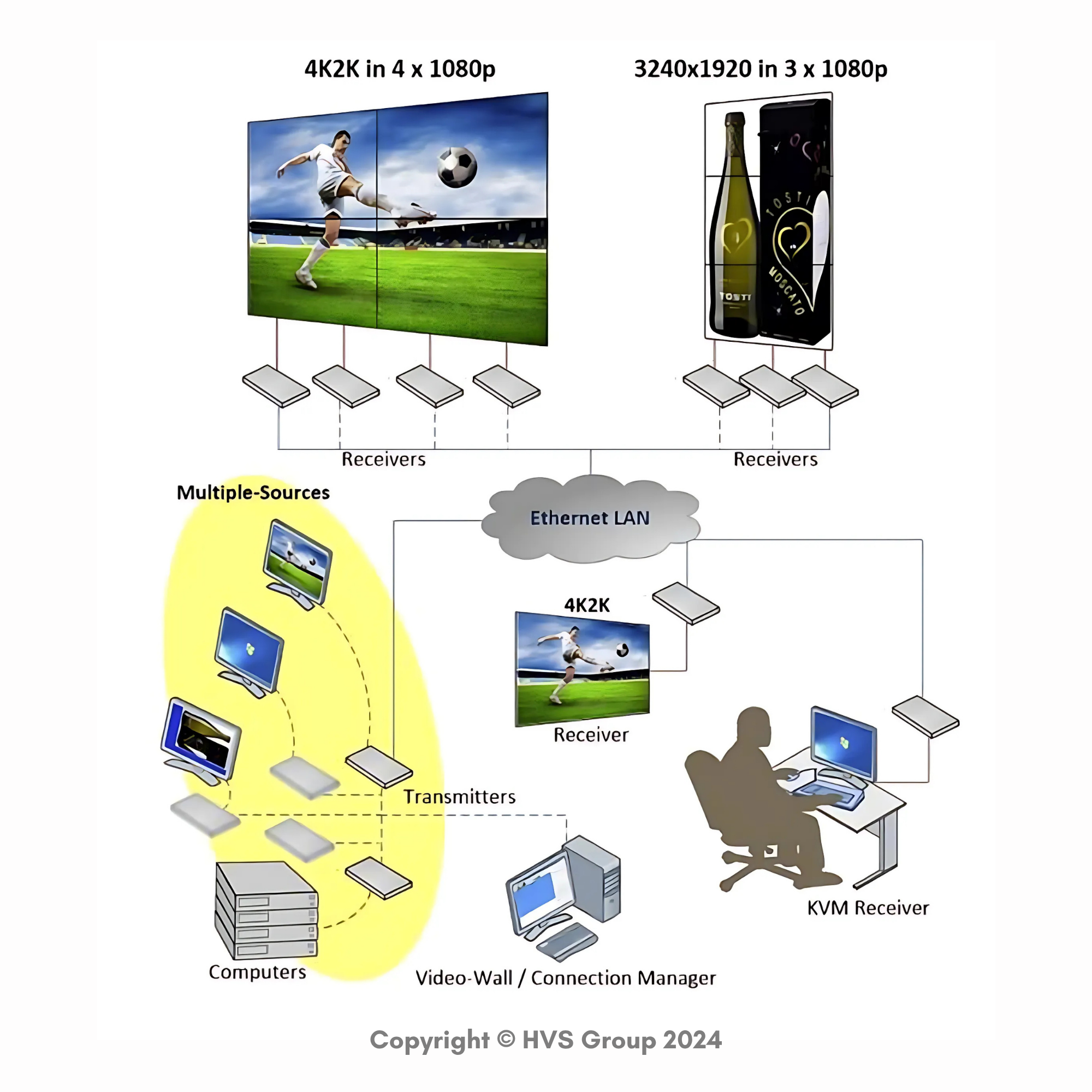

Equipped with a 4K2K Encoder/Decoder engine and scaling function, multiple RX units can be flexibly configured for video wall displays. This solution is perfect for AV broadcasting, KVM matrix control, and video wall applications such as informational displays, entertainment venues, boardrooms, courtrooms, medical facilities, military environments, and educational digital signage.
