BEACON AV-9520 PoE

with PoE 4K HDMI KVM Extender over IP with IEEE802.3af safety isolation PoE

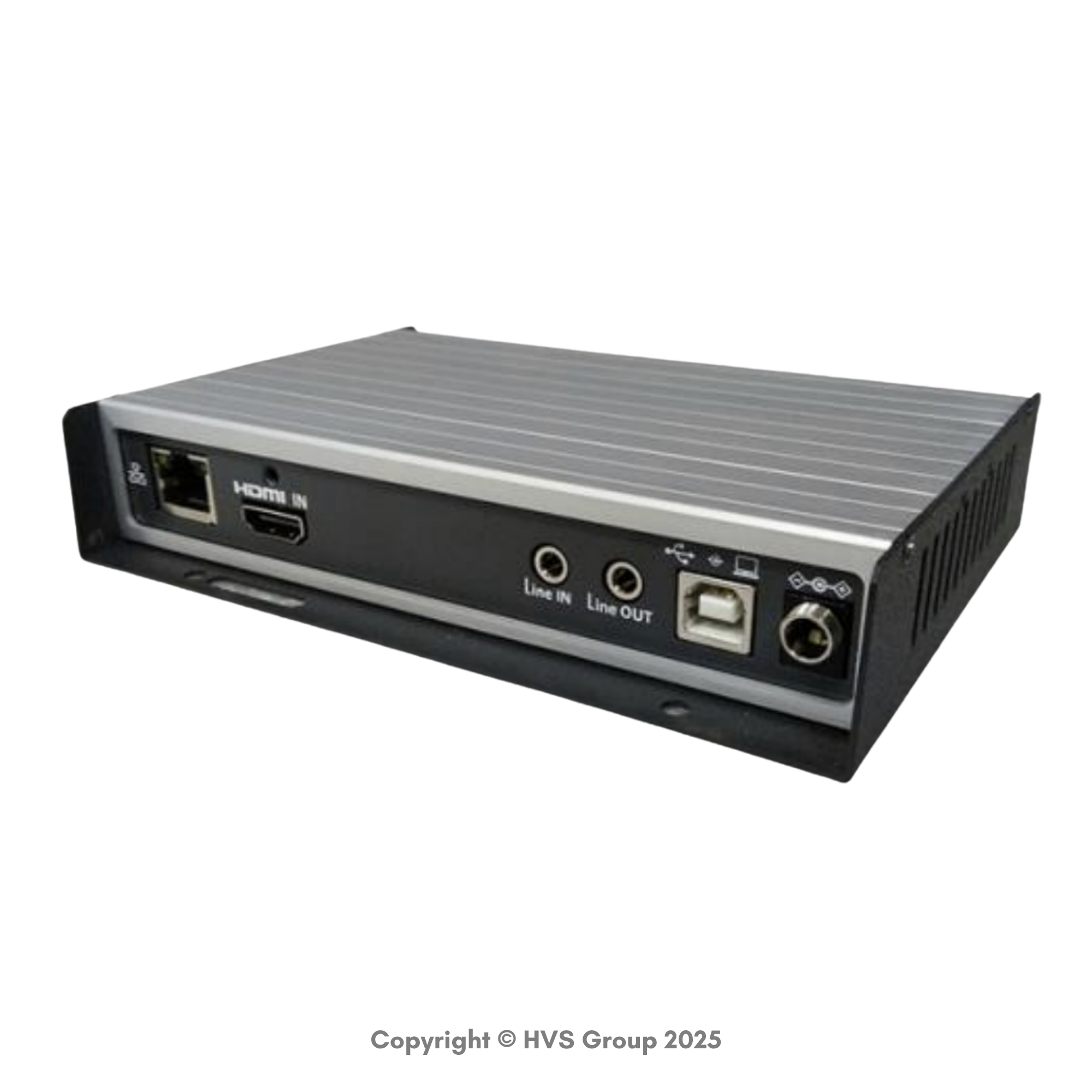

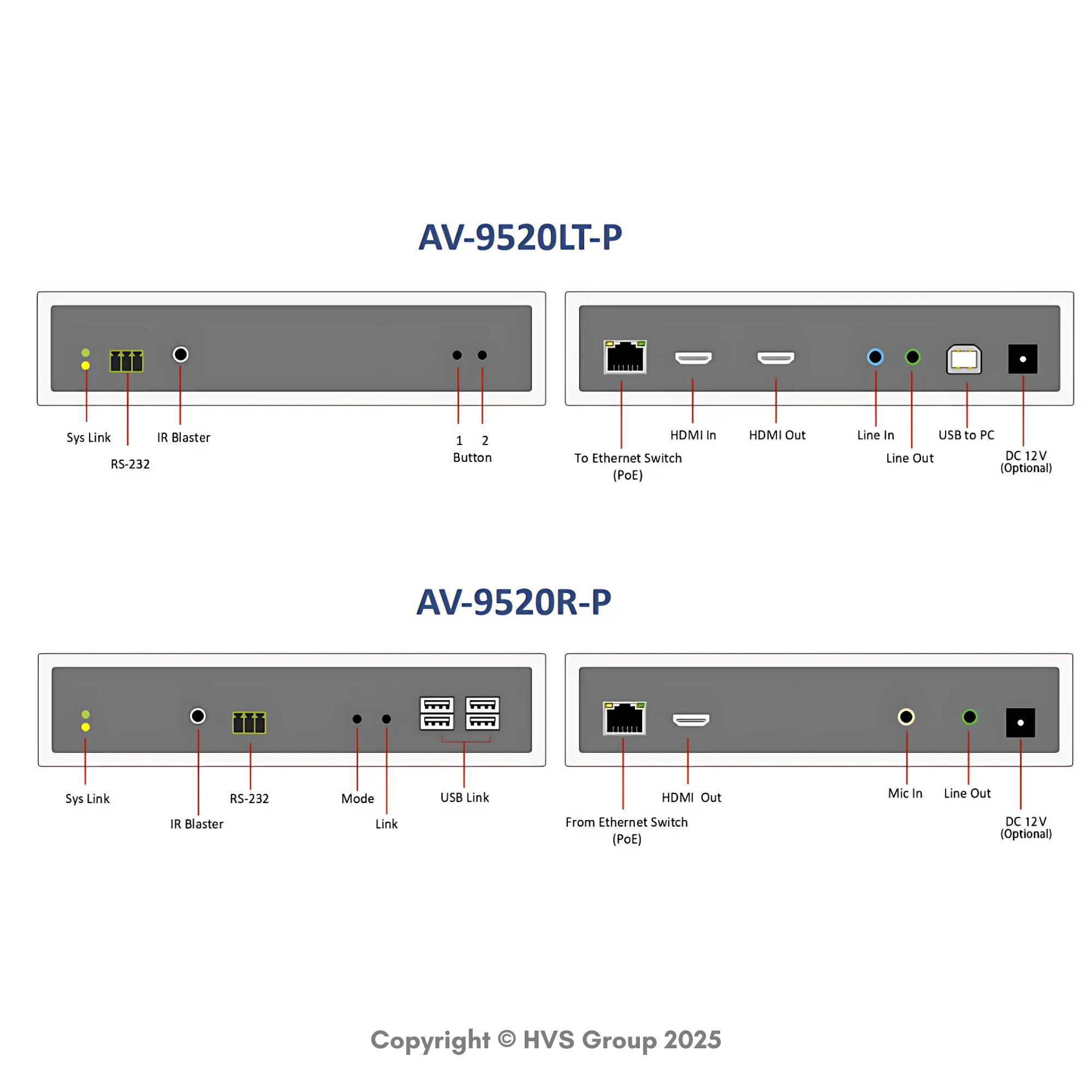

The AV-9520 PoE system includes the AV-9520LT-P Transmitter (Tx) and AV-9520R-P Receiver (Rx), designed to transmit 4K HDMI, audio, USB, IR, and RS-232 signals over IP networks.

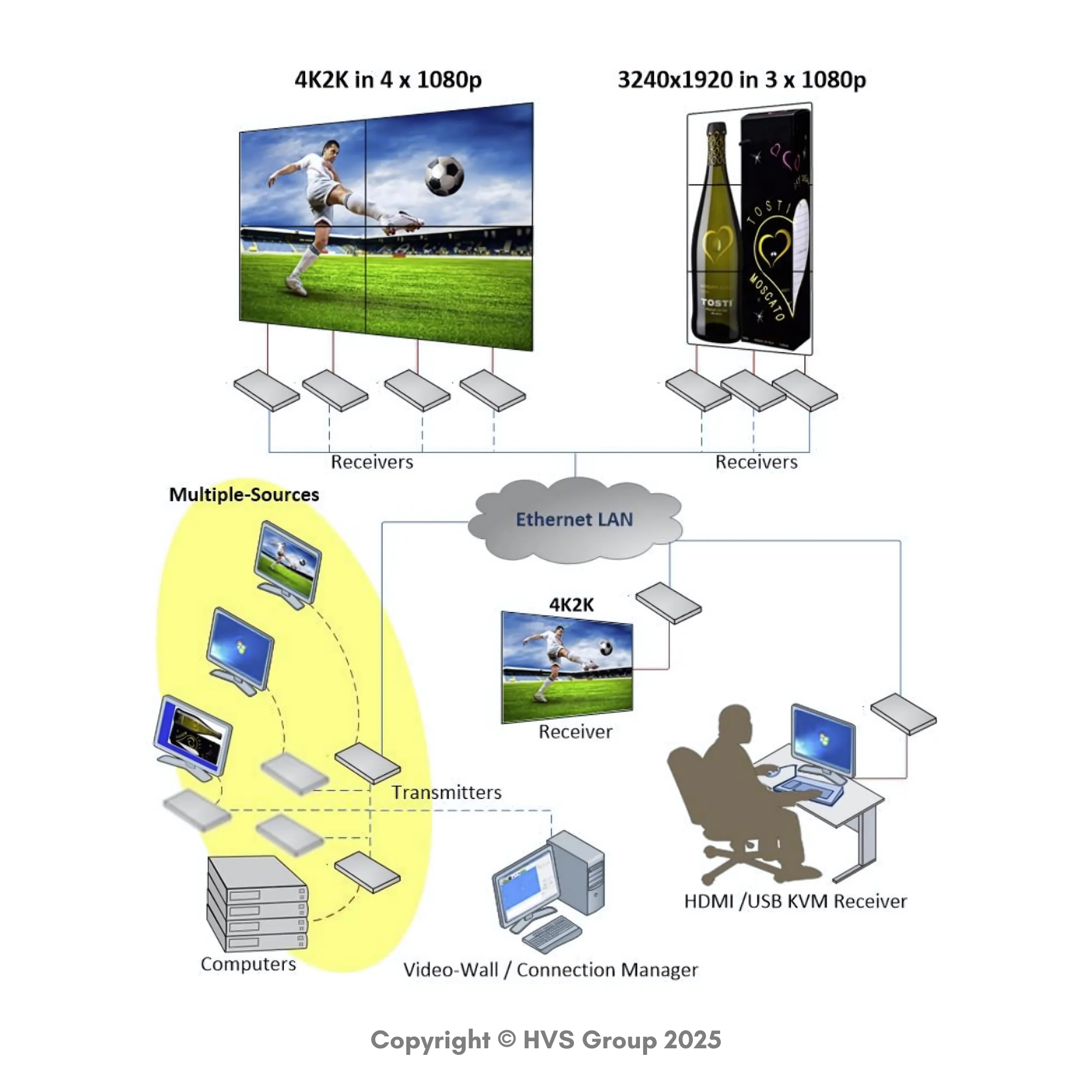

The transmitter connects to a source device (such as a PC or Blu-ray player), and the receiver connects to displays, speakers, microphones, and USB peripherals. Using IP technology, the transmitter converts input signals into IP packets and streams them via a Gigabit Ethernet switch in either multicast or unicast mode. The receiver then converts the data back into HDMI, audio, and USB signals for output.

Built-in video scaling, image rotation, and video wall support allow the AV-9520 to meet demanding AV distribution needs. It’s perfect for applications in AV broadcasting, control centers, KVM matrix switching, video walls, conference rooms, courtrooms, military, education, and digital signage.
