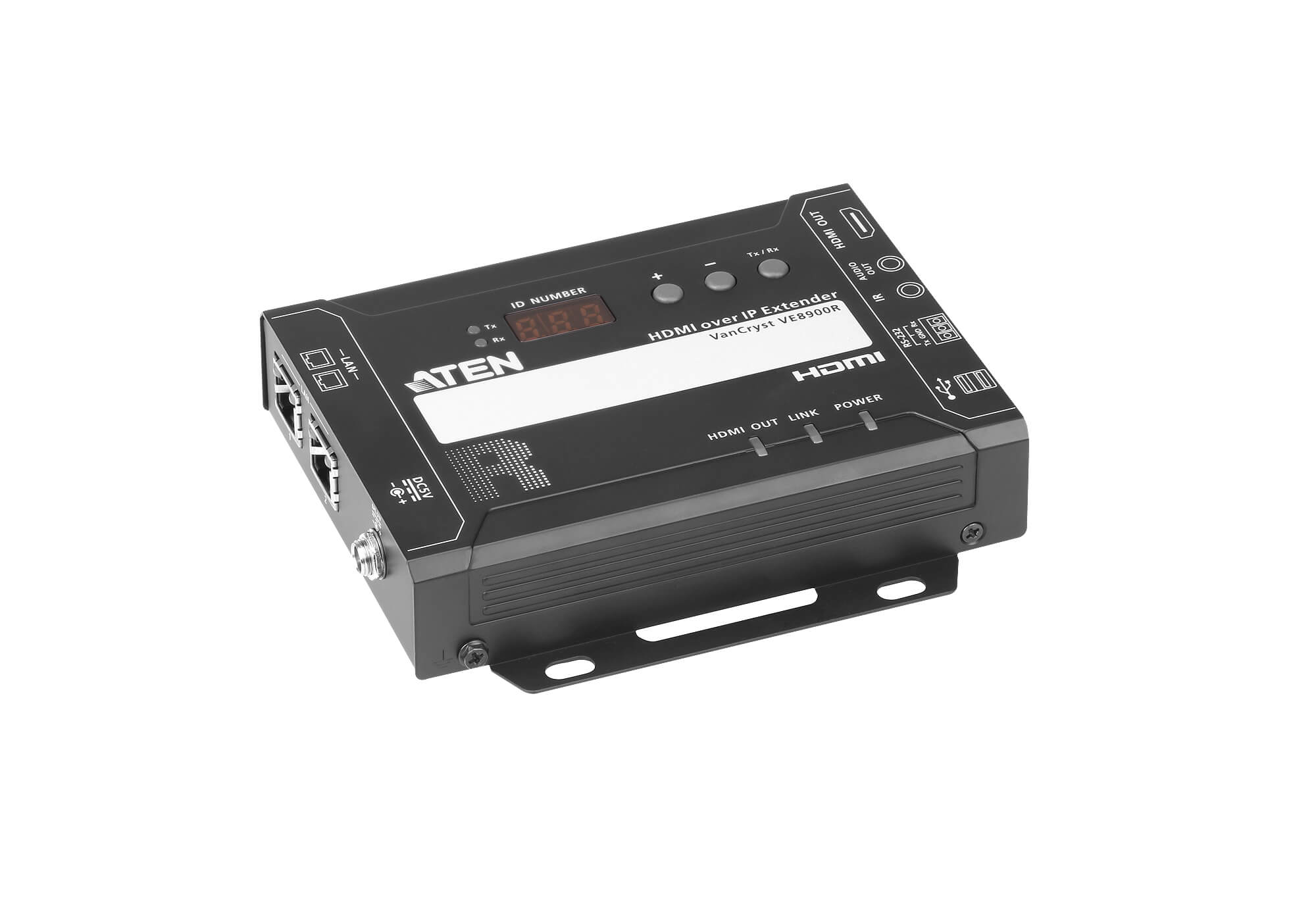

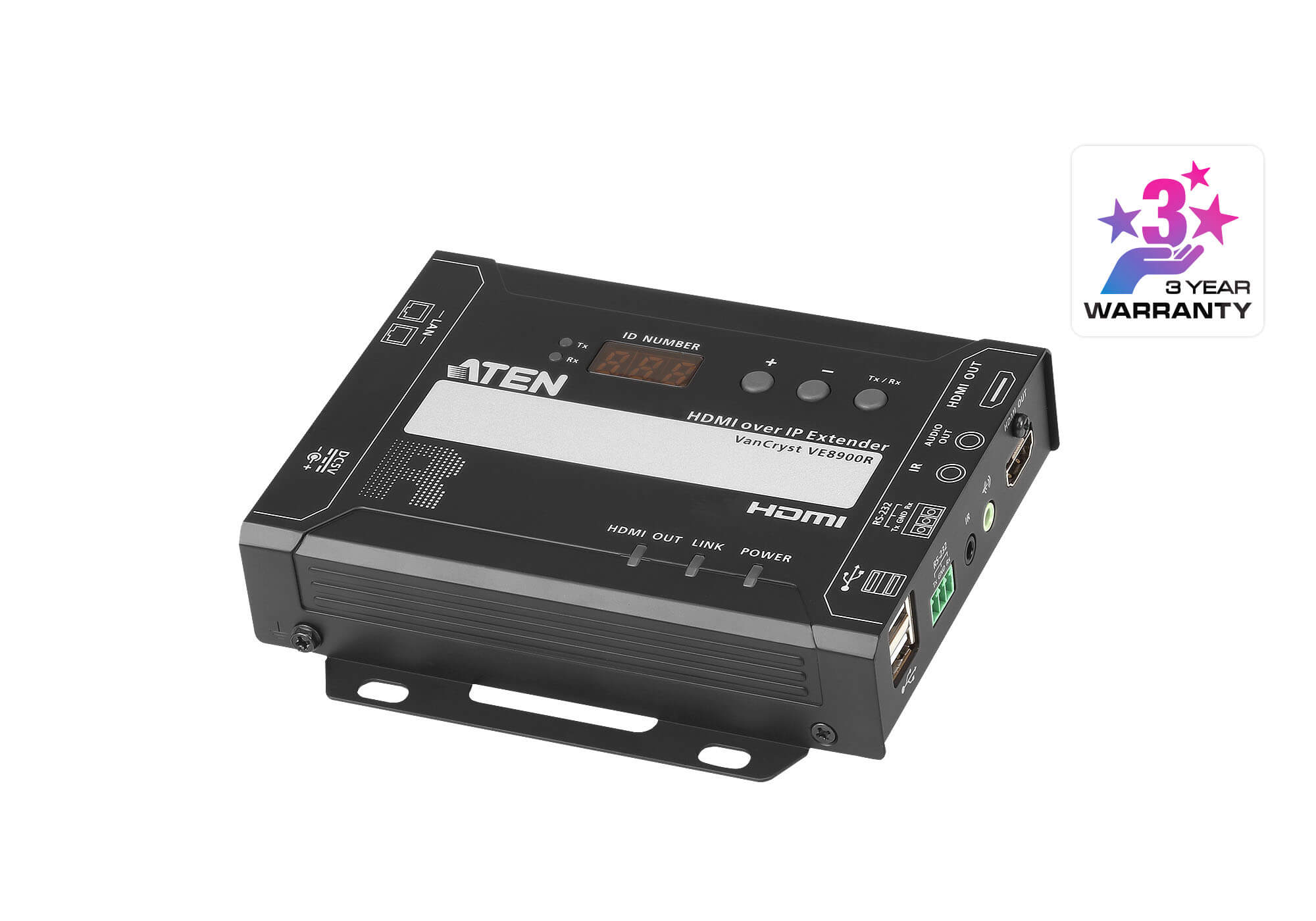

ATEN VE8900R
HDMI over IP Receiver (1080p@100m)

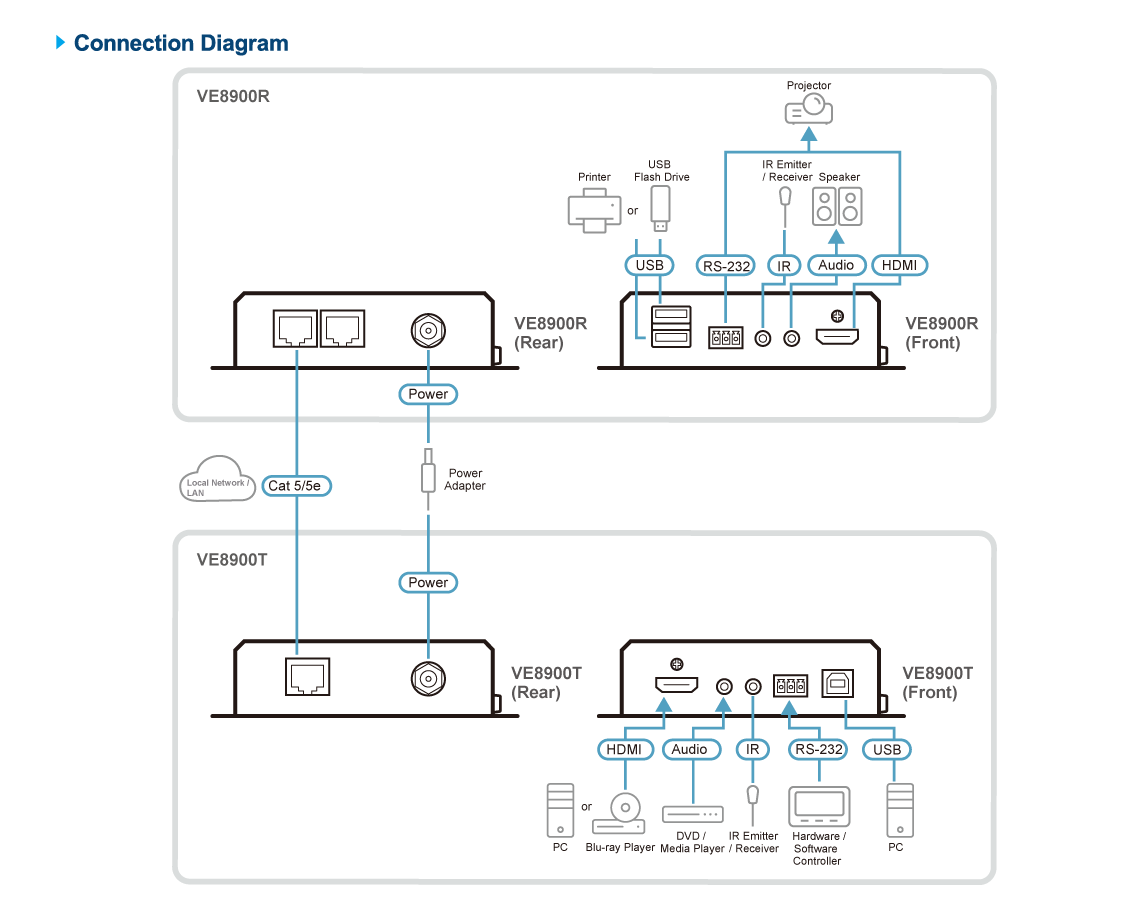

The ATEN VE8900R Video over IP Receiver delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:
- Limitless scalability and flexibility
- No complicated IP setup
- No additional server PCs or software required

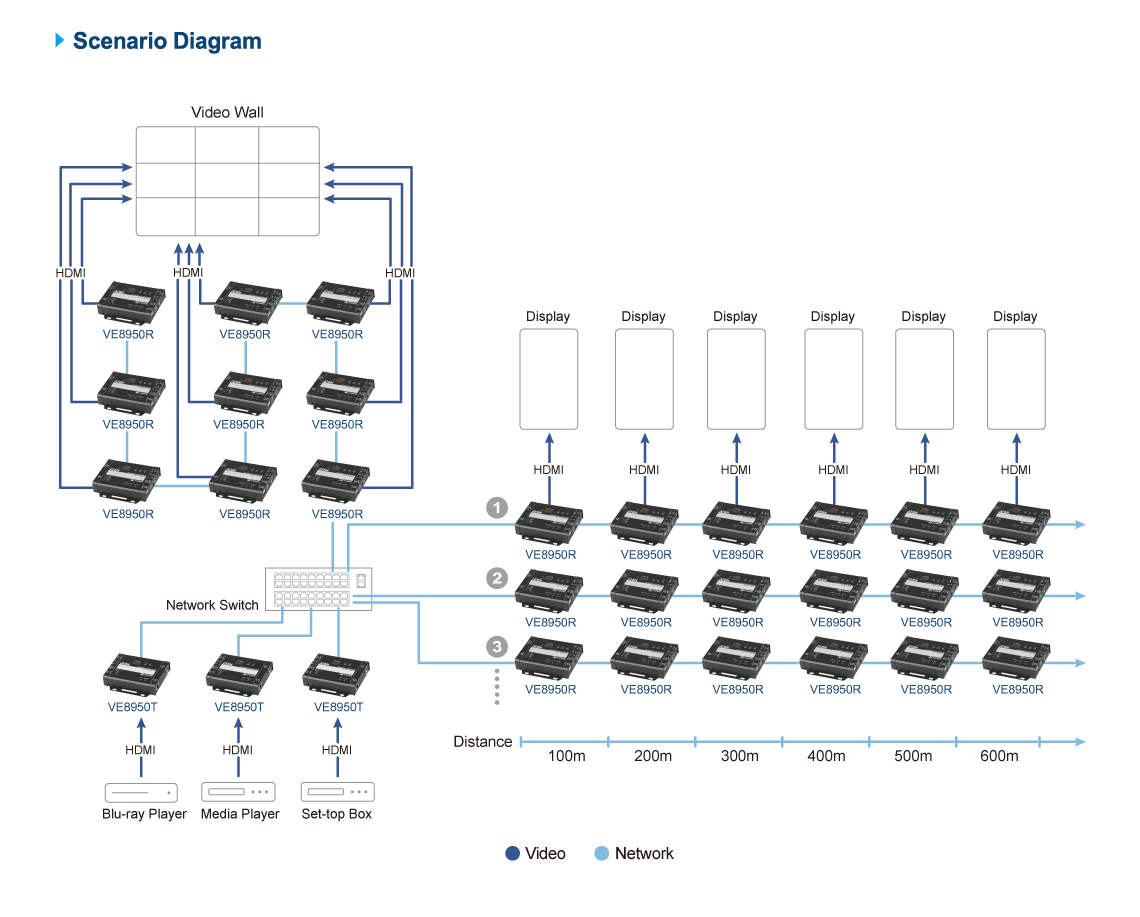

- Go further for less with daisy chaining
Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers
*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide: https://assets.aten.com/product/manual/Implementation_Guide.pdf
Specifications
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 3 m (2L-7D03H) |
| Video | |
| Max. Data Rate | Average: 150 ~ 500Mbps |
| Compliance | HDMI HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080p@100m (Cat 5e/6, point to point) |
| Audio | |

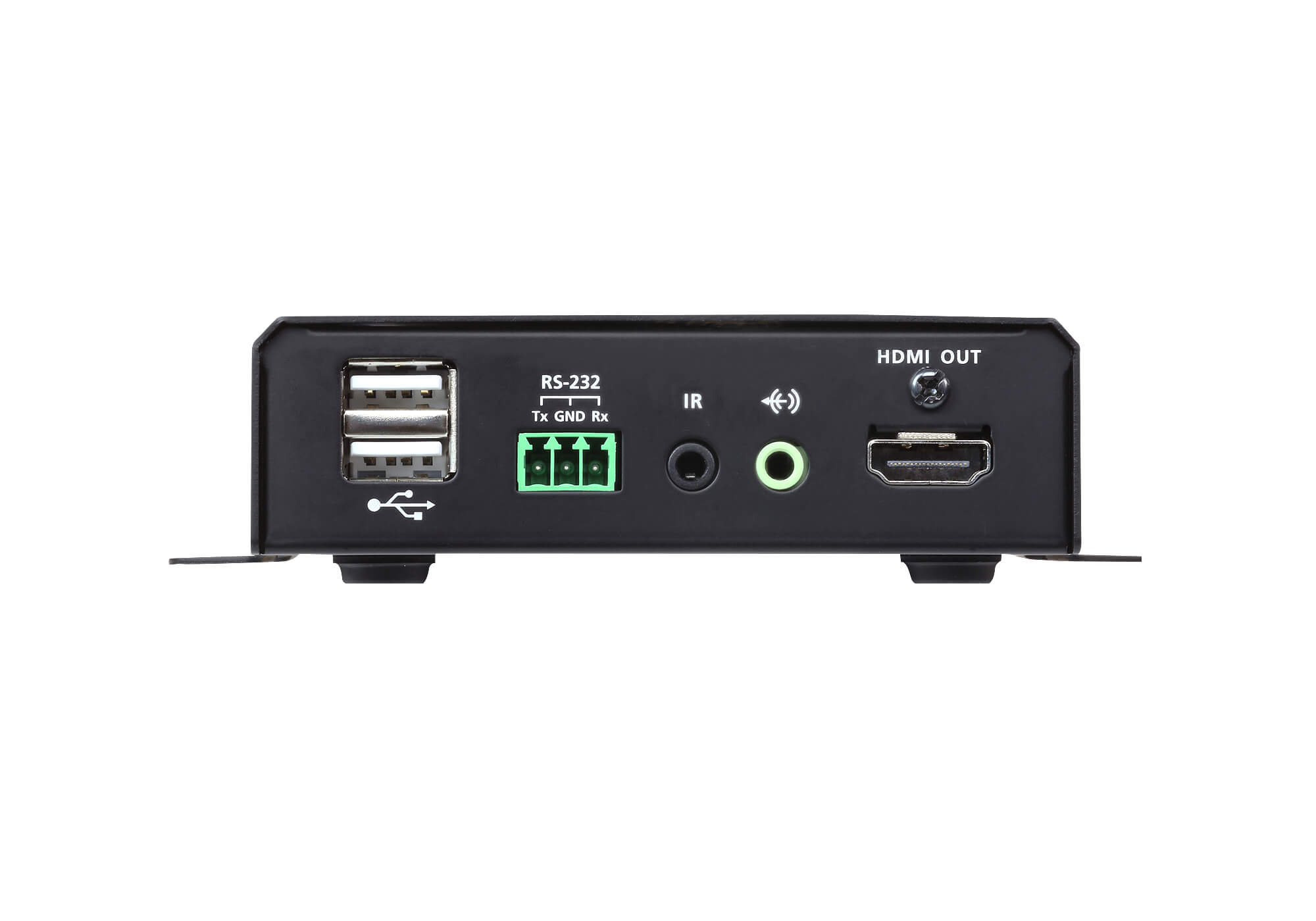

| Output | 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) |
| Connectors | |

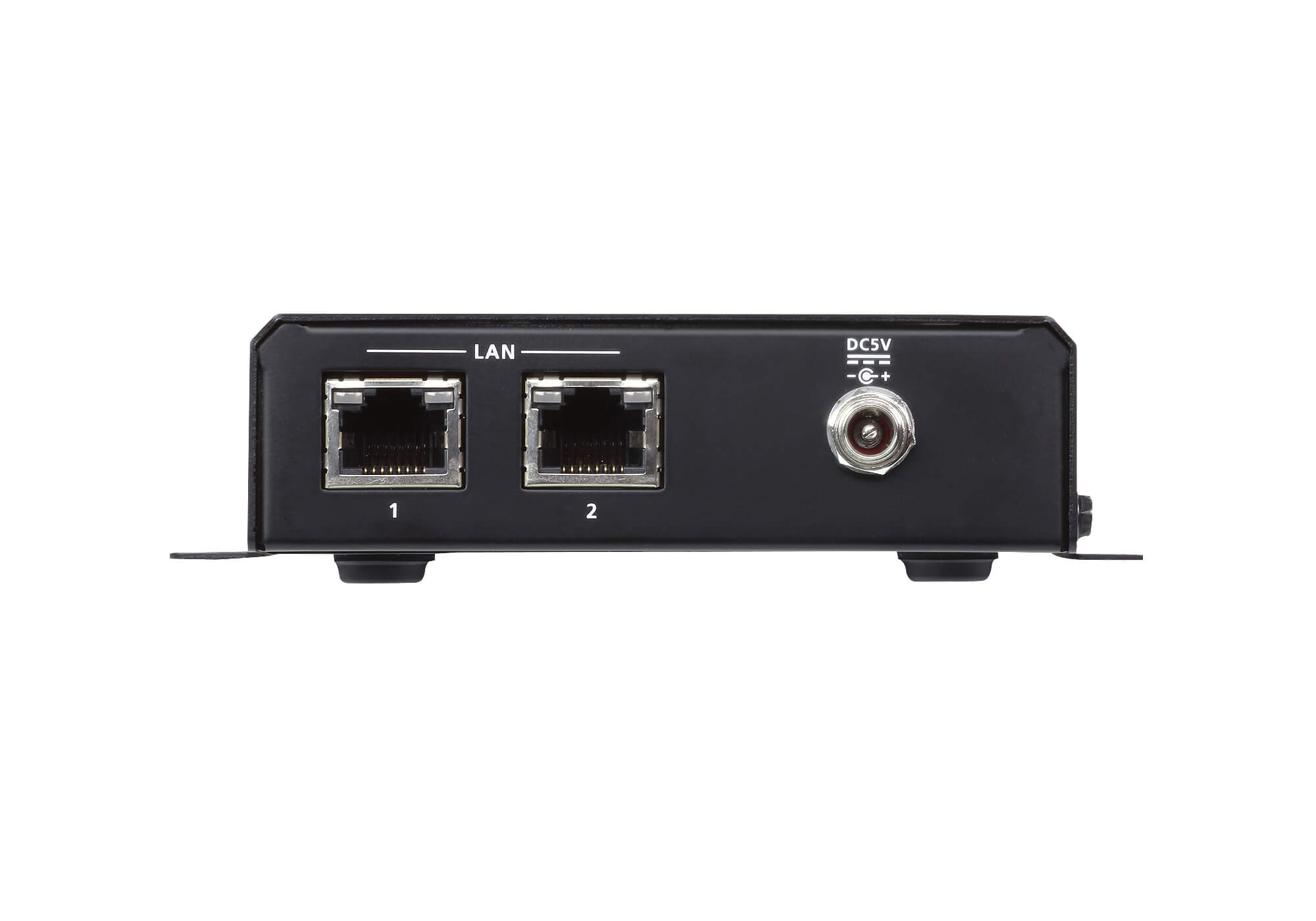

| Unit To Unit | 2 x RJ-45 Female |
| Power | 1 x DC Jack (Black) with locking |
| Control | |
| IR | 1 x Mini Stereo Jack Female (Black) |
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| USB | 2 x USB Type A Female (Black) |
| Pushbuttons | |

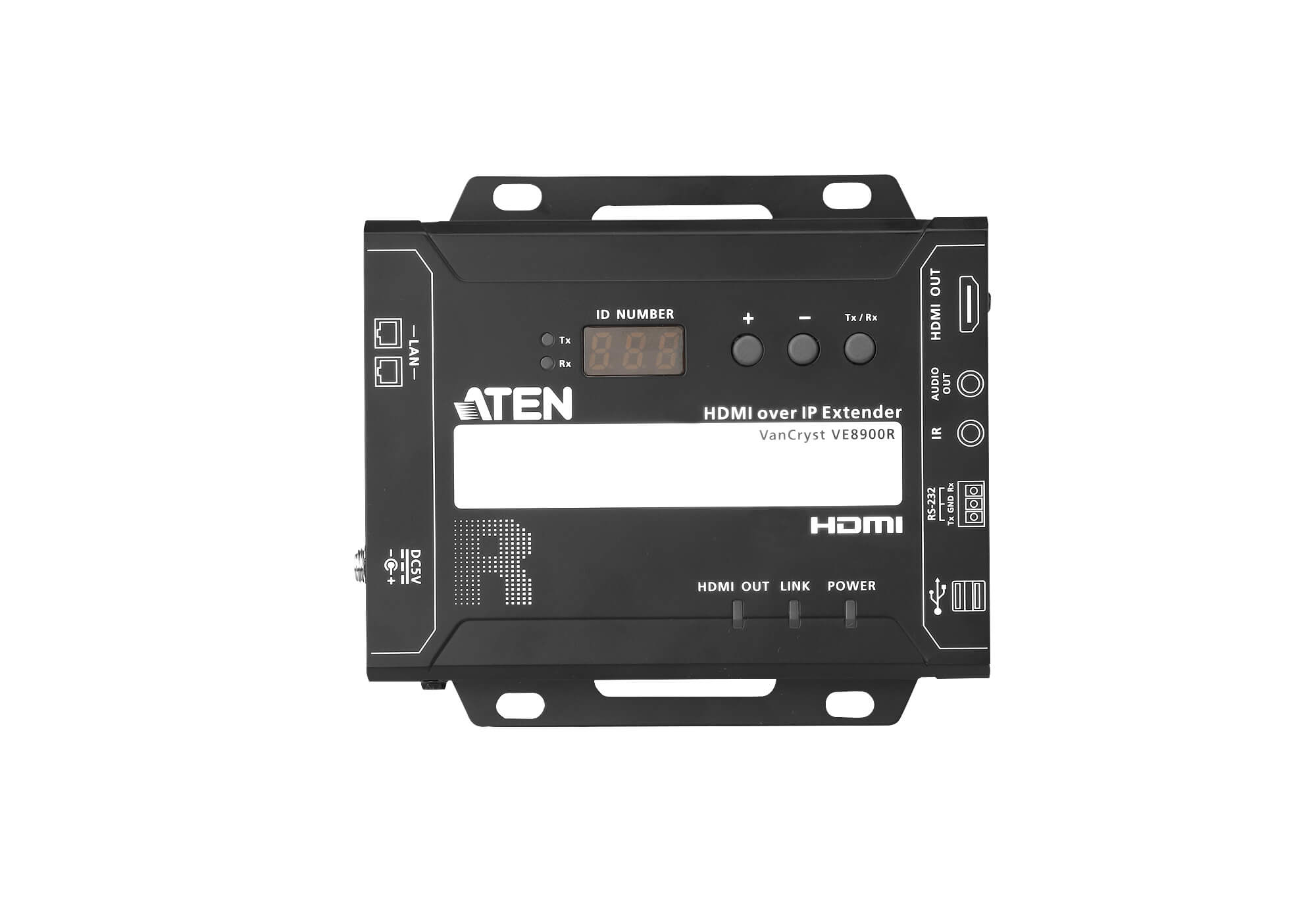

| ID Number Selection | 3 x Push buttons |
| Power Consumption | DC5V:4.28W:41BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.49 kg ( 1.08 lb ) |
| Dimensions (L x W x H) with bracket | 14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.) |
| Input Resolutions | 640x480p @ 59.94/60Hz (4:3) | 720 (1440)x240p @ 59.94/60/119.88/120/239.76/ 240Hz (4:3)/(16:9) |
| 720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9) | 720x576p @ 50/200Hz (4:3)/(16:9) | |
| 1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/ 119.88/120 Hz (16:9) |
720x576p @ 100Hz (16:9) | |
| 1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz | 1440x480p @ 59.94/60Hz (4:3)/(16:9) | |
| 1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9) | 1440x576p @ 50Hz (4:3)/(16:9) | |
| 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/ 119.88/120Hz (16:9) |
(2880)x480p @ 59.94/60Hz (4:3)/(16:9) | |
| 720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9) | 1680x720p @ 23.98/24/25/29.97/30/50/ 59.94/ 60/100/119.88/120Hz | |
| 720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9) | 2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz | |
| 720 (1440)x288p @ 50Hz (4:3)/(16:9) |
Datasheet
ve8900_8950_8952_extender_ds_en.pdf (4.14 MB)
User Manual
| File Name | Release Date |
| ve8900-ve8950-ve8952-user-manual-w.pdf (7.23 MB) | 2025-12-03 |
| VE89_Implementation_Guide.pdf (1.06 MB) | 2021-05-26 |
