ATEN VE803

HDMI USB Extender over Cat5e/6 up to 60m

The ATEN VE803 HDMI USB Extender is a compact, metal‑enclosed kit that delivers ultra‑reliable HDMI video and USB signal extension over Cat 5e cabling. Designed for scenarios such as kiosks, digital signage, transportation terminals, medical facilities, or interactive screens, this kit supports HDMI and USB 2.0 device extension up to 60 meters (200 feet) for 1080i signals, and up to 40 meters (130 feet) for full-resolution 1080p video.

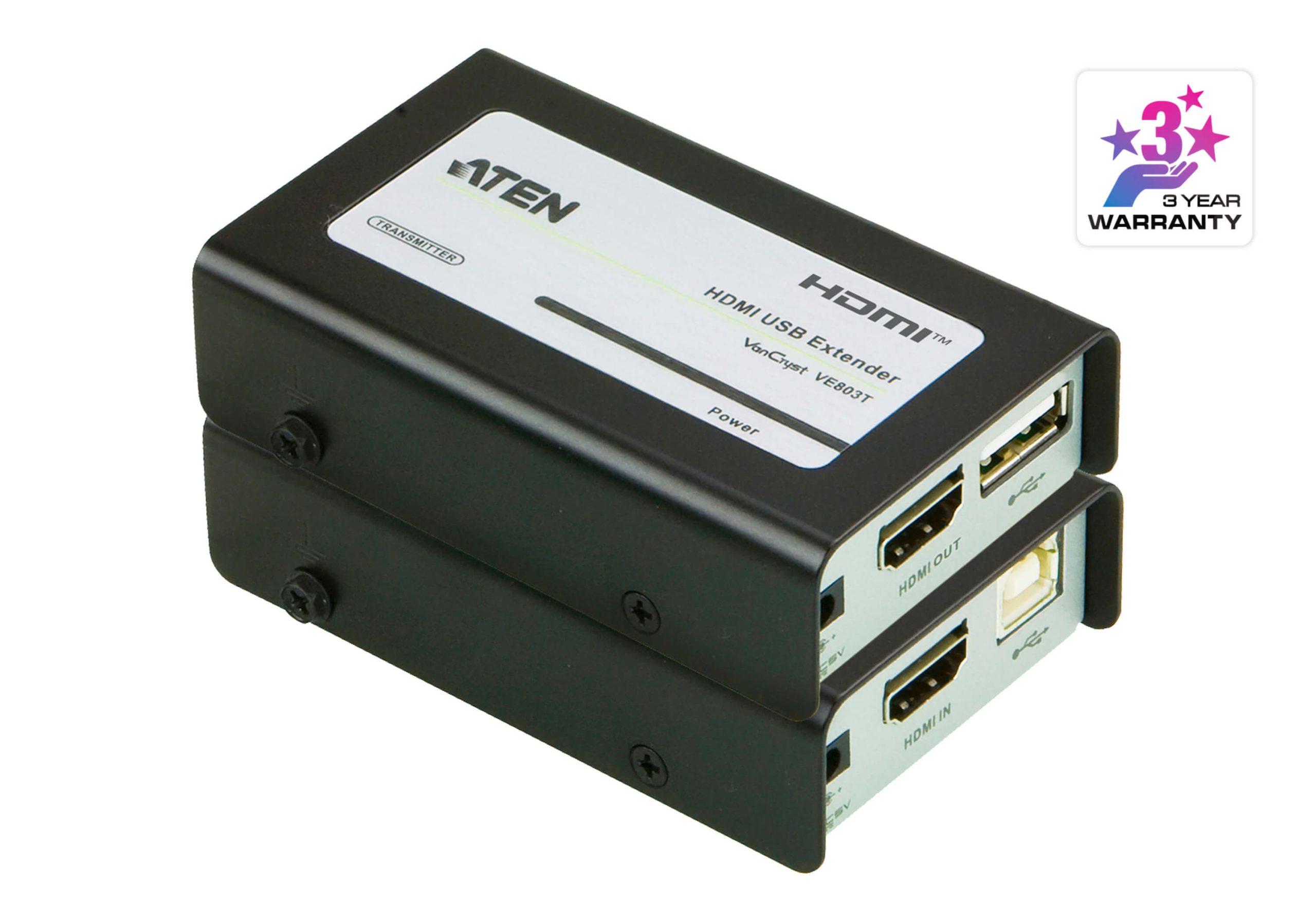

The system includes two compact units: the VE803T transmitter, which connects to the HDMI source and USB host, and the VE803R receiver, attaching to the remote display and USB device (e.g. touch panel). Both units are housed in rugged metal frames (~9 × 5.7 × 2.4 cm, ~0.16 kg), making surface or rack mounting easy and discreet.

High‑fidelity video is sustained through ATEN’s proprietary timing and skew correction protocols. The extender supports resolutions from 480p through 1080p and WUXGA (1920 × 1200), along with advanced features such as 3D, deep color, and support for high-definition audio formats including Dolby TrueHD and DTS‑HD Master Audio. It ensures transparent HDMI operation, including full HDCP compliance and EDID management.

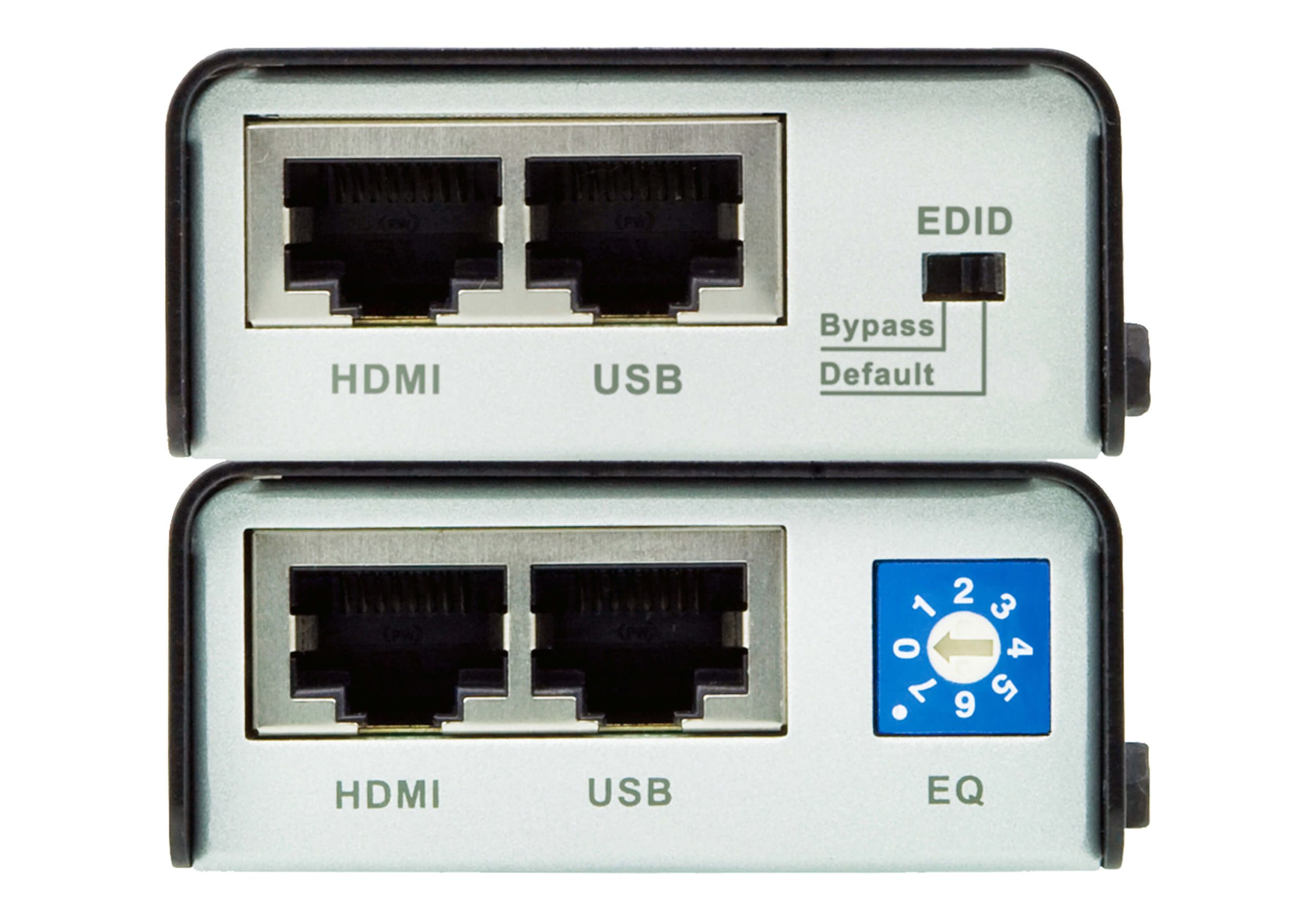

For visual tuning, the VE803R includes an eight‑segment equalization adjustment switch that allows installers to fine‑tune video clarity and reduce artifacts across varying cable lengths. The VE803T also offers an EDID mode switch: “Default” mode uses ATEN’s built‑in EDID, while “Bypass” mode relays the actual display EDID, which can be essential when handling HDCP‑protected content.

A standout capability is the transparent USB 2.0 extension, allowing most full‑speed USB devices (up to 12 Mbps) to communicate faithfully between the source and remote ends. This makes it ideal for integrating touch panels, keyboard/mouse controls, or USB peripherals at the display end while the host remains centralized. The VE803T can even derive its power via the USB port of the source device when acceptable, offering simplified deployment.

Safety and robustness are built into the hardware. The VE803 includes integrated ESD protection rated at 8 kV for contact discharge and 15 kV for air discharge, safeguarding equipment in electrically noisy or high‑traffic environments . Power consumption is minimal—VE803T typically draws about 0.75 W and VE803R around 1.0 W, making it ideal for energy-conscious setups.

Operational range is impressive: up to 60 m (approx. 200 ft) for interlaced 1080i video, or up to 40 m (130 ft) for full‑motion 1080p content—making the VE803 ideal for installations where HDMI cables would be impractical or costly. Its tolerance for wide temperature (0–50 °C) and humidity (0–80 % RH non‑condensing) conditions ensures reliability in both climate‑controlled and public settings.

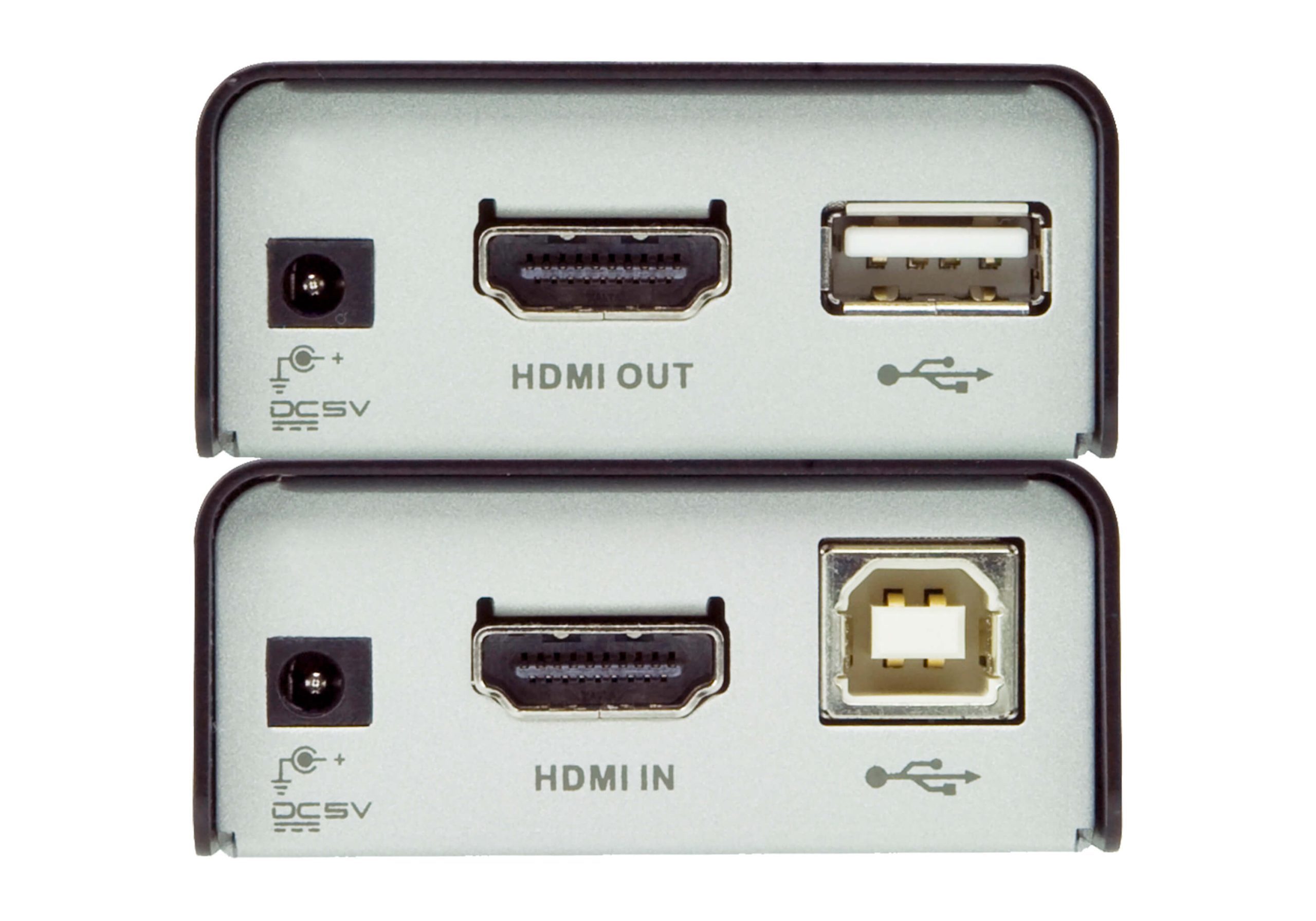

Installation is straightforward: the HDMI source connects to the VE803T, USB host to the VE803T USB‑B, then two Cat 5e cables carry video and USB signals to the VE803R, which connects to the display and USB peripheral. Power is supplied to the receiver via its DC jack, and the transmitter may be powered via USB if adequate current is available. Final video quality tuning is done via the equalization and EDID switches as needed.

In real-world use, the VE803 is ideally suited for touch-enabled digital signage or information kiosks, where the interactive display is located remotely from the computing device. It also works well in presentation environments, control rooms, or retail installations where device control must follow the visual content. The inclusion of a mounting kit and user guide in the package facilitates efficient deployment.

The VE803 reflects ATEN’s commitment to professional AV performance with commercial-grade reliability, supported by a warranty (often limited one‑year support, varying by region) and compliance with industry standards for HDMI, HDCP, and USB extension.
