ATEN VE801

HDMI HDBaseT-Lite Extender (4K@40m) (HDBaseT Class B)

The ATEN VE801 HDMI HDBaseT‑Lite Extender is a high-performance long-distance AV extension kit that enables reliable HDMI signals to be transmitted over a single Cat 5e/6/6a cable. It is ideal for applications such as digital signage, lecture halls, conference rooms, control rooms, entertainment centers, and remote-monitoring setups. Built following HDBaseT Class B standards, the VE801 offers plug-and-play convenience with robust video and audio delivery for extended distances—without bulky HDMI cabling.

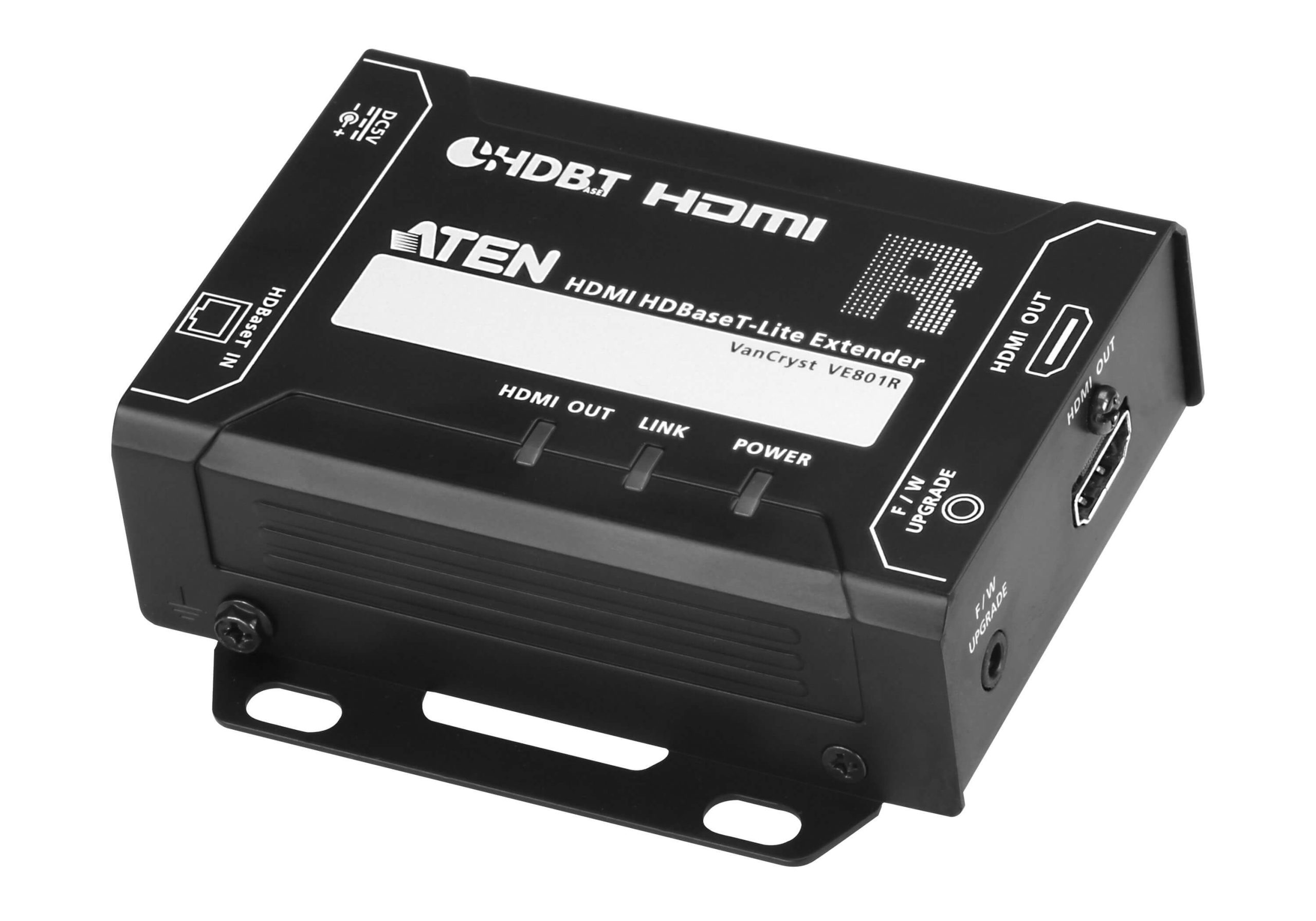

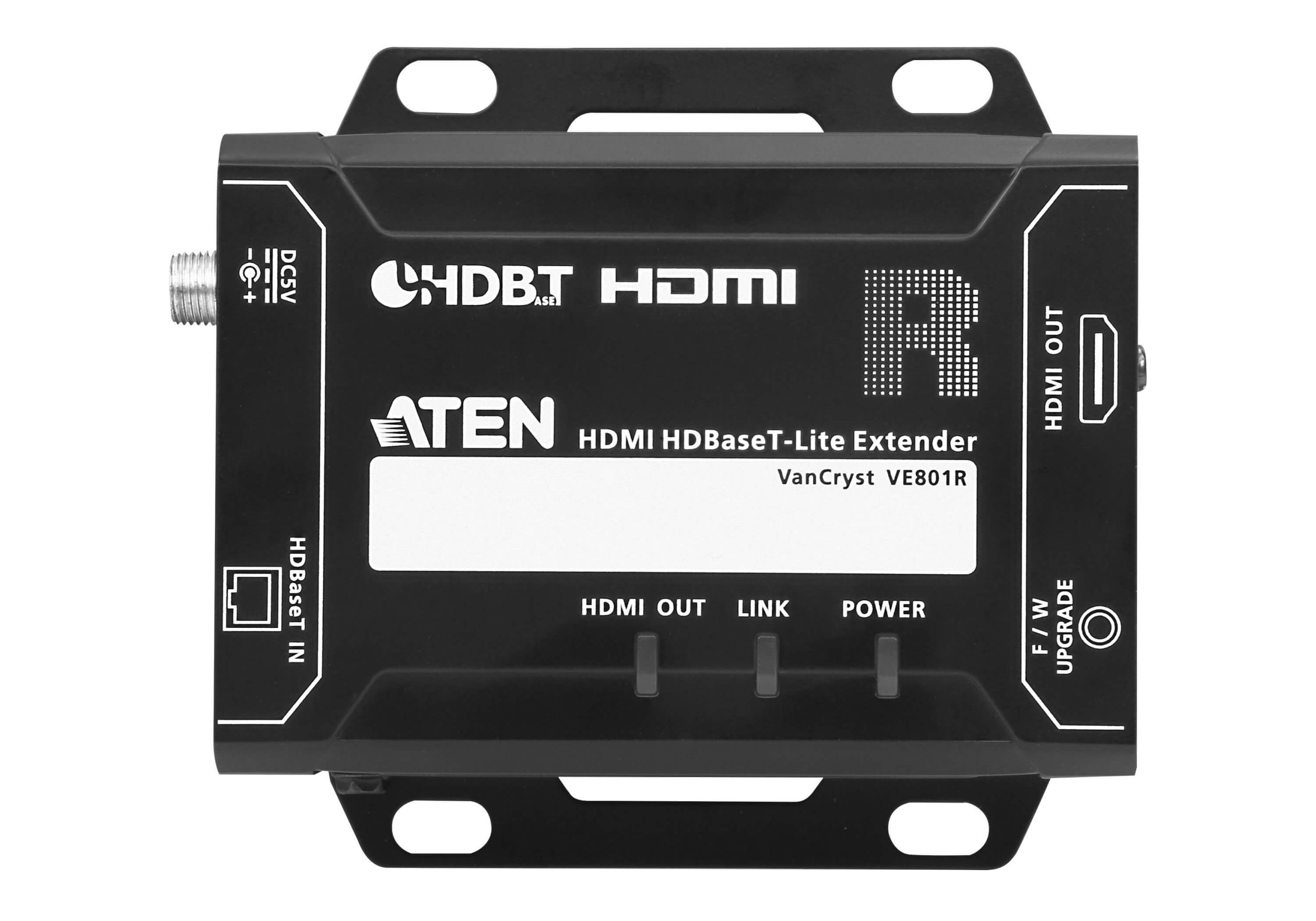

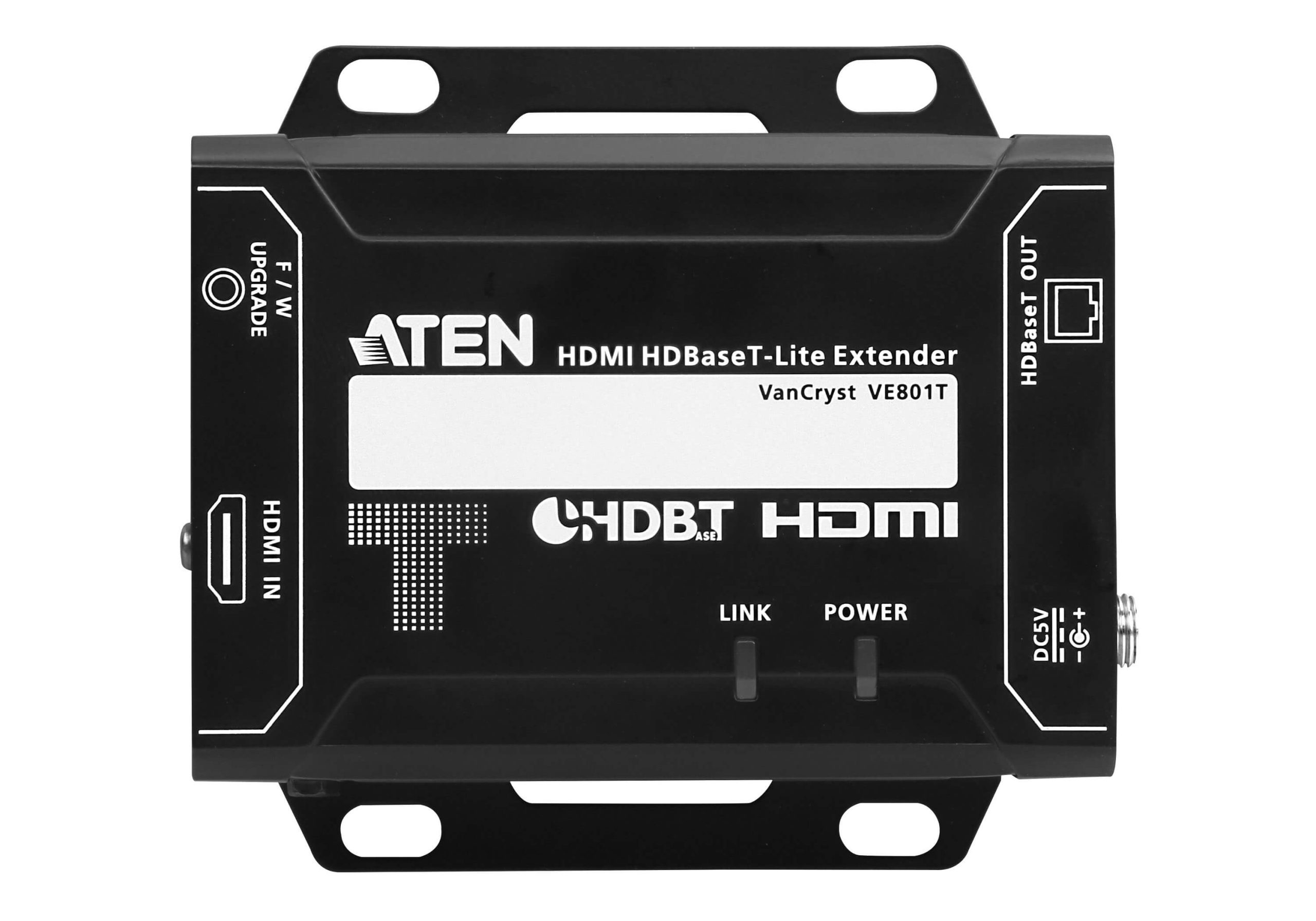

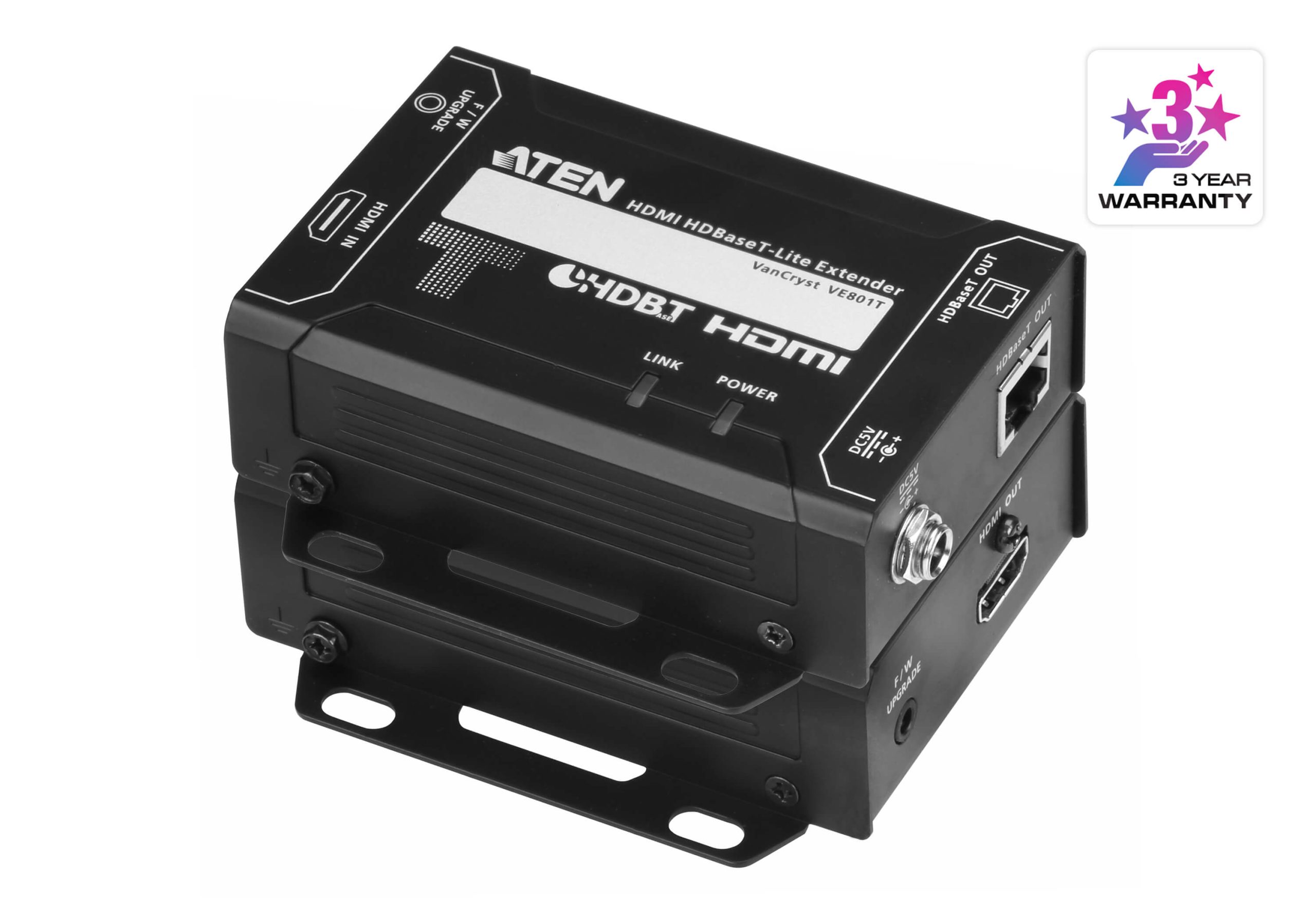

Each kit includes a transmitter (VE801T) and a receiver (VE801R), both enclosed in compact metal housings measuring approximately 12.5 × 8.7 × 3.0 cm and weighing around 0.24–0.25 kg. The side panels feature slip-resistant grooves, improving grip during installation and enhancing visibility of status LEDs (Power and Link). The sleek, rack-mountable design ensures seamless integration into professional AV installations.

Under the hood, the VE801 supports HDMI 4K resolution (up to 3840 × 2160 or 4096 × 2160) at 30 Hz with full chroma sampling (4:4:4), or up to 4K@60 Hz at 4:2:0, depending on cable quality. With Cat 5e or Cat 6, it extends up to 35 m; with higher-grade Cat 6a or ATEN’s certified Cat 6 cable, distances increase to 40 m. For full HD 1080p resolution, the extender supports up to 60 m over Cat 5e/6 or up to 70 m using Cat 6a, making it highly flexible for most AV deployments.

Video signal integrity is maintained through HDBaseT Anti‑jamming technology, which resists interference during high-bandwidth transmission. The unit supports deep color, 3D formats, Consumer Electronics Control (CEC), and full HDCP 2.2 to ensure compatibility with protected content sources and displays. It also employs an “EDID Expert” mechanism to automatically configure optimal EDID settings for smooth device startup and correct resolution matching across displays.

Because all audio is carried over HDMI, no separate wiring is required. Supported audio formats include Dolby Digital 5.1 and DTS HD Master Audio, preserving high-fidelity sound even at long cable lengths. Both main units draw minimal power—1.85 W for the transmitter and 4.24 W for the receiver—powered via 5 V DC with locking jacks for secure connections .

From an environmental standpoint, the VE801 is rated for ambient operating temperatures between 0 °C and 50 °C, with storage tolerance from –20 °C to 60 °C, and up to 80% relative humidity non-condensing. This ensures reliable performance across a range of indoor environments, from auditoriums to control cabinets.

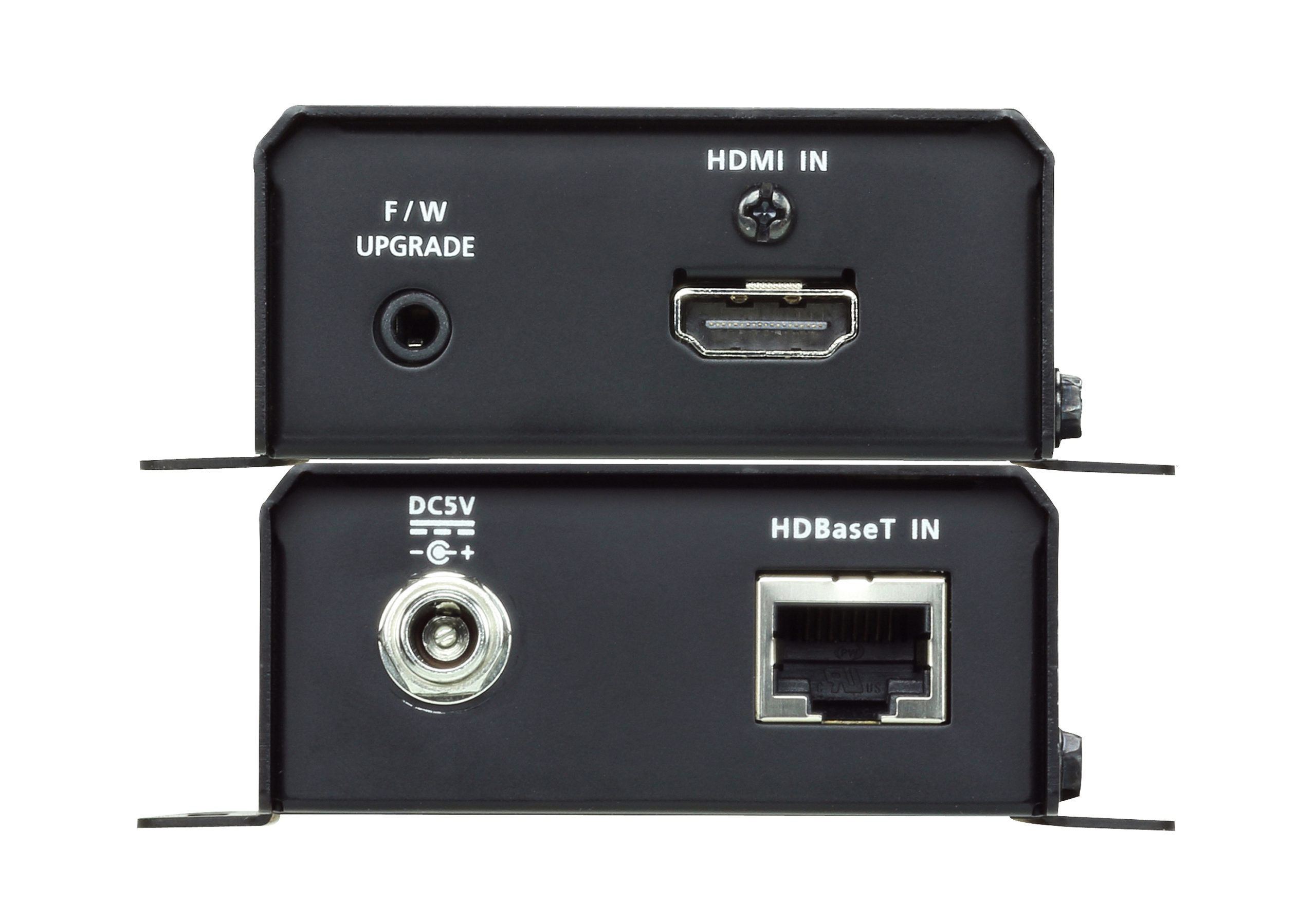

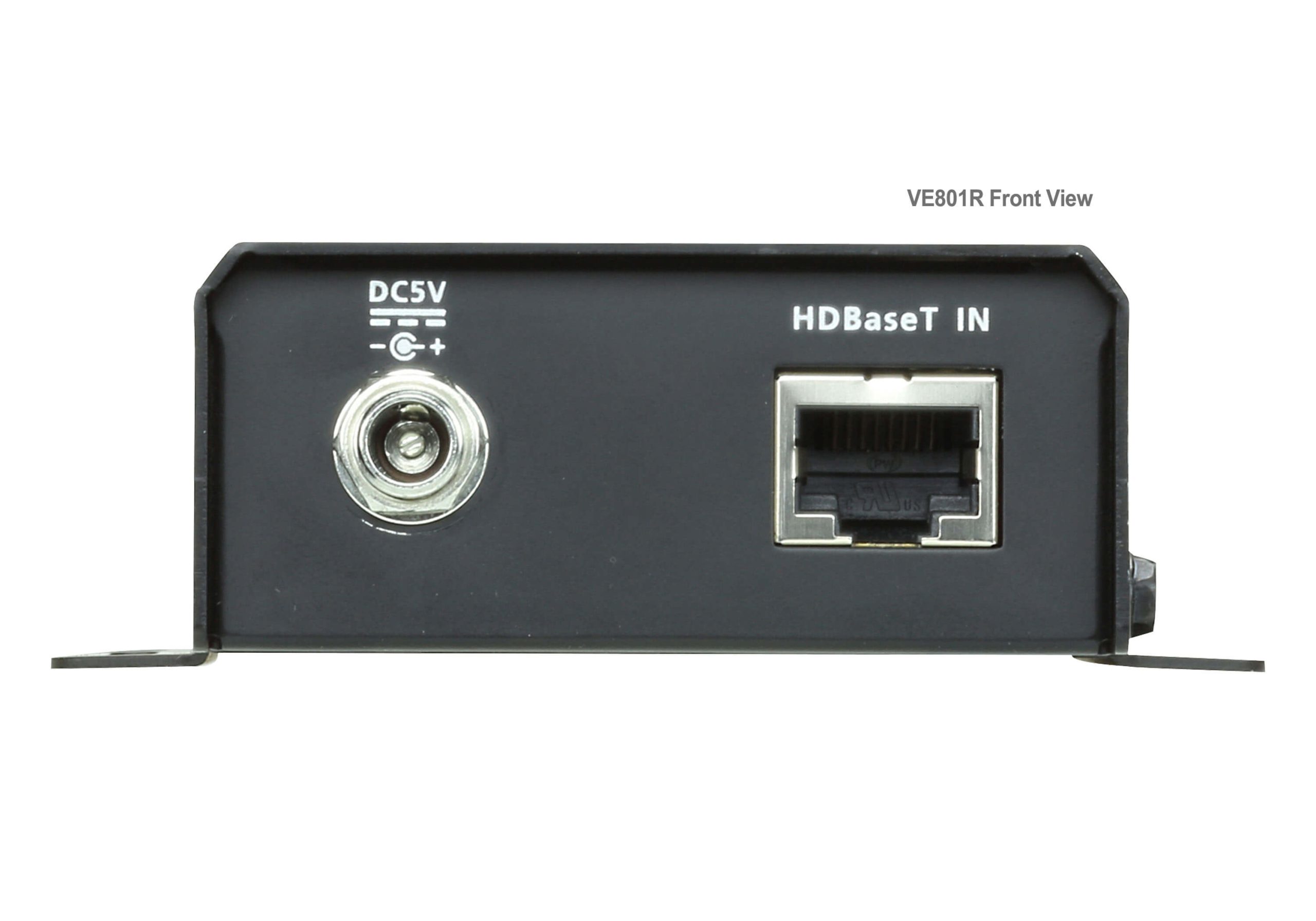

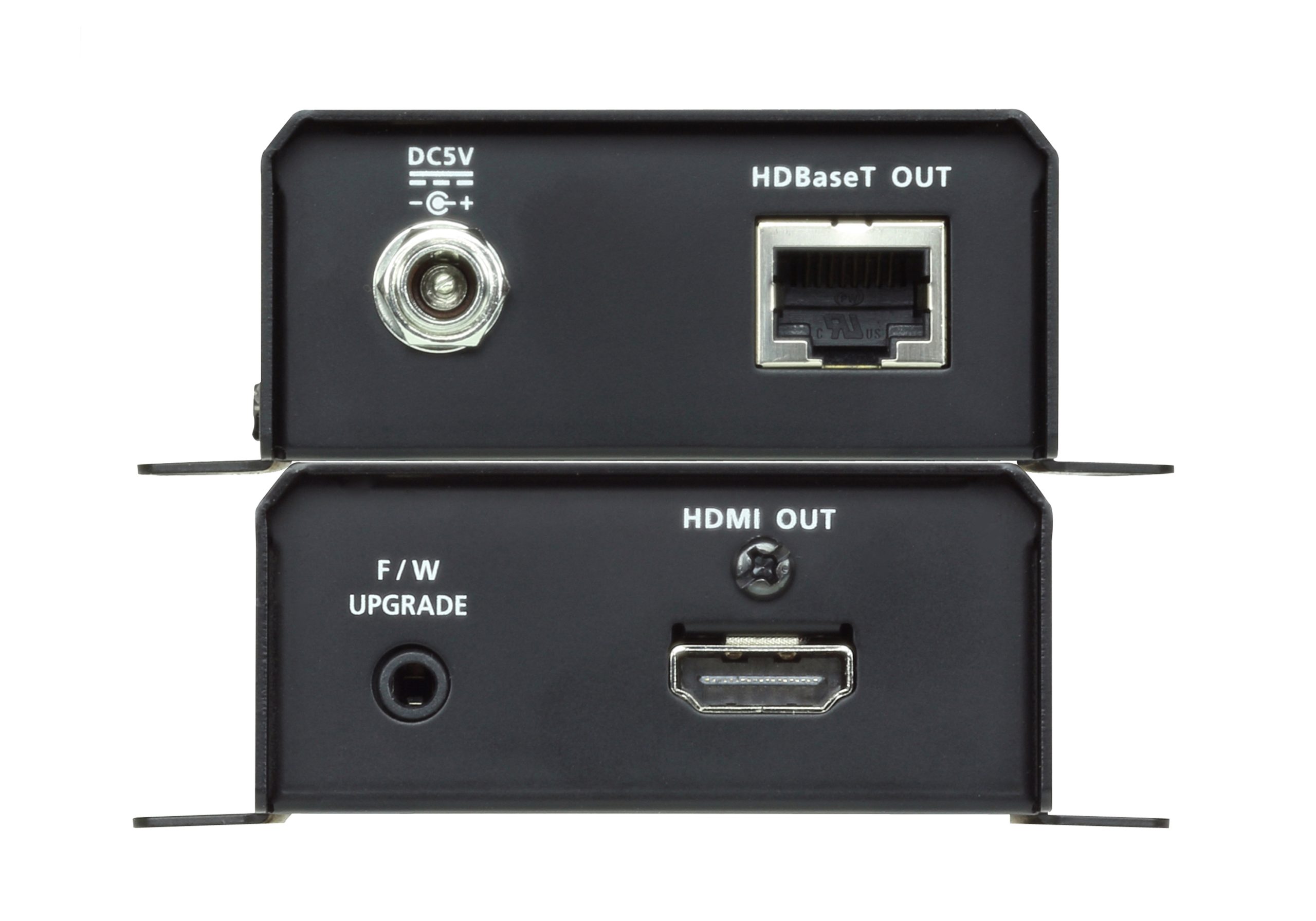

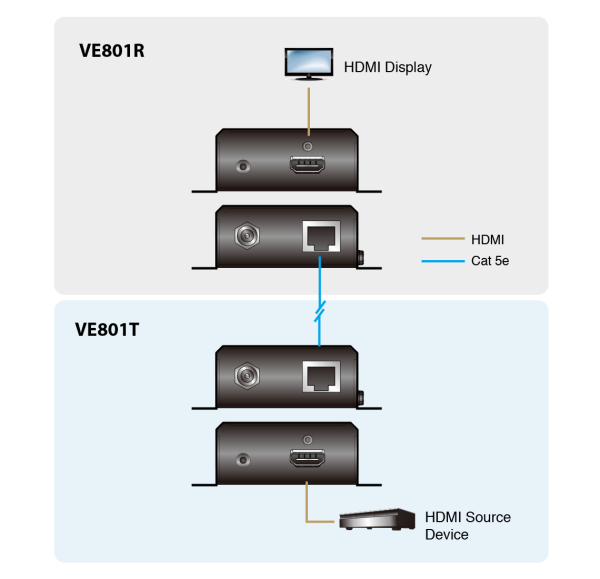

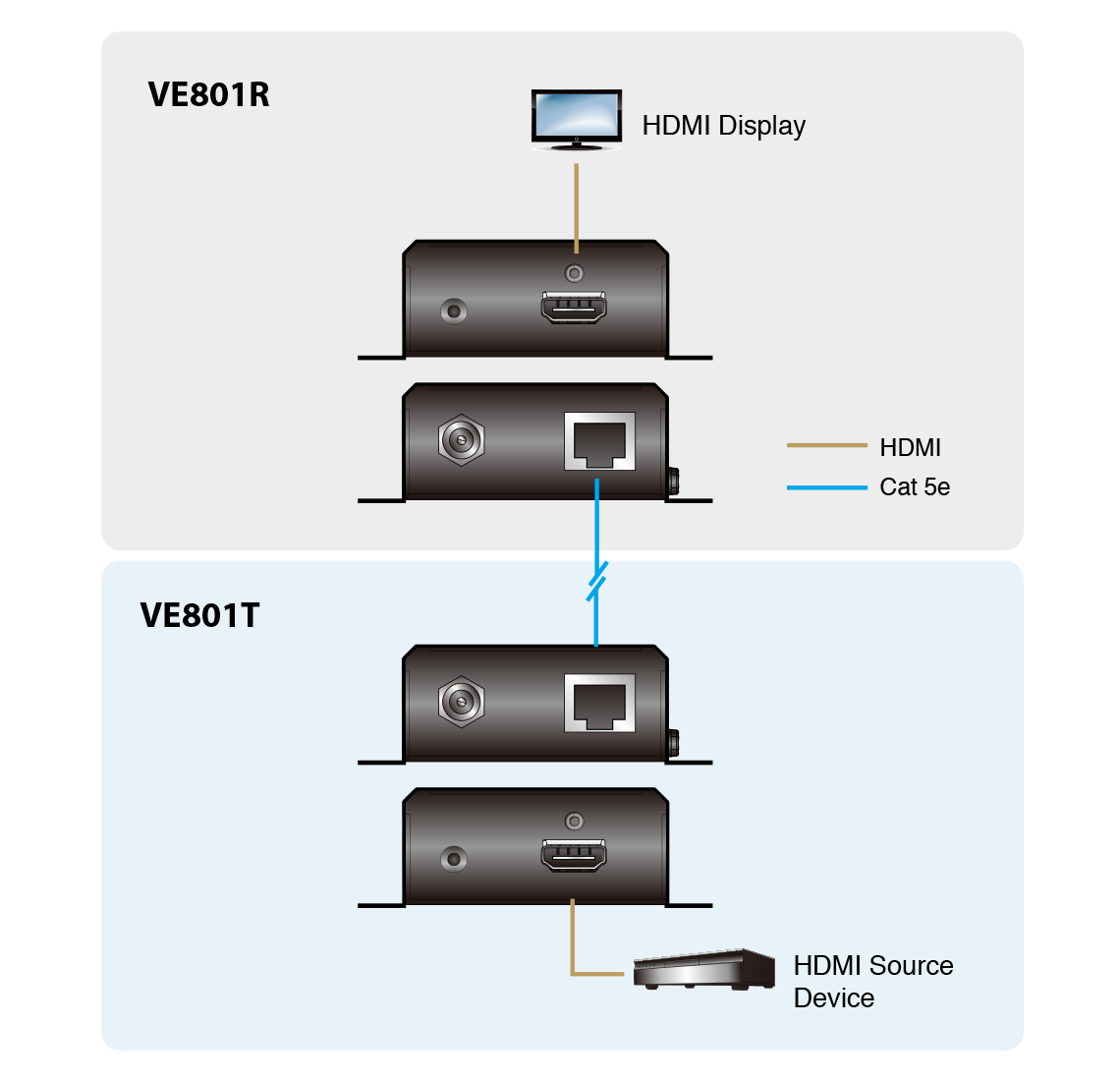

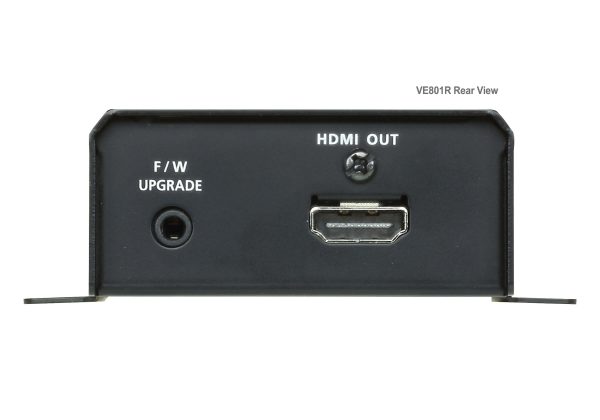

Deployment is straightforward: connect the HDMI source (PC, Blu-ray player, media box, video wall processor) to the transmitter’s HDMI input, and the display (monitor, projector, TV) to the receiver’s HDMI output. Use one Cat 5e/6/6a cable between the units via RJ‑45 connectors. Engage EDID Expert mode if necessary, then power both units. Final optimization—especially over unpredictable cable runs—is possible using the transmitter’s EDID mode and built-in equalization on the receiver to fine-tune video clarity.

Real-world use cases highlight the VE801’s value. It enables centralized media players to serve video across multiple screens, delivers signage content in malls and hotels, supports long-distance signal delivery in boardrooms, and enables AV routing in stadiums or performance venues without extended HDMI cables. Its HDCP and EDID support ensure compatibility with commercial content protection schemes.

Each package includes the VE801T and VE801R modules, two power adapters, and a user instruction guide. The units offer quick setup and minimal maintenance with a professional-grade feel. Rear-panel mounting brackets can be added for rack installations. Reflecting ATEN’s engineering quality, the VE801 holds compliance with HDMI standards, HDCP 2.2, and electromagnetic shielding via its metal housing.

In summary, the ATEN VE801 HDMI HDBaseT‑Lite Extender delivers top-tier HDMI over Cat 5/6 extension performance—supporting up to 4K video, HD audio, and long transmission distances—within a compact, energy-efficient form. Its plug‑and‑play design, EDID automation, and anti-jamming capabilities make it a reliable solution for a wide range of AV applications where cable length and signal integrity matter.

---

---
