ATEN VE7834A

  • HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) ; HDCP 2.2 compliant
  • Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 60 m
  • Reduced EMI and RFI for lower noise interference
  • Pluggable gender for easy installation
40-4K (True)60-HDR 900-HDMI
Features-Icon_11-HDMI-AV-out   Features-Icon_56-HDMI-AV-in
Features-Icon_57-Fiber   Features-Icon_80-Audio-return-channel
Category: Tag: Brand:

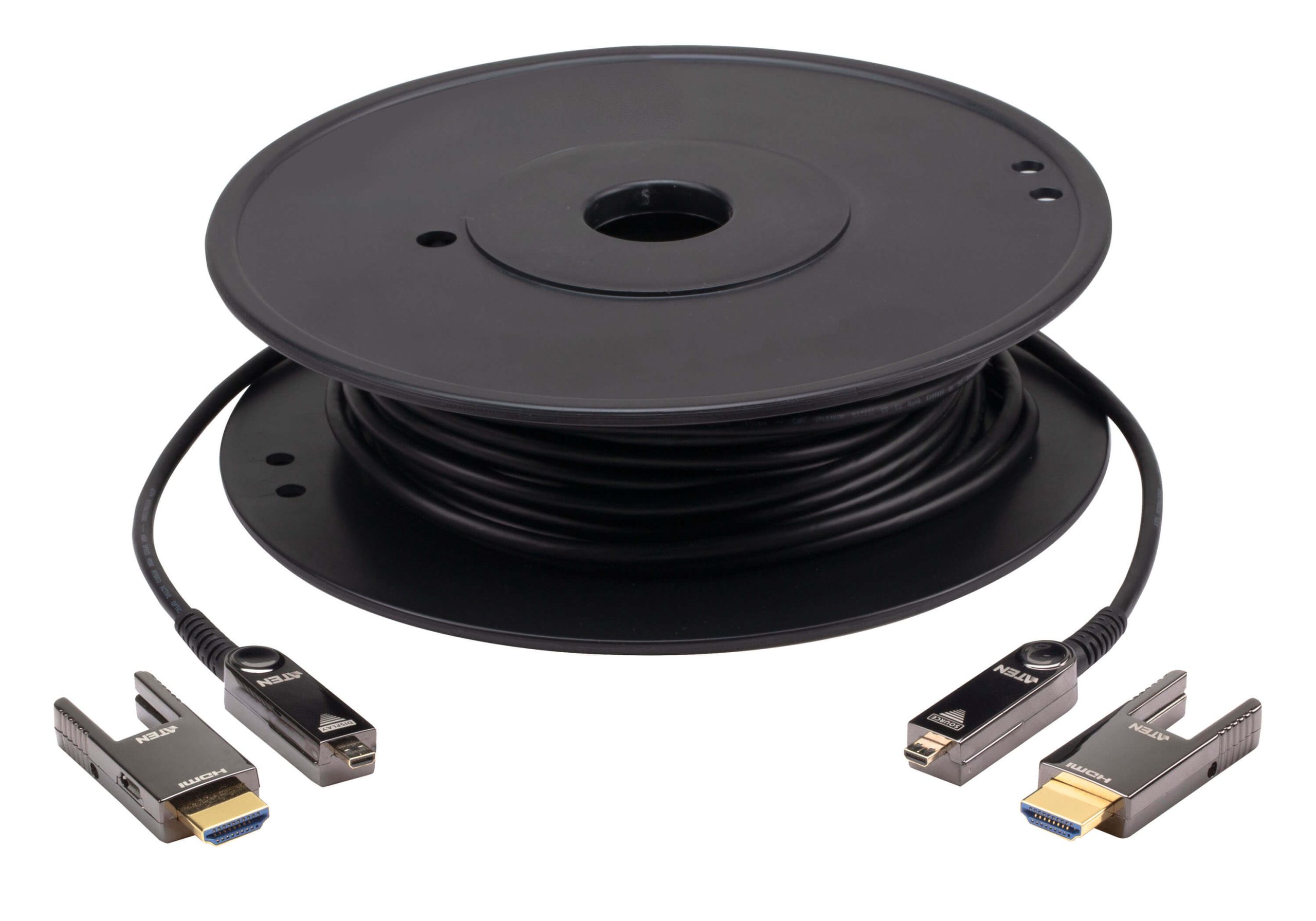

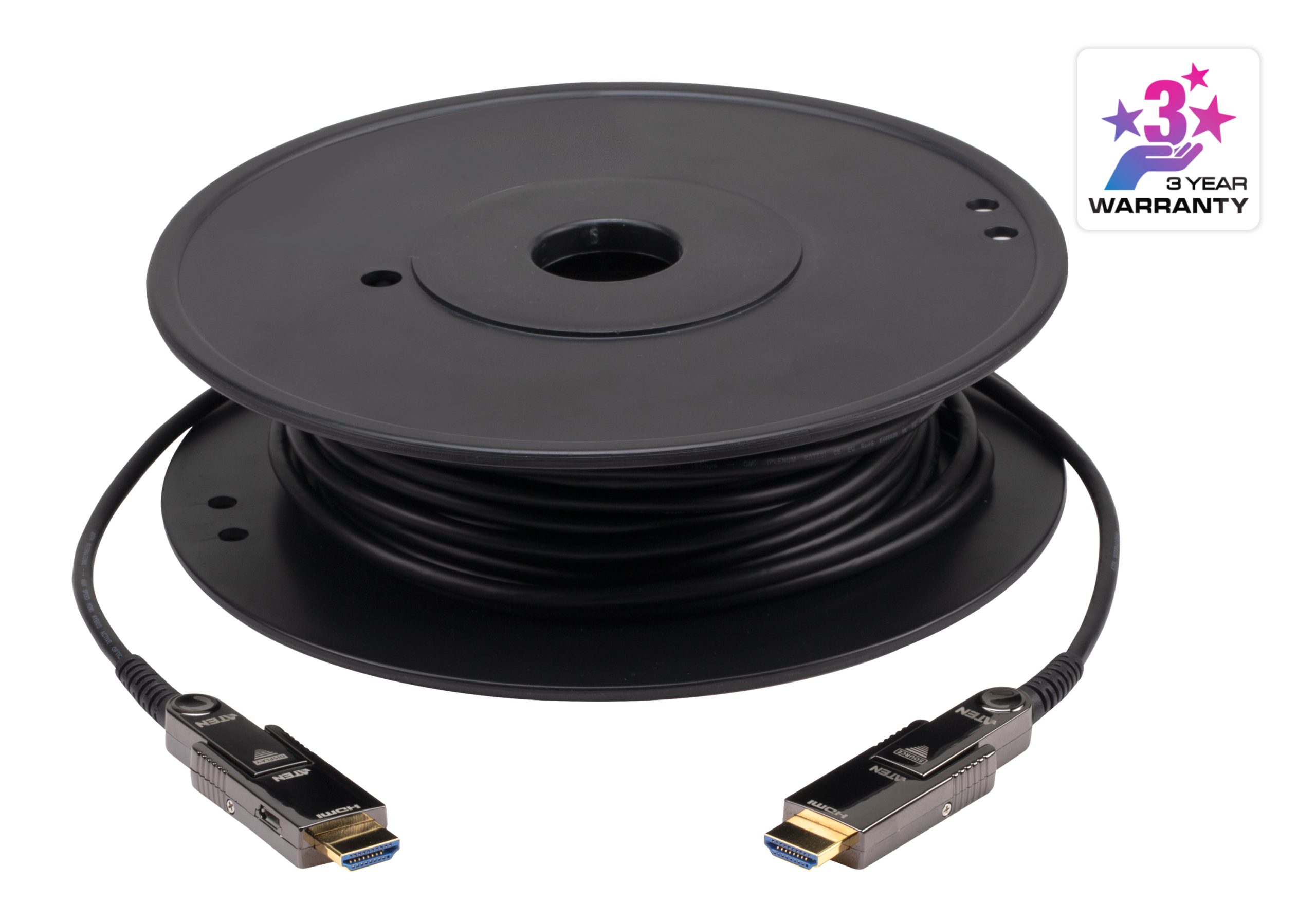

ATEN VE7834A

60M True 4K HDMI Active Optical Cable (True 4K@60m)



ATEN VE7834A optical cables utilize AOC technology that enables conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 60 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions. This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar

Engineered to meet the latest trend of integrator-friendly design, the VE7834A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

video extender hdmi

Spesification

Cable Length 60M / 196.8 ft
Cable Type Cable Type: Hybrid cable with optical fiber and copper wire
HDMI Standards: High Speed HDMI Cable
Video Input
Interfaces 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector
1 x HDMI Type-D Male
Video Output
Interfaces 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector
1 x HDMI Type-D Male
Video
Max. Data Rate 18 Gbps (6 Gbps per Channel)
Max. Pixel Clock 600 MHz (Max.)
Compliance HDMI (3D, Deep Color, 4K, HDR, HEC, ARC)
HDCP 2.2
Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0
Color Depth: 30 / 36 / 48 bit
Max. Resolutions / Distance Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 60M
Communication
Signals TMDS / HDCP 2.2 / EDID / CEC
Audio
Input PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Certifications
Certifications Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF
Conductor
Construction 7 x Tinned Copper Wire
4 x OM3 Optical Fiber (50/125um)
Jacketed
Material UL Plenum (CMP-OF)
Power Consumption DC5V:0.25W:1BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Power (Optional) Optional power source: Micro USB to USB cable (100cm)
5V, 250mW (max)
Notification Bend Radius: 20mm (Min.)
Connector Pull Strength: Max. 10kg (100N)
Compression Load Resistance: Max. 50kg (500N)
Shielding & Filling: AL Mylar shielding / Kevlar Filling
Environmental
Operating Temperature 0°C to 50°C (32℉ to 122℉)
Storage Temperature -20°C to 70°C (-4℉ to 158℉)
Humidity 0 – 85% RH, Non-Condensing
Physical Properties
Housing Connector Case: Zinc-Alloy
Weight 1.62 kg ( 3.57 lb )
Cable Outer Dimension Cable Outer Diameter: 4.5mm (± 0.2mm)
Carton Lot 10 pcs

Datasheet
ve7831a-7832a-7833a-7834a-7835a-10m-20m-30m-60m-100m-true-4k-hdmi-active-optical-cable-datasheet-en.pdf (807.78 KB)
