ATEN VE781010

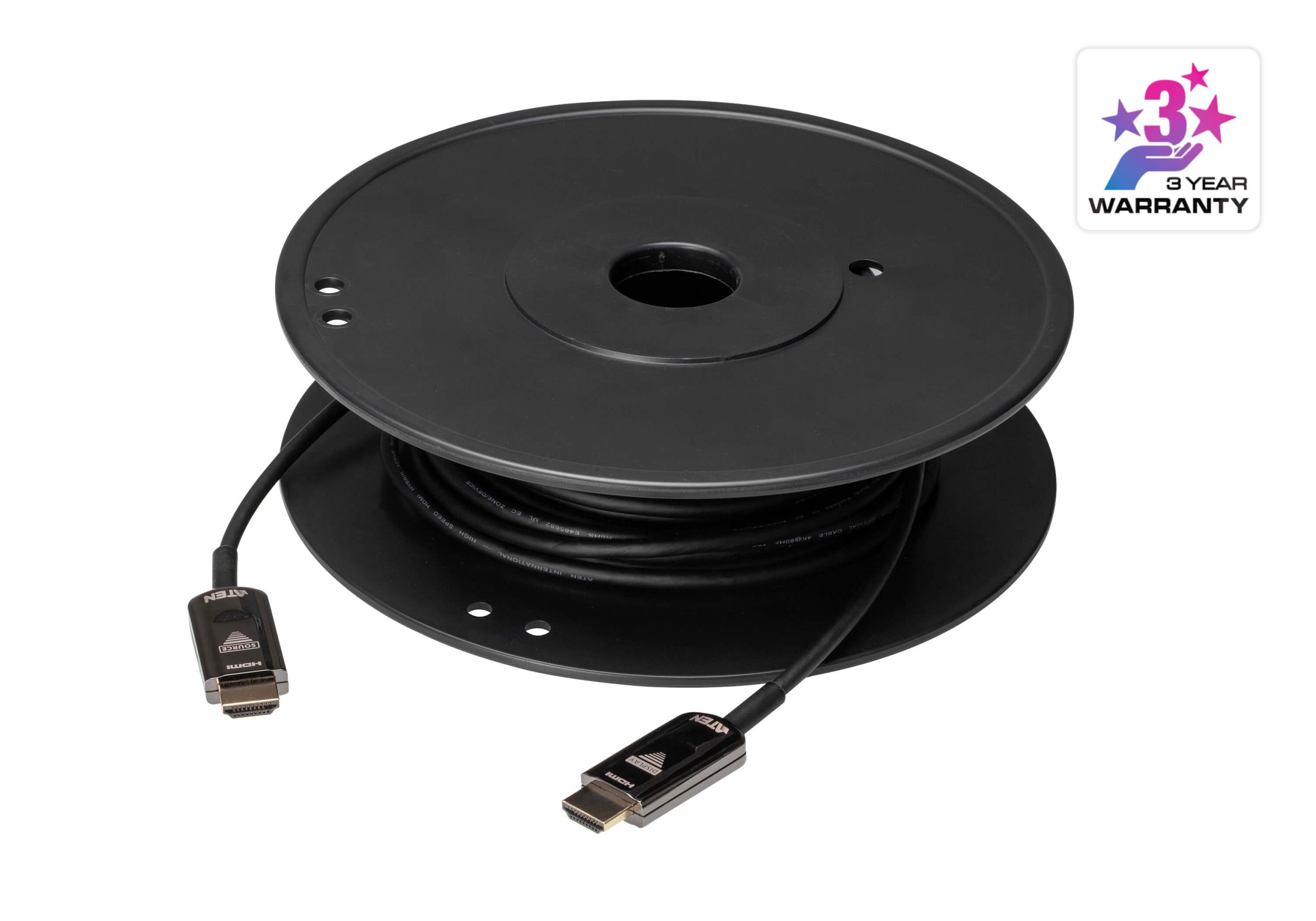

10 m True 4K HDMI Active Optical Cable (True 4K@10 m)
The VE781010, VE781020, and VE781030 are hybrid True 4K HDMI Active Optical Cables that integrate both optical fiber and copper wires, enabling seamless high-bandwidth data transmission in AV installations. With a slim 4.5 mm outer diameter, these EMI-resistant HDMI Active Optical cables come in lengths of 10, 20, and 30 meters, delivering vivid True 4K (4096 x 2160 @ 60 Hz, 4:4:4) visual clarity over long distances, making them ideal for meeting rooms, home cinemas, and digital signage setups.
True 4K HDR, True Immersion
Indulge in the unmatched realism of video resolution up to 4096×2160@60Hz 4:4:4, powered by 18Gbps ultra-high-speed bandwidth. This ensures smooth, vibrant image quality with stunning clarity, rich colors, and exceptional contrast, offering a truly immersive viewing experience.
Dive in Like It’s Tangible!
Engage in a more captivating gaming experience with crisp visuals, dynamic perspectives, minimal motion blur, and enhanced fluidity. With support for 48-bit deep color and HDR, enjoy stunning color accuracy and contrast for a truly immersive 3D adventure.
Superior Audio Fidelity with ARC Enhancement
ARC (Audio Return Channel) support enables two-way audio transmission between the display and the audio system, simplifying AV connections and ensuring high-quality audio output for streaming content, gaming, and other multimedia experiences.
Broad Compatibility

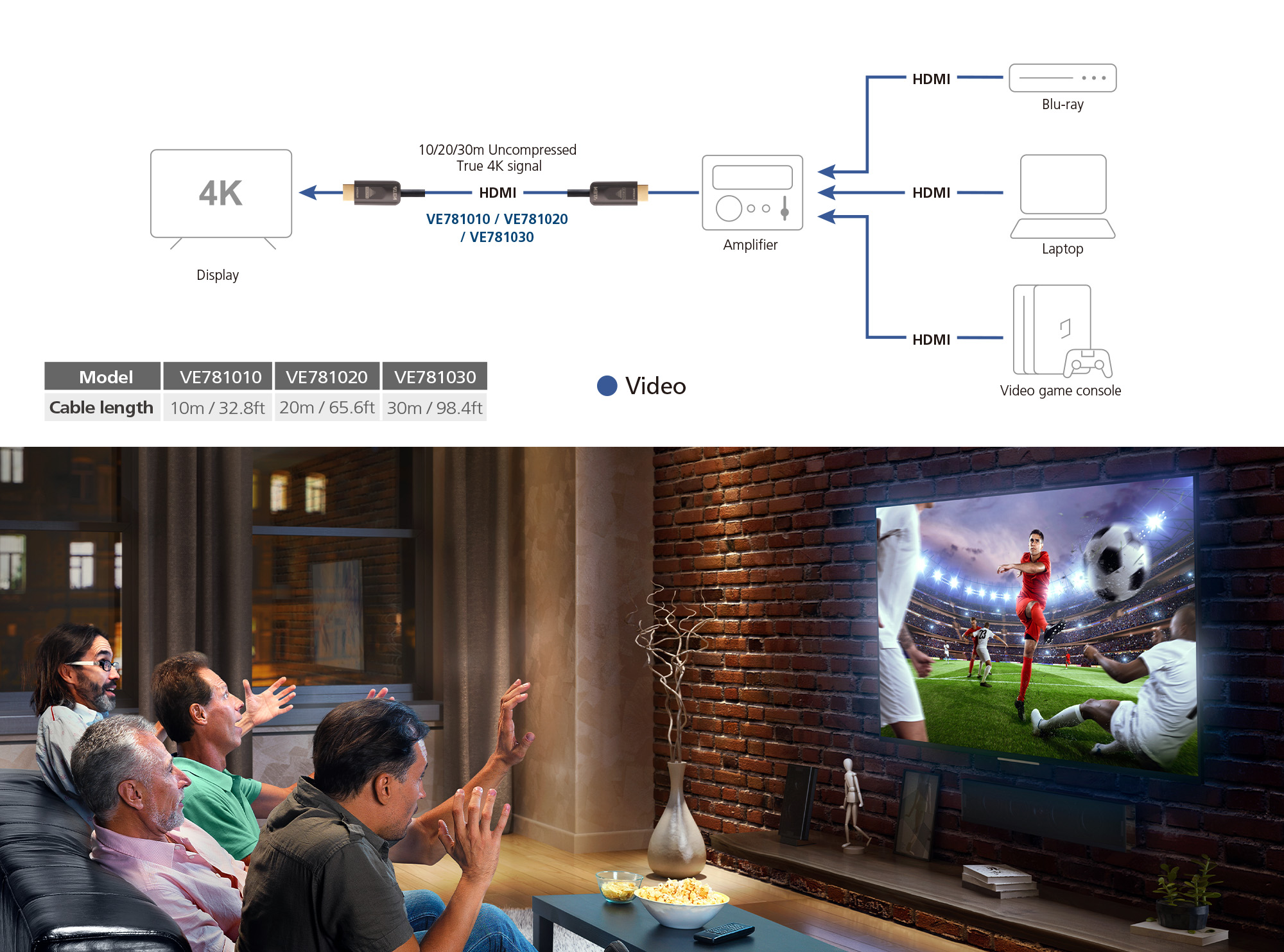

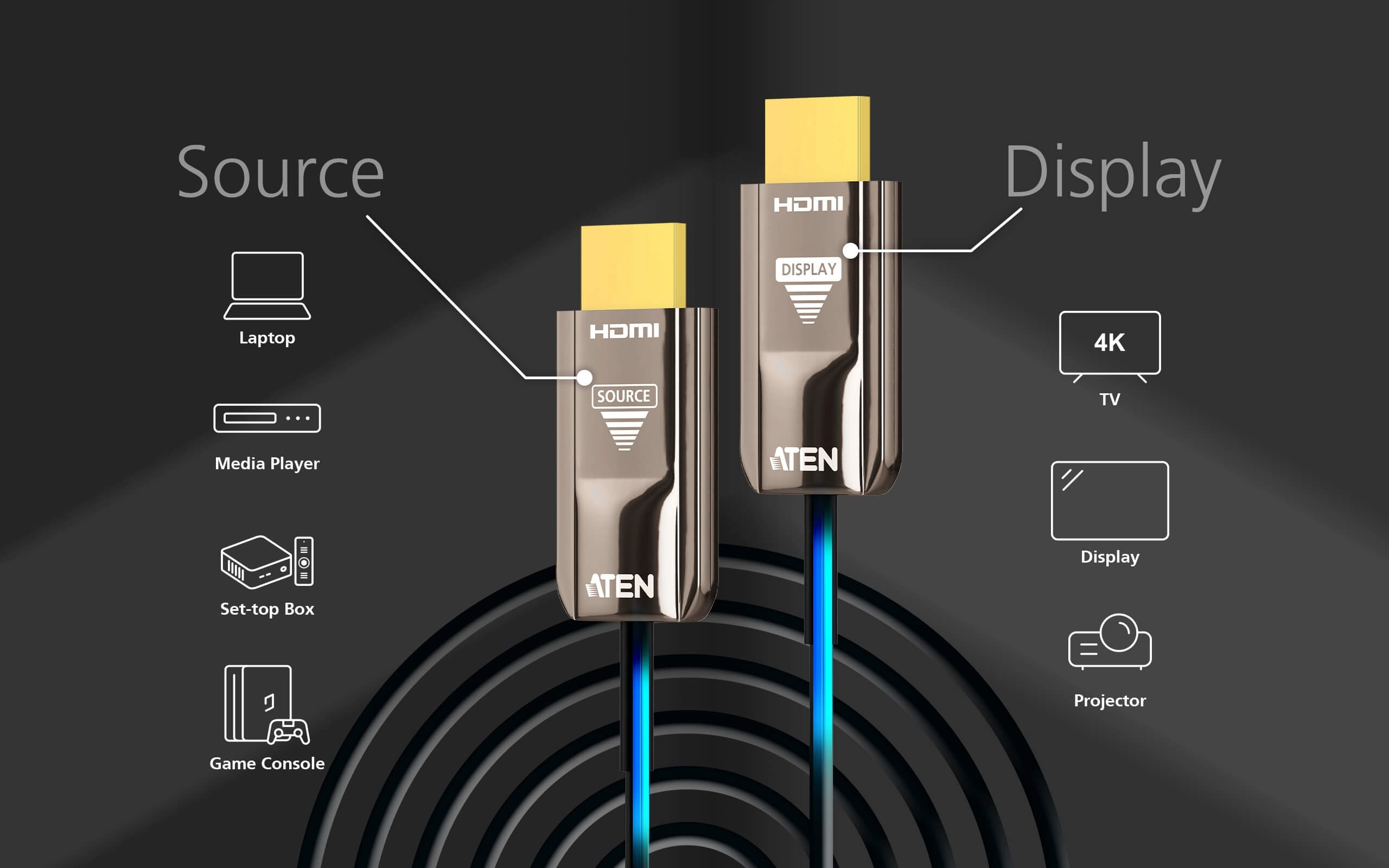

The HDMI Active Optical Cables are compatible with a wide range of AV devices, providing unidirectional connections to source and display devices, respectively.
Remarkable Engineering, Industry-Proven Quality
The 4K HDMI Active Optical Cables feature a German chipset, ensuring stable AV performance without blinking, black screens, or snowflakes. These cables are certified for safety and emissions by CE, FCC, RoHS, REACH, UL VW-1, and meet Class-A/Class-B EMC standards.
- OM3 Optical Fiber: Delivers high-speed bandwidth with no delays or flashing issues.
- Kevlar Filler: A material used in bulletproof vests, it enhances tensile strength, withstanding pulling forces of up to 24 kg and over 10,000 bending cycles without failure.
- Oxygen-Free Copper (OFC): Improves conductivity, durability, and reduces interference.
- Double-Layer Aluminum Shield: Provides robust protection against EMI and EMR, enhancing ARC functionality.

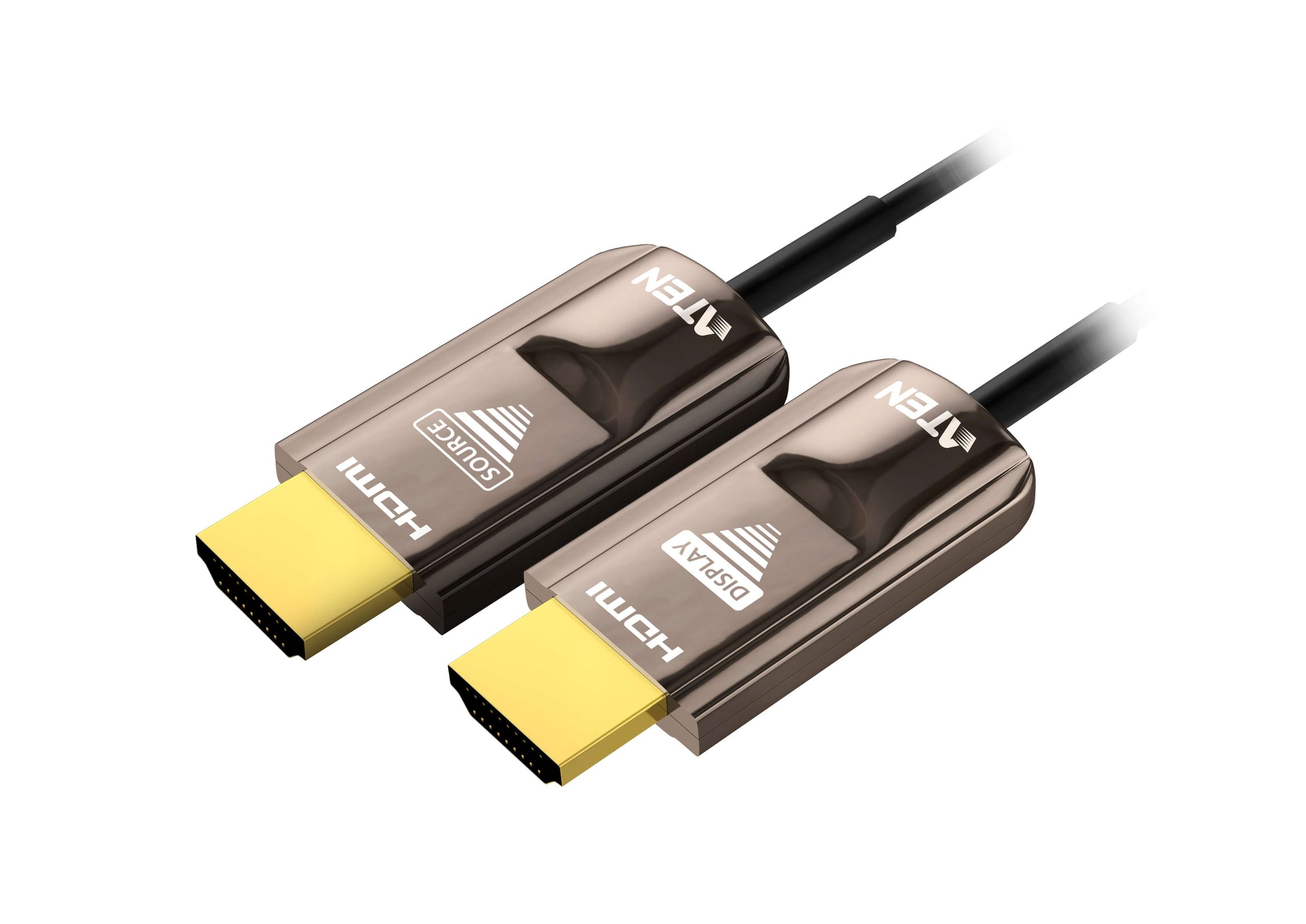

- 24K Gold-Plated Connector: Designed to endure over 10,000 plug/unplug cycles for long-lasting performance.
Spesification
| Cable Length | 10M / 32.8ft |
| Cable Type | Hybrid type with optical fiber (OM3) and copper wire |
| Video Input | |
| Interfaces | 1 x HDMI 19-pin Type-A Male |
| Video Output | |
| Interfaces | 1 x HDMI 19-pin Type-A Male |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps per Channel) |
| Max. Pixel Clock | 600 MHz (Max.) |
| Max. Resolutions / Distance | Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 10M *Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 *Color Depth: 30 / 36 / 48 bit |
| Compliance | HDMI (3D, Deep Color, 4K, HDR, ARC) HDCP 2.2 |
| Communication | |
| Signals | TMDS / HDCP 2.2 / EDID / CEC |
| Audio | |
| Input | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Output | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Conductor | |
| Construction | 7 x Tinned Copper wire strand 4 x OM3 Optical Fiber (50/125um) |
| Notification | Bend Radius: 20mm (Min.) Compression Load Resistance: Max. 50kg (500N) Cable Filler: Kevlar Cable Marking: ATEN INTERNATIONAL — HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps — PVC CE EU RoHS EC ZONE/DEVICE * NO external power required |
| Certifications | |
| Certifications | Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1 EMC Class-A / Class-B |
| Power Consumption | DC5.0V:0.25W:0.05ABTU/h
Note: |
| Jacketed | |
| Material | PVC (85P) Color: Black |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32℉ to 122℉) |
| Storage Temperature | -20°C to 70°C (-4℉ to 158℉) |
| Humidity | 0 – 85% RH, Non-Condensing |
| Physical Properties | |
| Housing | Connector Case: Zinc Alloy |
| Weight | 0.35 kg ( 0.77 lb ) |
| Cable Outer Dimension | 4.5mm (± 0.2mm) |
| Carton Lot | 5 pcs |
Datasheet
VE781010-VE781020-VE781030-True-4K-HDMI-Active-Optical-Cable-datasheet-en.pdf (664.49 KB)
