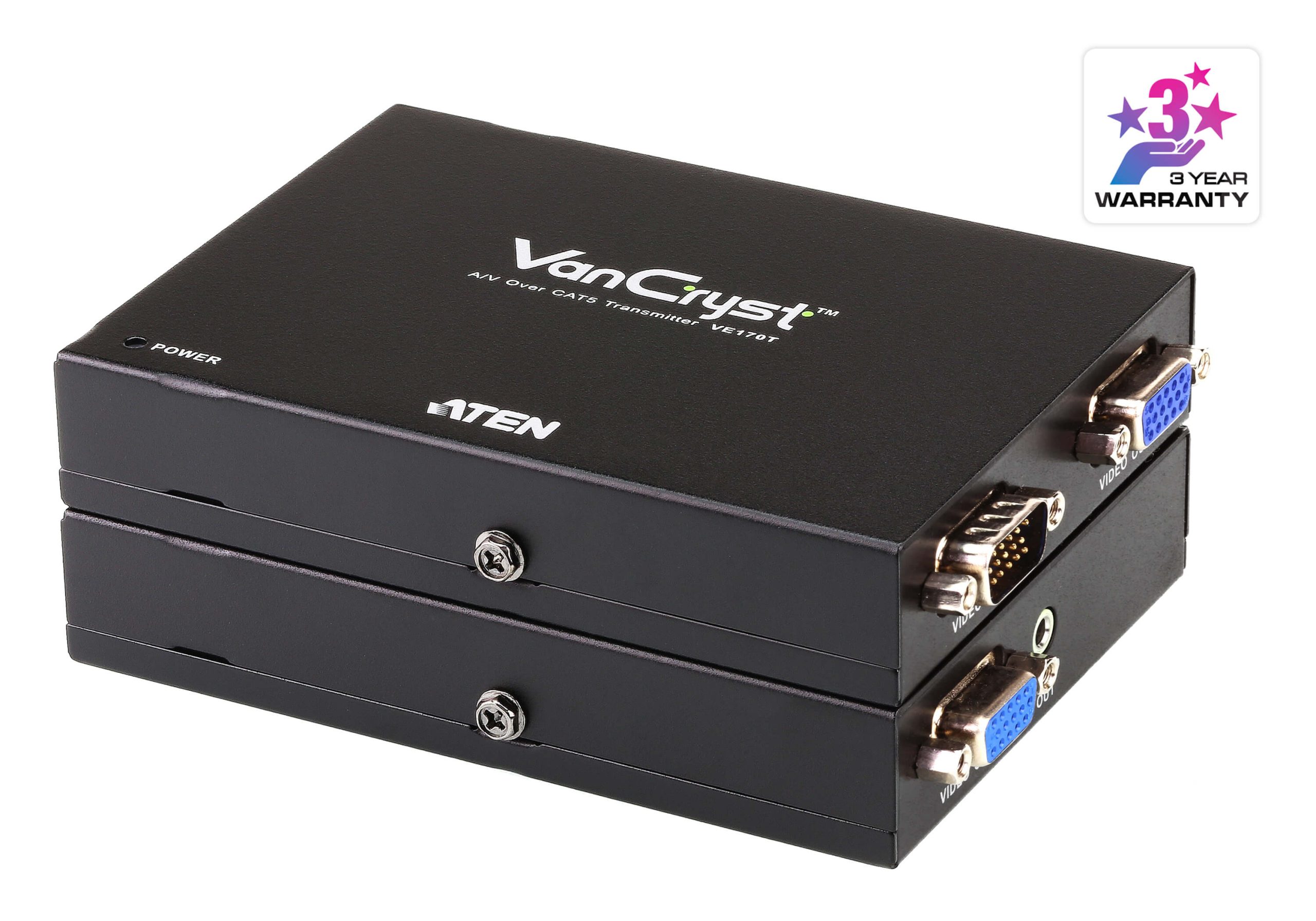

ATEN VE170-AT-G

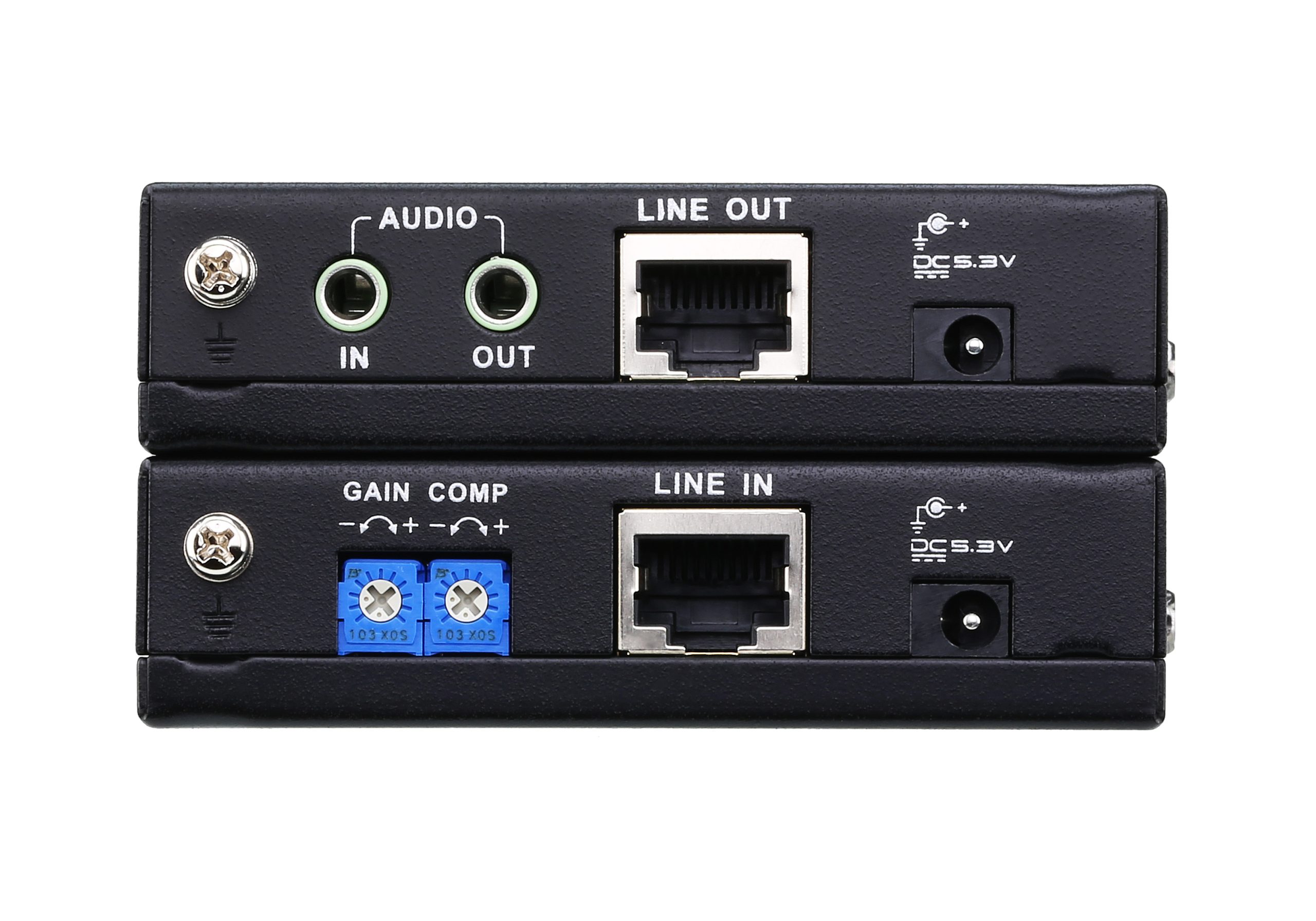

The VE170 VGA / Audio Cat 5 Extenders, consisting of a transmitter (VE170T) and receiver (VE170R), are cost-effective and efficient solutions for sending and receiving high quality audio/video content over long distances. Simply connect the transmitter to the receiver via one Cat 5e cable, and a VGA display or projector can be located up to 300 m (1000 ft) away from the video source.
The VE170 VGA / Audio Cat 5 Extenders provides a flexible solution which is ideal for any professional A/V installation that requires multimedia content to be delivered over a long distance
Package Contents
- 1x VE170T + VE170R VGA/Audio Cat 5 Extender
- 1x VGA/Audio Cable (1.8 m)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User instructions
Specifications
| Function | VE170R | VE170T |
| Video Input | ||
| Interfaces | N/A | 1 x HDB-15 Male (Blue) |
| Impedance | N/A | 75 Ω |
| Max. Distance | N/A | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDB-15 Female (Blue) | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ω | 75 Ω |
| Video | ||
| Max. Bandwidth | 300 MHz | 300 MHz |
| Max. Resolutions / Distance | Up to 1920 x 1200@30m; 1024 x 768@300m | Up to 1920 x 1200@30m; 1024 x 768@300m |
| Audio | ||
| Output | 1 x Mini Stereo Jack Female (Green) | 1 x Mini Stereo Jack Female (Green) |
| Input | N/A | 1 x Mini Stereo Jack Female (Green) |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Environmental | ||
| Operating Temperature | 0-50°C | 0-50°C |
| Storage Temperature | -20 – 60°C | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.24 kg ( 0.53 lb ) | 0.25 kg ( 0.55 lb ) |
| Dimensions (L x W x H) | 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
| Carton Lot | 5 pcs | 5 pcs |
| Power Consumption | DC5.3V:3.32W:16BTU/h
Note: |
DC5.3V:2.42W:11BTU/h
Note: |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
