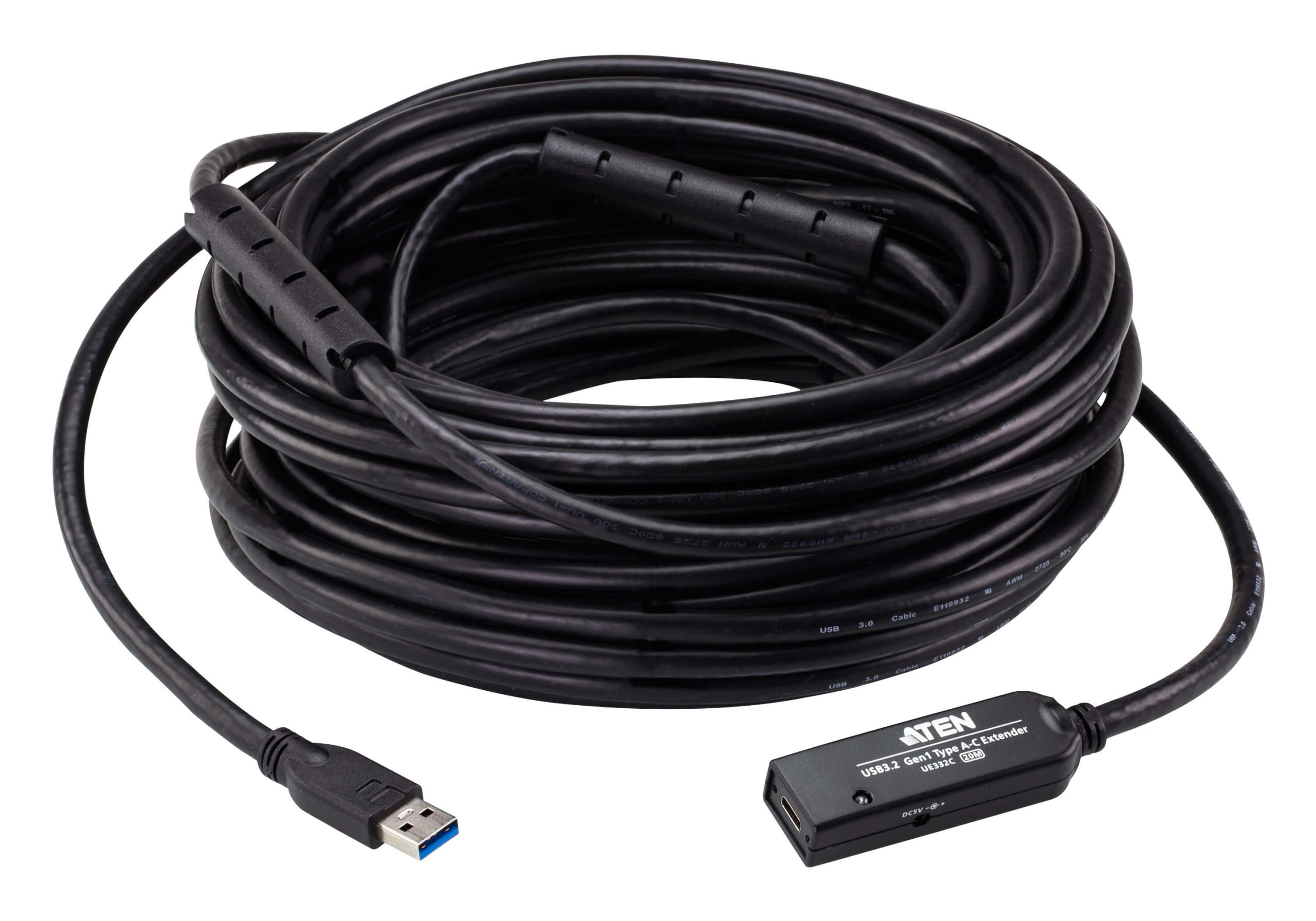

The UE332C is a USB 3.2 Gen 1 extender cable for adding 20 m to the connection between a USB Type-A enabled PC / laptop and a USB-C device. With the support of up to 5 Gbps Super Speed data transfer rates, the UE332C is backward compatible with USB 2.0 and 1.1 standards, ensuring reliable data communication.
Deployment is made more flexible thanks to its lightweight, small form factor with plug-and play design, along with the multiplatform support, including Windows and macOS. The 2 screw holes on the USB-C female connector fulfill the increasing demands for secure interconnection in industrial applications. The UE332C is an ideal solution when it comes to lengthening USB connection while keeping fast, reliable data syncing performance.
Package Contents
- 1 x UE332C 20 M USB 3.2 Gen 1 Extender Cable
- 1 x Power Adapter
- 1 x user instructions
| Connectors | |
| USB Port | 1 x USB3.2 Gen1 Type A Male |
| Downstream | 1 x USB3.2 Gen1 Type C Female |
| USB Specification | USB3.2 Gen1 / 2.0 / 1.1 for Super / High / Full or Low speed |
| Cable Length | 20 m |
| Data Rate | Up to 5 Gbps |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 1.53 kg ( 3.37 lb ) |
| Dimensions (L x W x H) | 6.50 x 1.22 x 1.20 cm (2.56 x 0.48 x 0.47 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
ue331c_332c_usb_extender_ds_en.pdf (702.98 KB)
User Manual
| File Name | Release Date |
| ue331c-ue332c-user-manual-w.pdf (463.82 KB) | 2023-10-12 |
