USB Cat 5 Extender (up to 60 m)
UCE60
UCE60 lets you locate your USB device or hub up to 60m (198 ft) from your computer, overcoming the typical USB cable limitation. It conditions the USB signals to communicate up to 60m using low-cost Ethernet cable

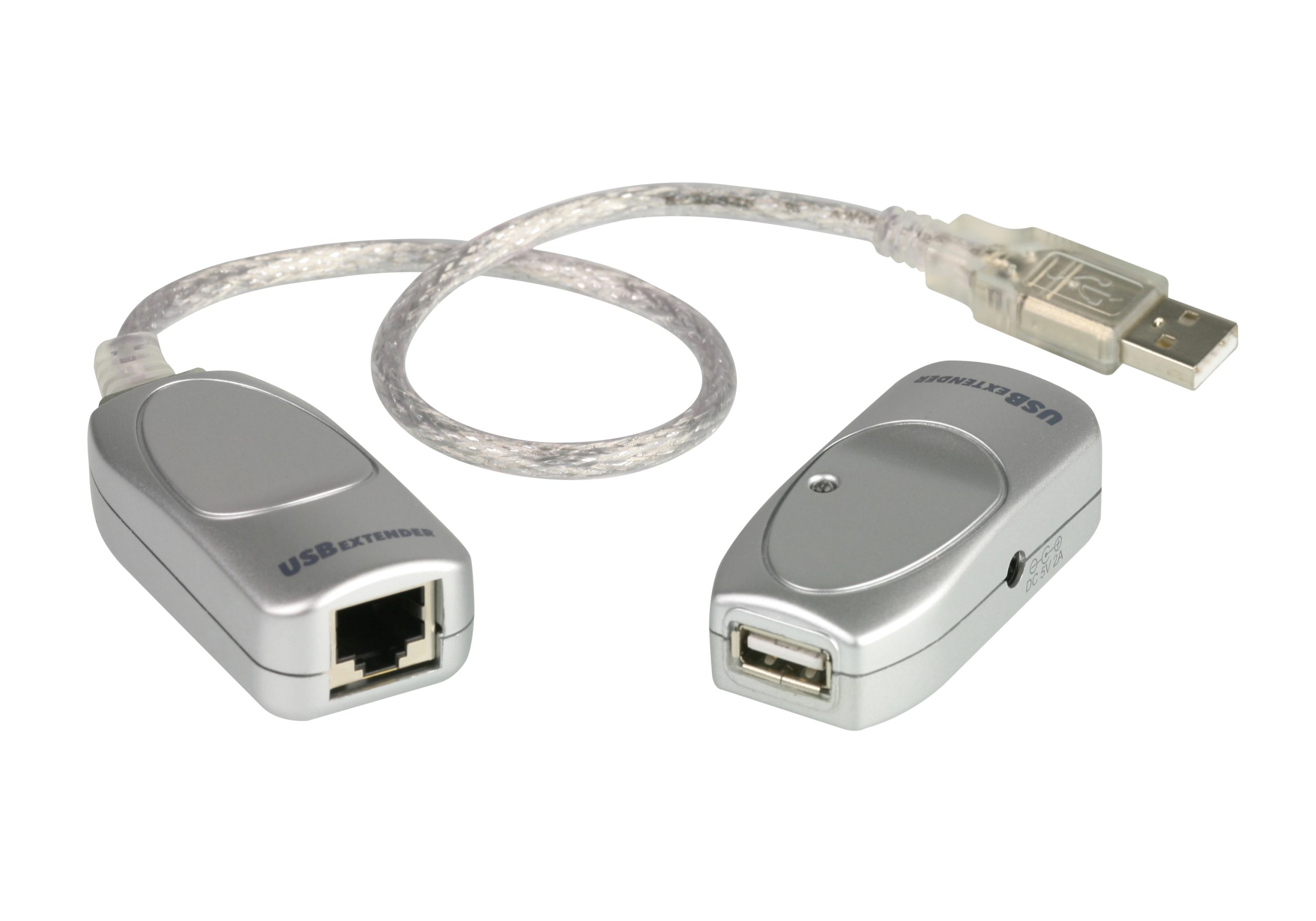

Package Contents
- 1x Local Unit (1 ft USB Cable attached)
- 1x Remote Unit
| Function |
Local Unit |
Remote Unit |
| Connectors |
| USB Port |
1 x USB Type A Male (White) |
1 x USB Type A Female (White) |
| Link |
1 x RJ-45 Female |
1 x RJ-45 Female |
| Power |
N/A |
1 x DC Jack (Optional) |
| USB Specification |
2.0 Full / Low Speed |
2.0 Full / Low Speed |
| Environmental |
| Operating Temperature |
0–40˚C |
0–40˚C |
| Storage Temperature |
-40–85˚C |
-40–85˚C |
| Humidity |
0–80% RH, Non-condensing |
0–80% RH, Non-condensing |
| Physical Properties |
| Housing |
Plastic |
Plastic |
| Weight |
0.03 kg ( 0.09 lb ) |
0.02 kg ( 0.05 lb ) |
| Dimensions (L x W x H) |
6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.) |
6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
uce60-usb-extender-datasheet-en.pdf (589.44 KB)
