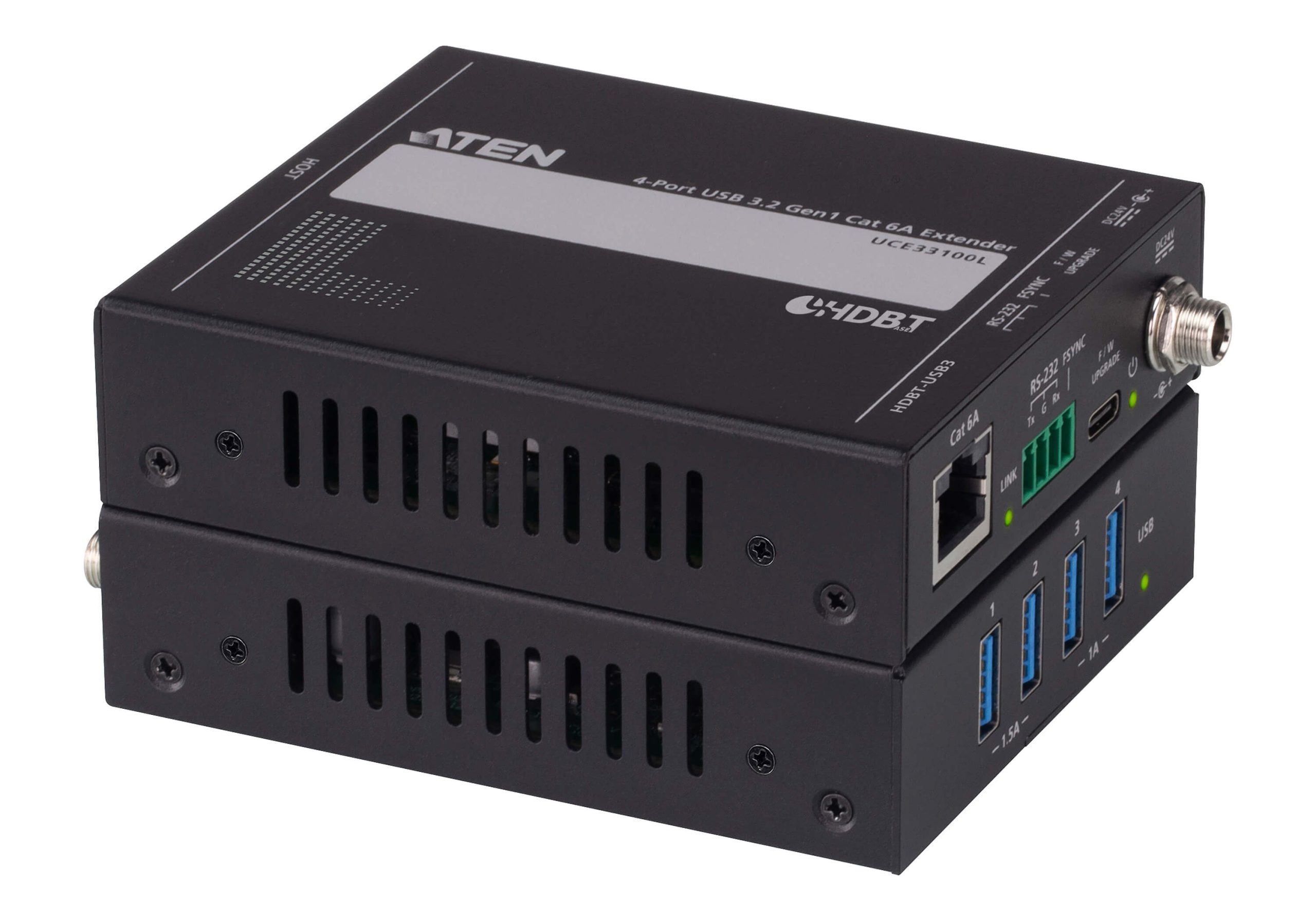

4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m)
UCE33100
As the scope of meeting rooms continually evolves, it’s critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office
Package Contents
- 1x UCE33100 Local and Remote Units
- 1x USB 3.2 Gen 1 Type-A to USB Type-B cable(1.2 m)
- 2x 4-pin terminal blocks
- 4x mounting kits
- 1x power adapter
- 1x user instructions

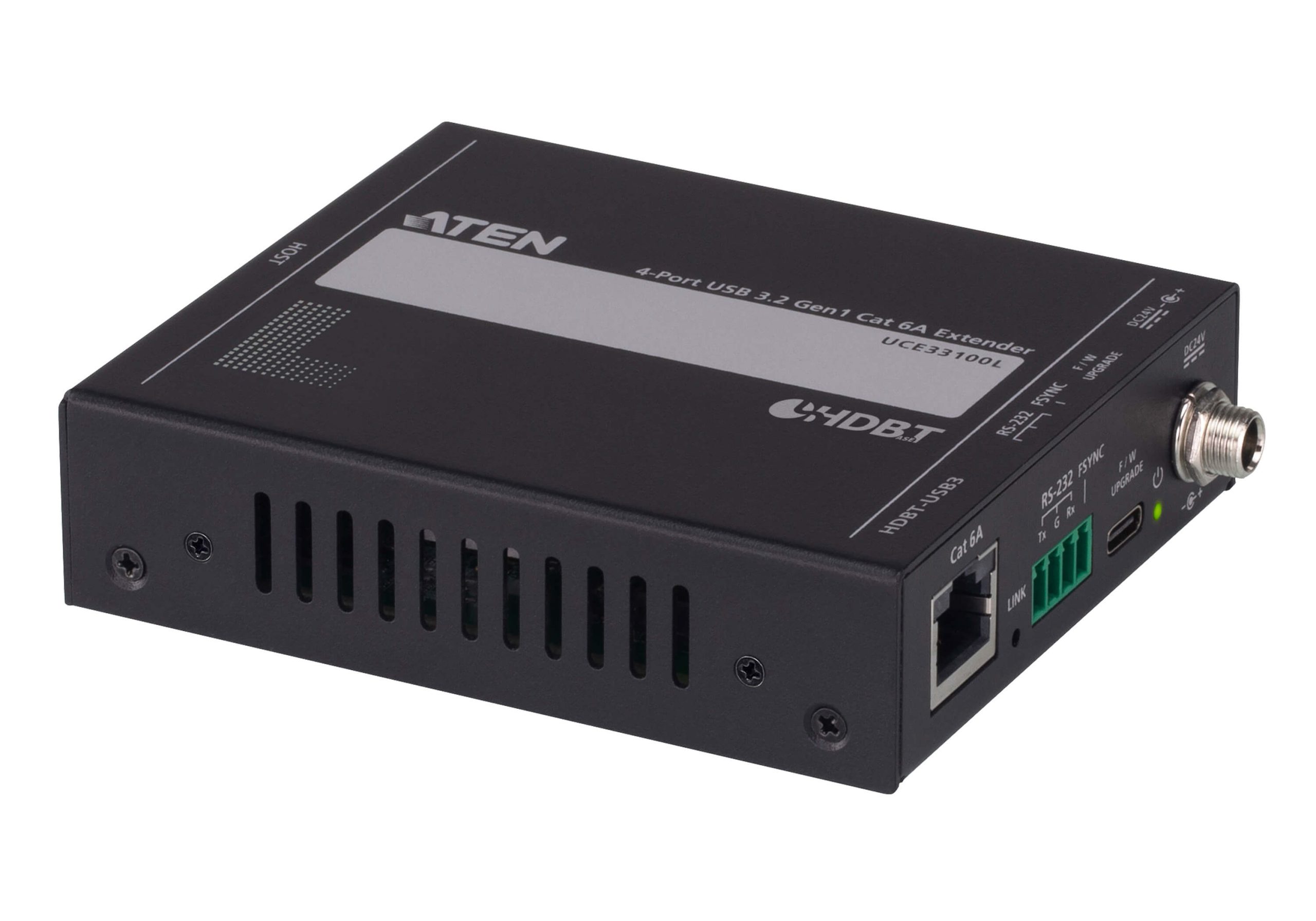

| Local Unit | |
| Upstream Port | 1 x USB Type B Female |
| Downstream Port | 1 x RJ45 Female, HDBT-USB3 1 x USB Type C Female (Firmware Upgrade) 1 x 3-pin Terminal Plug (RS-232) 1 x 1-pin Terminal Plug (FSYNC) Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use. |
| Power | 1 x DC Jack |

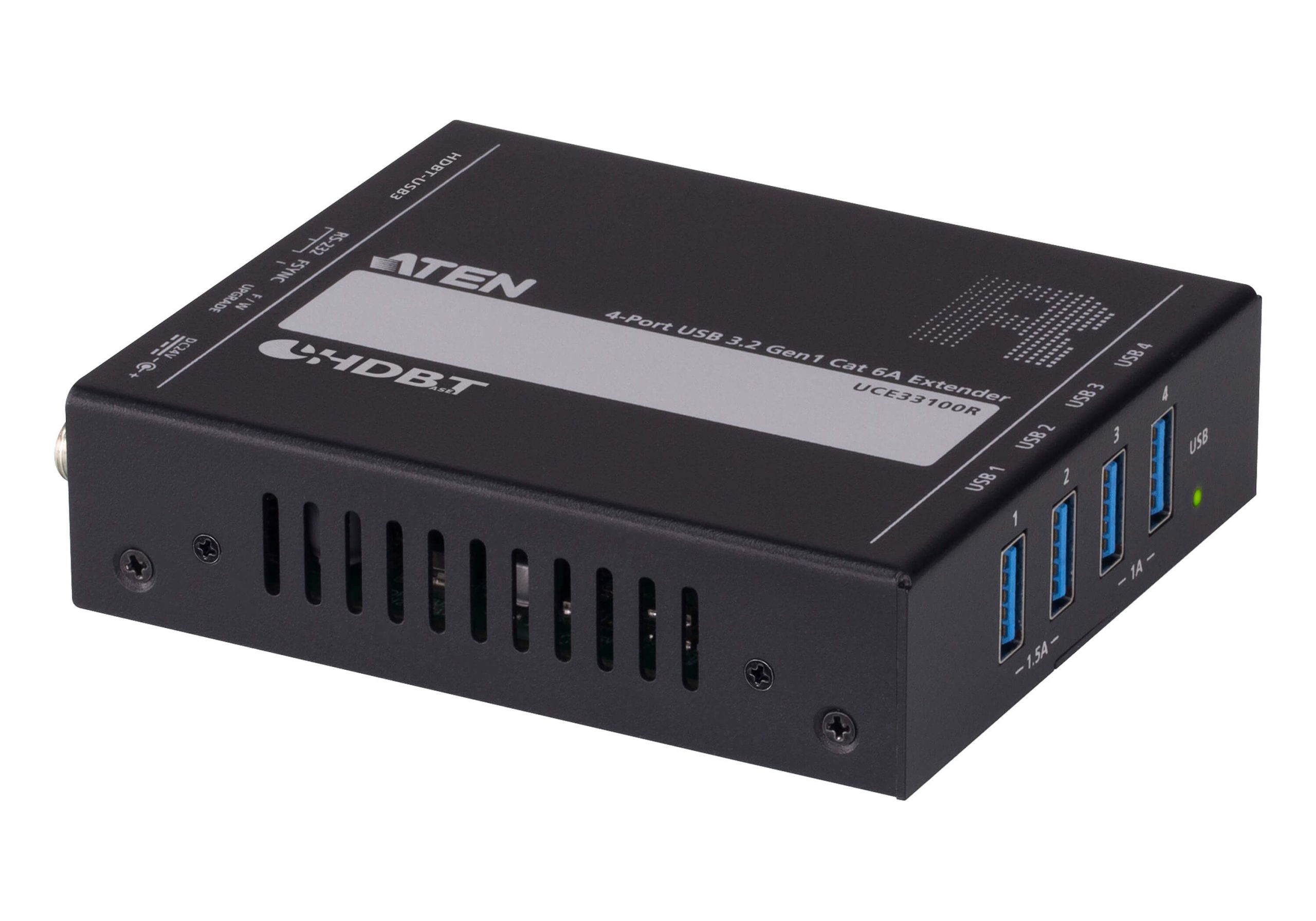

| Remote Unit | |
| Upstream Port | 1 x RJ45 Female, HDBT-USB3 |
| Downstream Port | 4 x USB Type A Female 1 x USB Type C Female (Firmware Upgrade) 1 x 3-pin Terminal Plug (RS-232) 1 x 1-pin Terminal Plug (FSYNC) Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use. |
| Power | 1 x DC Jack |
| USB Specification | USB3.2 Gen1 |
| Cable Type | Cat 6A Ethernet Cable Note: We recommend using cables of HDBaseT 3.0 Certified Cat 6A U/FTP cable for a better transmission. |
| Signal Range | 100m |
| LEDs | |
| Status | 3 x LED |
| Power Consumption | DC24V:1.92WBTU/h DC24V:2.64WBTU/h Note: |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 20–90% RH, Non-condensing |
| Physical Properties | |
| Weight | 0.26 kg ( 0.57 lb ) |
| Housing | Metal Enclosure |
| Dimensions (L x W x H) | 10.75 x 8.50 x 2.55 cm (4.23 x 3.35 x 1 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
uce33100-4-port-USB-3.2-Gen1-Cat-6A-Extender-datasheet-en.pdf (1.12 MB)
User Manual
| File Name | Release Date |
| uce33100-user-manual-w.pdf (565.1 KB) | 2025-07-24 |
