USB 2.0 Cat 5 Extender (up to 60 m)
UCE260
UCE260 can easily send the USB signals via Ethernet Cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m from your computer, which overcomes the typical USB cable limitation

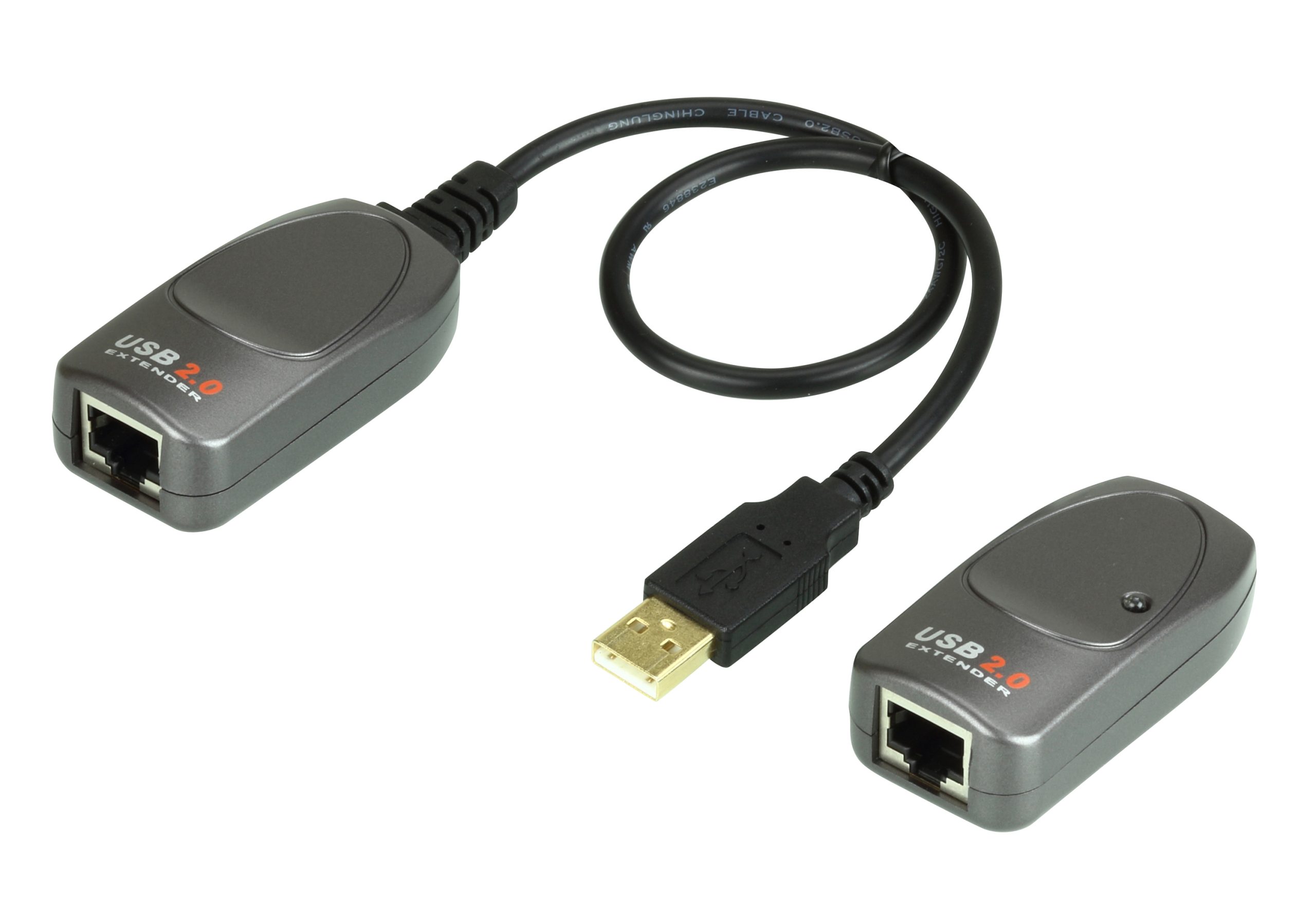

Package Contents
- 1x Local Unit with USB Cable
- 1x Remote Unit
- 1x Power Adapter (5V, 2.6A)
- 1x User Instructions
| Function | Local Unit | Remote Unit |
| Connectors | ||
| USB Port | 1 x USB Type A Male | 1 x USB Type A Female |
| Link | 1 x RJ45 Female | 1 x RJ45 Female |
| Power | N/A | 1 x DC Power Jack |
| USB Specification | 2.0 For High / Full / Low Speed | 2.0 For High / Full / Low Speed |
| USB Devices Supported | N/A | 1 Device 【Note】Please verify the compatibility of the USB video device with the manufacturer. |
| Power Consumption | DC5V:0.65W:3BTU/h
Note: |
DC5V:0.95W:15BTU/h
Note: |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Plastic | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) | 0.02 kg ( 0.05 lb ) |
| Dimensions (L x W x H) | 6.30 x 3.10 x 2.19 cm (2.48 x 1.22 x 0.86 in.) |
6.30 x 3.10 x 2.19 cm (2.48 x 1.22 x 0.86 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
