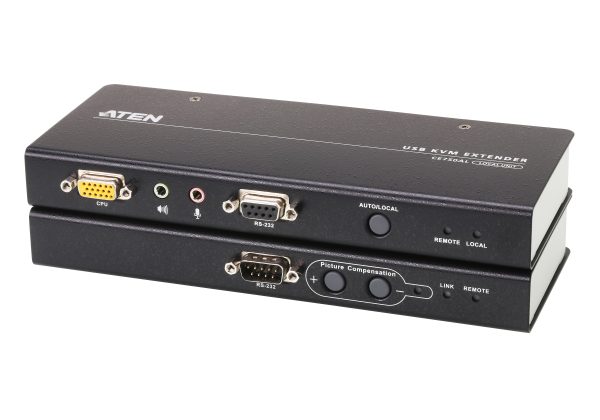

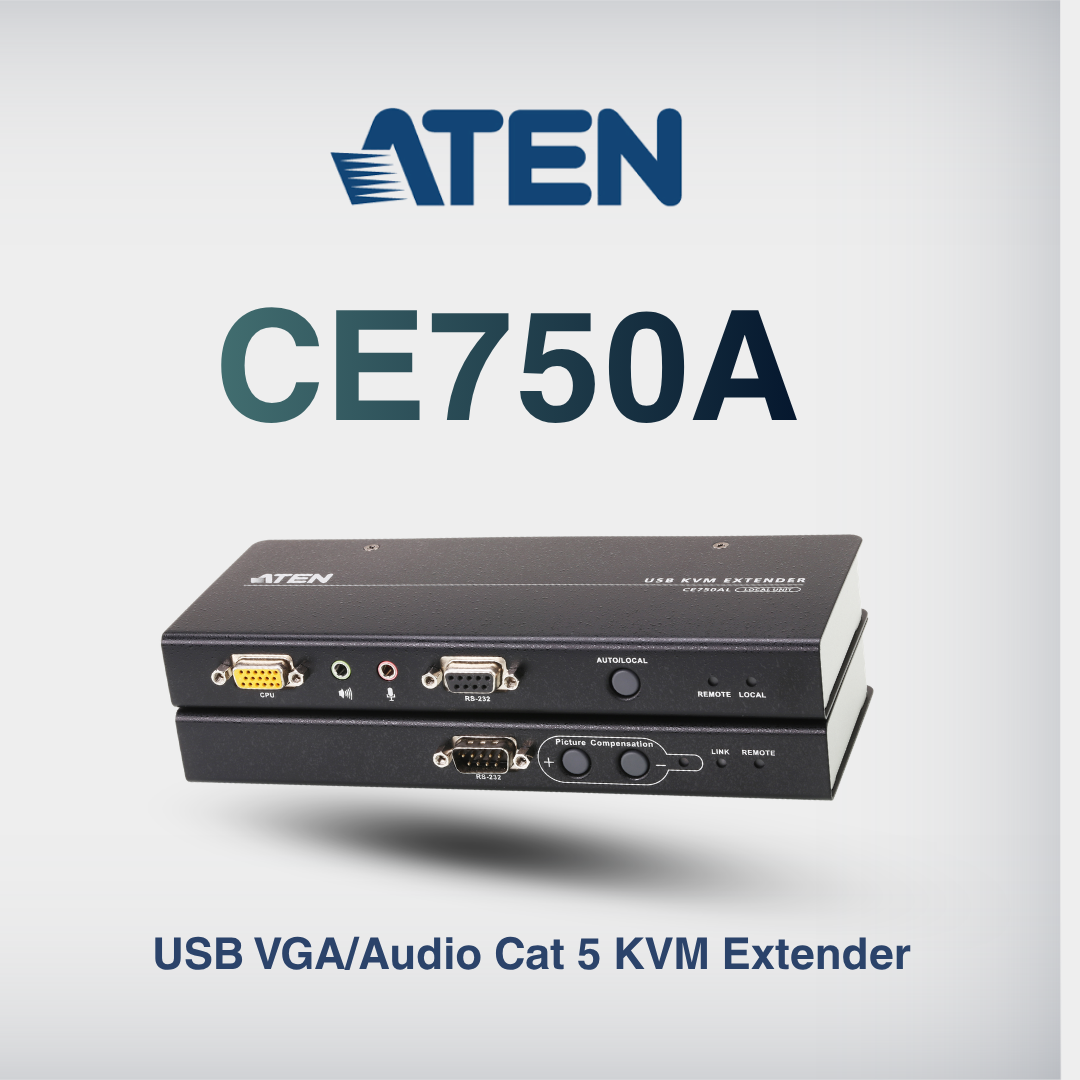

ATEN CE750A-AT-G
USB Audio KVM Extender. 1600×1200 (150m). 1280×1024 (200m). 8KV ESD and 2KV surge protection.

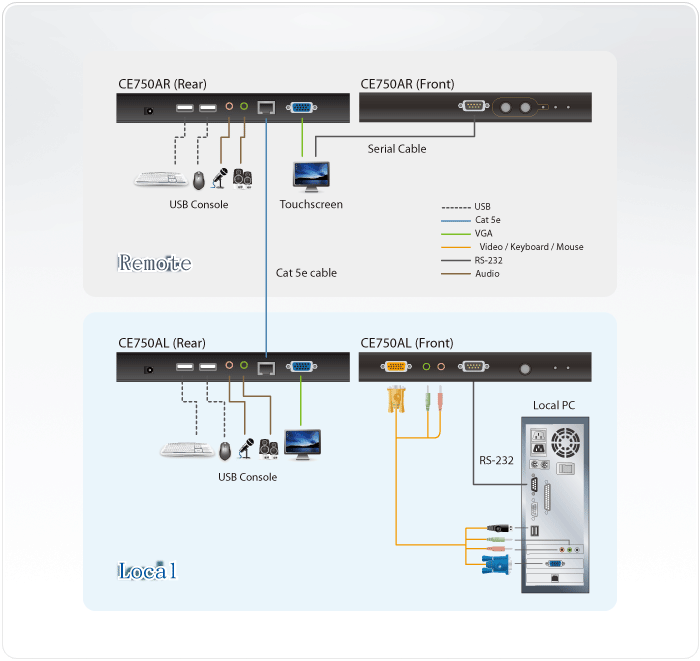

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.

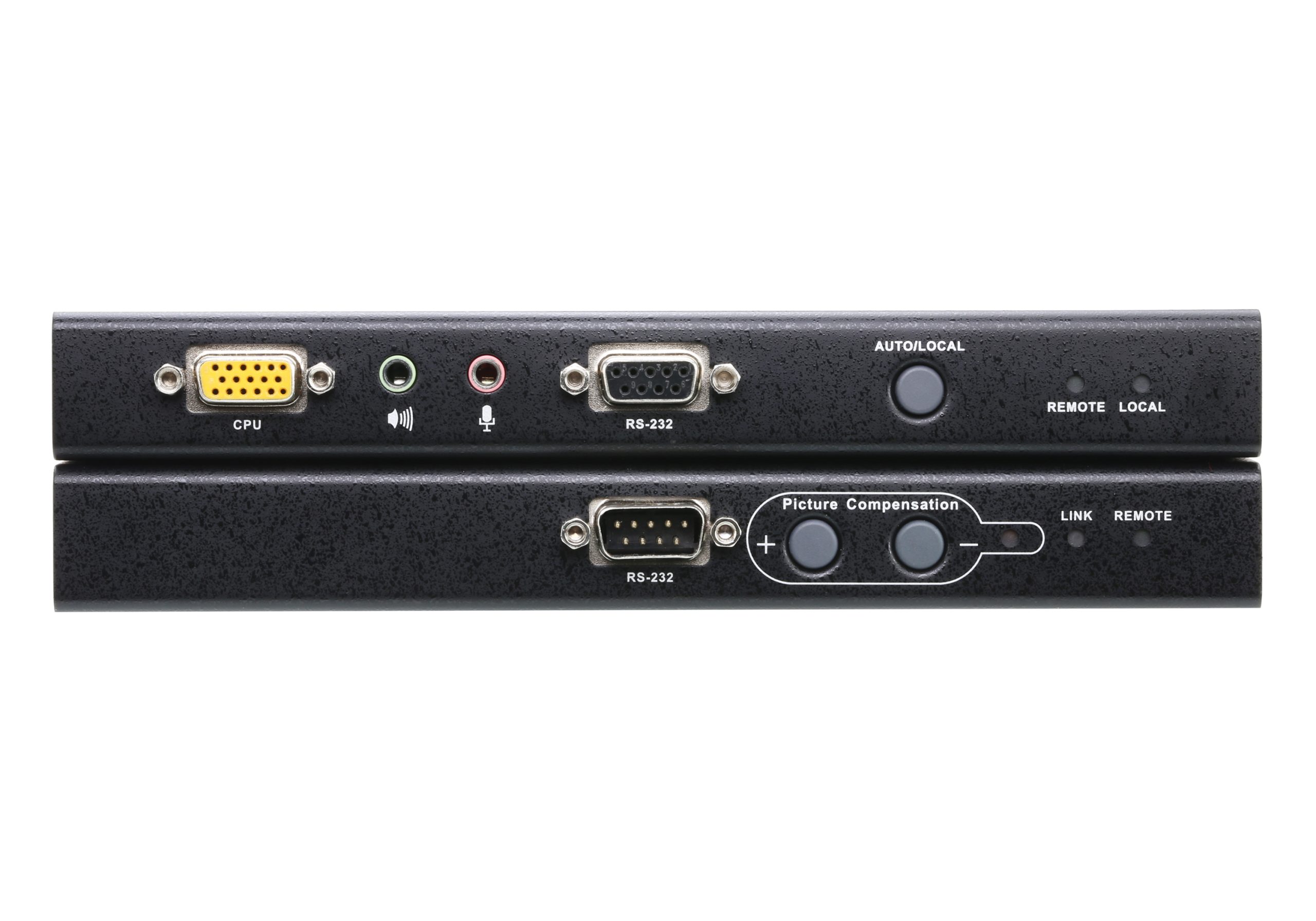

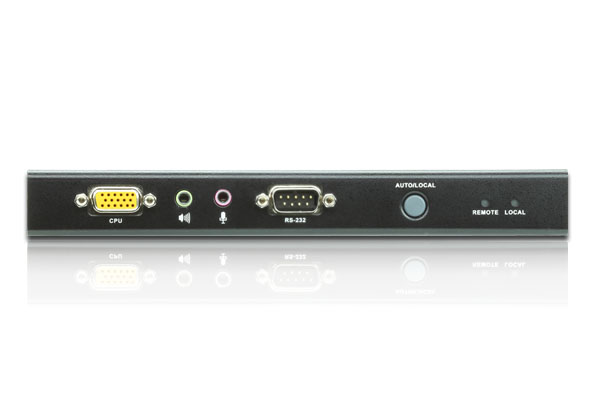

The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).
Package Contents
- 1x CE750AL USB KVM Extender (Local Unit)
- 1x CE750AR USB KVM Extender (Remote Unit)
- 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Spesification
| Function | CE750AL | CE750AR |
| Connectors | ||

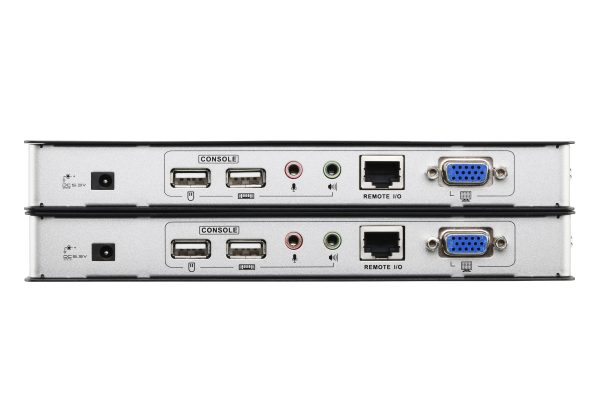

| Console Ports | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x SPHD-15 Female (Yellow) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Remote | 1 (Green) | 1 (Green) |
| Link | N/A | 1 (Green) |
| Local | 1 (Green) | N/A |
| Picture Compensation | N/A | 1 (Orange) |
| Pushbuttons | ||
| Operating Mode Selection | 1 x Pushbutton | N/A |
| Picture Compensation | N/A | 2 x Pushbuttons |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Video | 1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1280×1024@60Hz at 200m |
1920×1200@60Hz at 30m; 1600×1200@60Hz at 150m; 1280×1024@60Hz at 200m |
| Power Consumption | DC5.3V:2.44W:16BTU/h
Note: |
DC5.3V:3.27W:20BTU/h
Note: |
| Environmental | ||
| Operating Temperature | 0-50˚C | 0-50˚C |
| Storage Temperature | -20-60˚C | -20-60˚C |
| Humidity | 0-80% RH, Non-condensing | 0-80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.47 kg ( 1.04 lb ) | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.63 x 2.50 cm (7.95 x 3.4 x 0.98 in.) |
20.20 x 8.51 x 2.50 cm (7.95 x 3.35 x 0.98 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
