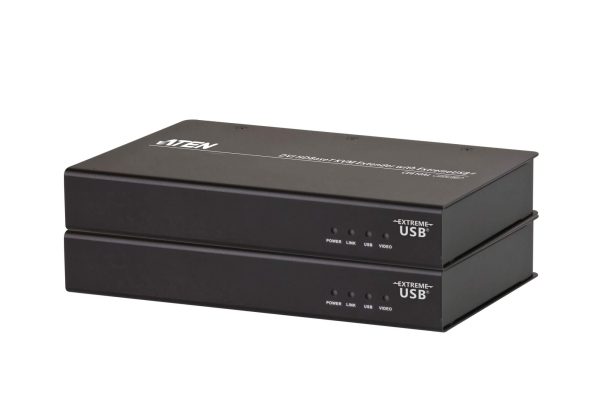

ATEN CE610A-AT-G
Mini USB DVI HDBaseT KVM Extender
The CE610 USB 2.0 DVI KVM Extender is a DVI and USB Extender that supports.

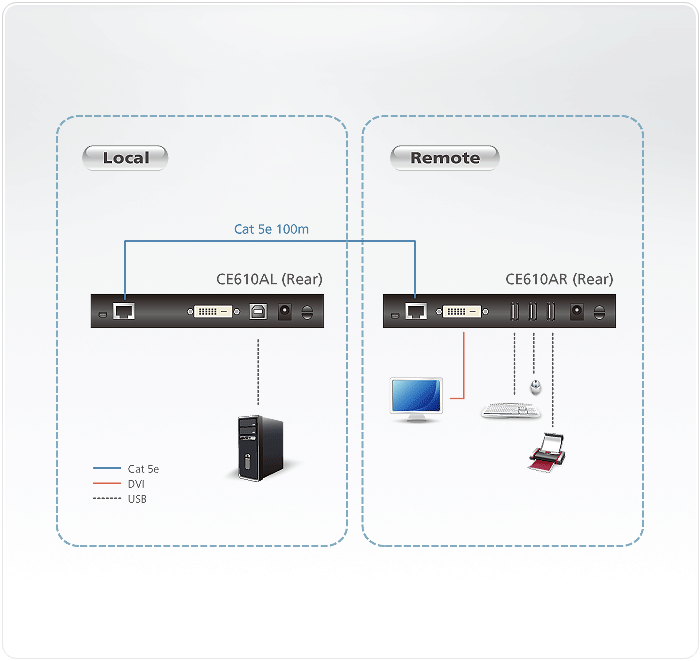

ExtremeUSB® and HDBaseT technology. The CE610 USB 2.0 DVI KVM Extender can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
The CE610 is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also provides support for touch panel control and file transfer. The CE610 is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files/ folders between portable and desktop computers are required.
- 1x CE610L DVI KVM Extender (Local Unit)
- 1x CE610R DVI KVM Extender (Remote Unit)
- 1x Custom DVI 1.8m Cable
- 1x 1.8 m USB Cable
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
| Function |
CE610L |
CE610R |

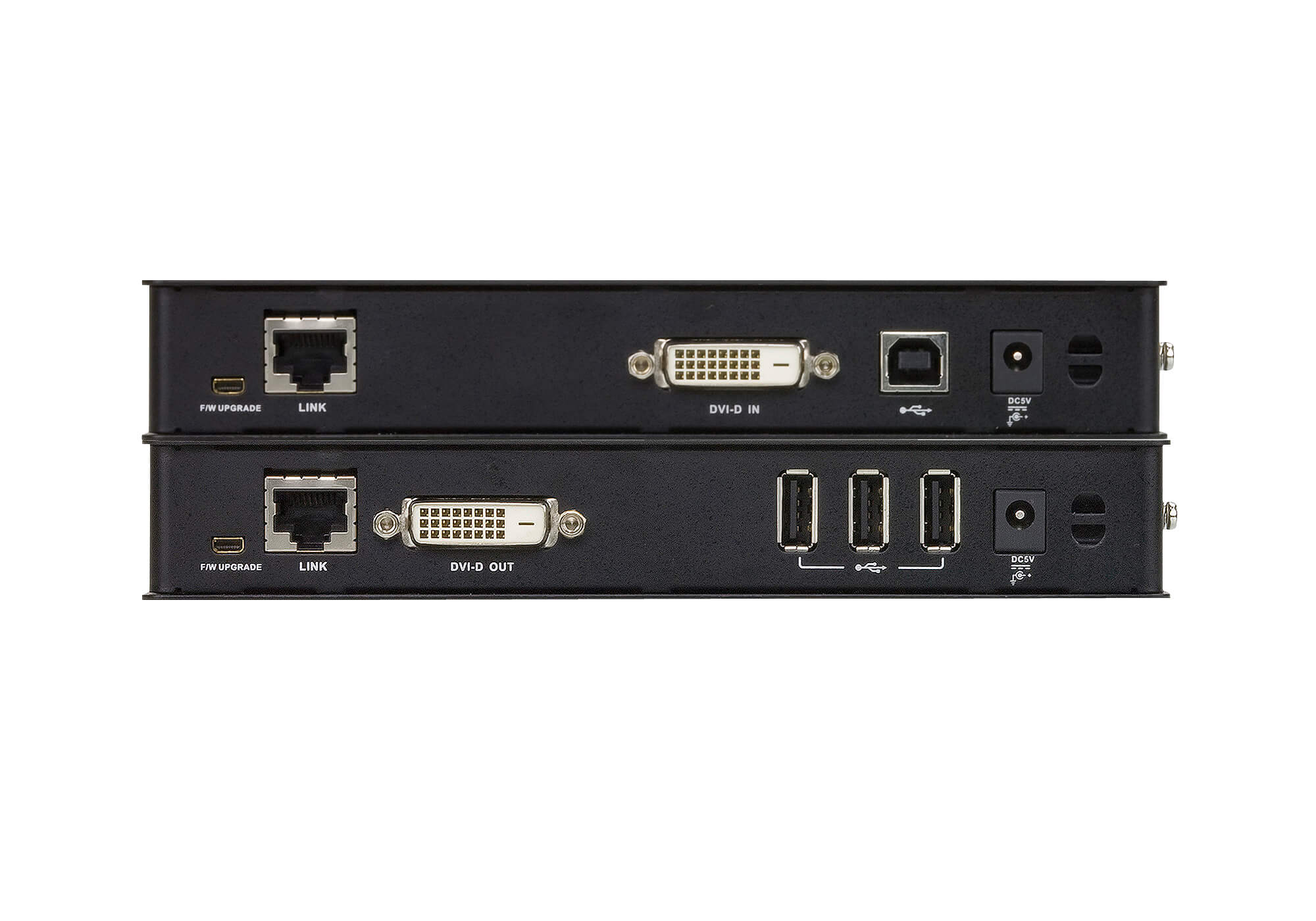

| Connectors |
| Video In |
1 x DVI-D Female (White) |
N/A |
| Video Output |
N/A |
1 x DVI-D Female (White) |
| USB Port |
1 x USB Type B Female (White) |
3 x USB Type A Female (White) |
| Power |
1 x DC Jack |
1 x DC Jack |
| Firmware Upgrade |
1 x mini-USB |
1 x mini-USB |
| Unit To Unit |
1 x RJ-45 Female (Black) |
1 x RJ-45 Female (Black) |

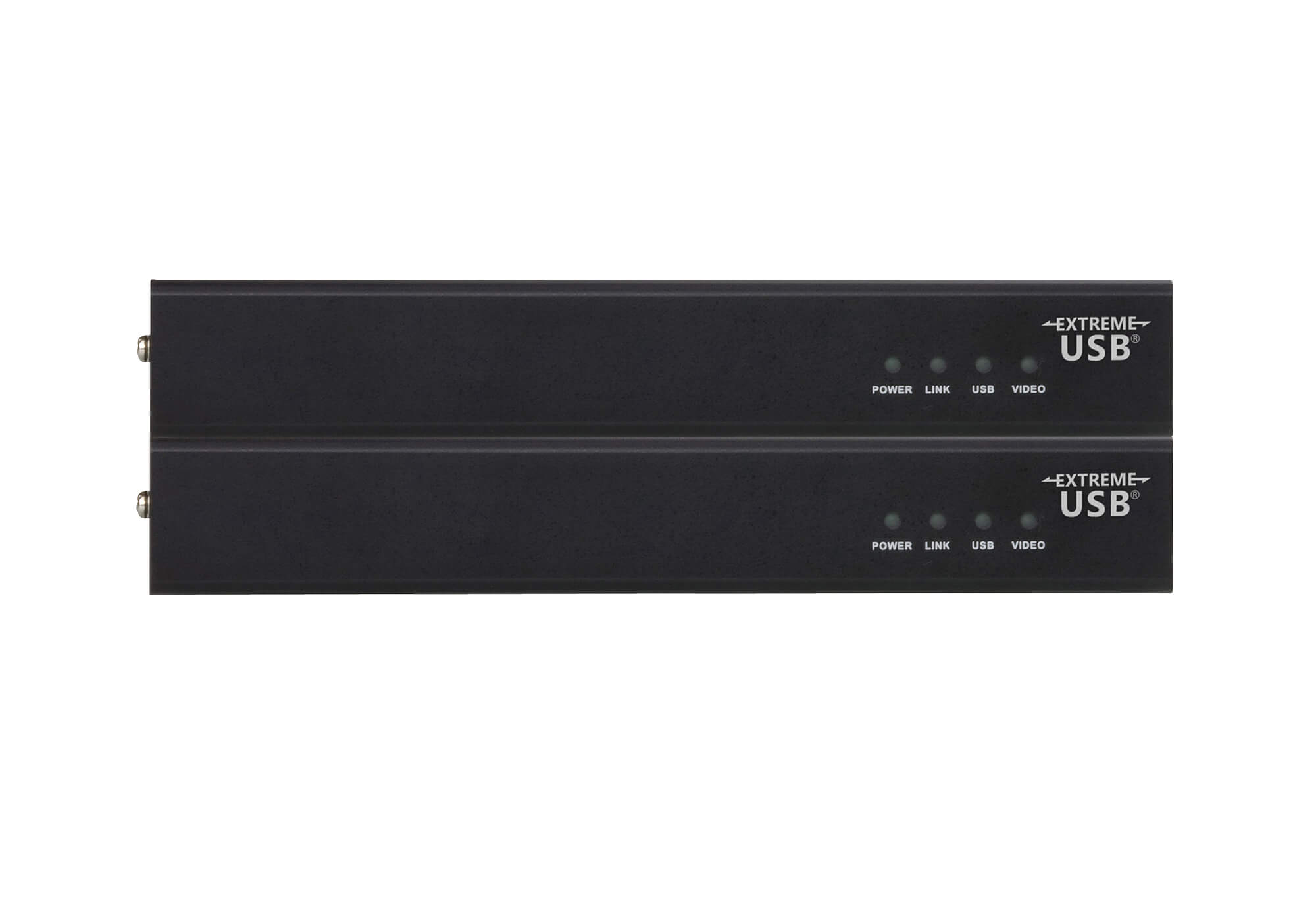

| LEDs |
| Power |
1 (Green) |
1 (Green) |
| Link |
1 (Green) |
1 (Green) |
| USB |
1 (Green) |
1 (Green) |
| Video |
1 (Green) |
1 (Green) |
| USB |
USB 2.0 (Transfer Rate: Up to 30Mbps) |
USB 2.0 (Transfer Rate: Up to 30Mbps) |
| Video |
1920 x 1200 @ 60Hz (100 m) |
1920 x 1200 @ 60Hz (100 m) |
| Power Consumption |
DC 5V, 15 W
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
DC 5V, 15 W
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental |
| Operating Temperature |
0–50°C |
0–50°C |
| Storage Temperature |
-20–60°C |
-20–60°C |
| Humidity |
0–80% RH, Non-condensing |
0–80% RH, Non-condensing |
| Physical Properties |
| Housing |
Metal |
Metal |
| Weight |
0.62 kg ( 1.37 lb ) |
0.62 kg ( 1.37 lb ) |
| Dimensions (L x W x H) |
18.20 x 11.79 x 2.87 cm
(7.17 x 4.64 x 1.13 in.) |
18.20 x 11.79 x 2.87 cm
(7.17 x 4.64 x 1.13 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
