ATEN CE100
USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)

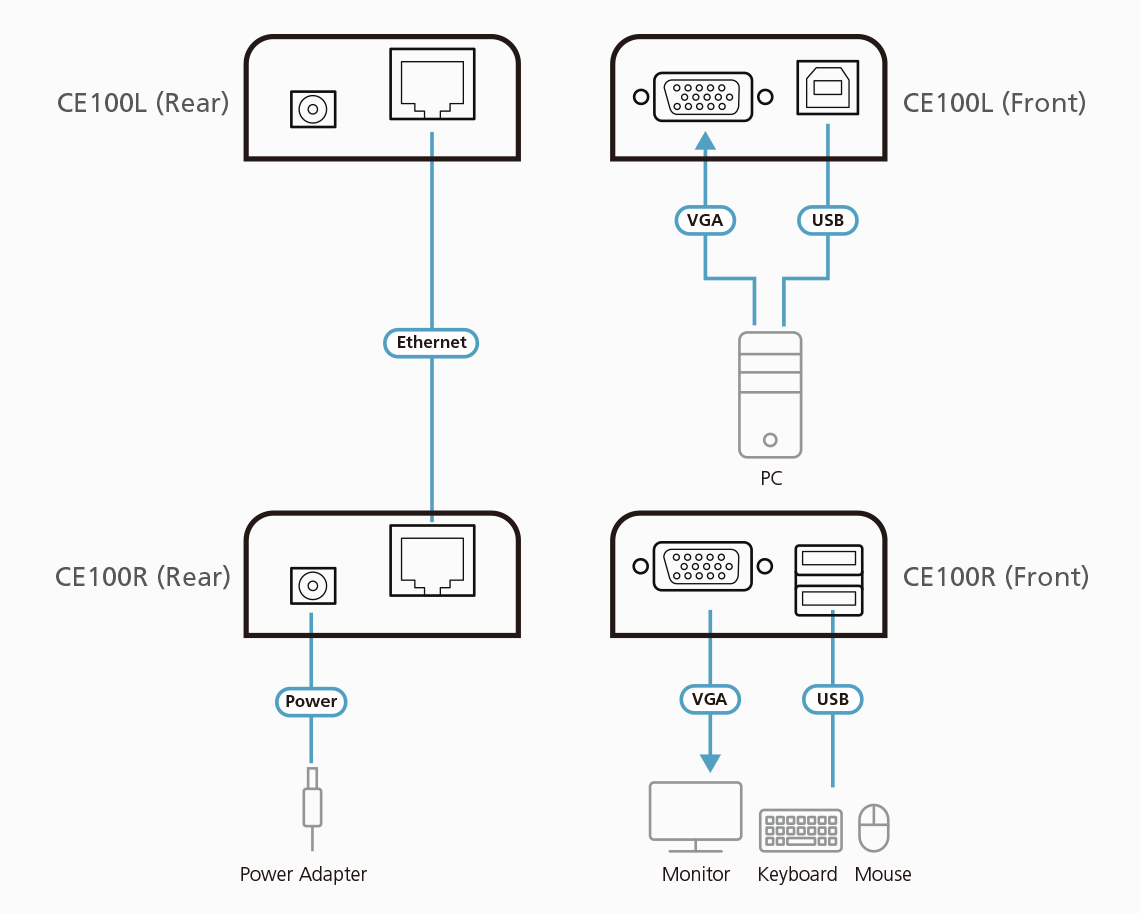

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

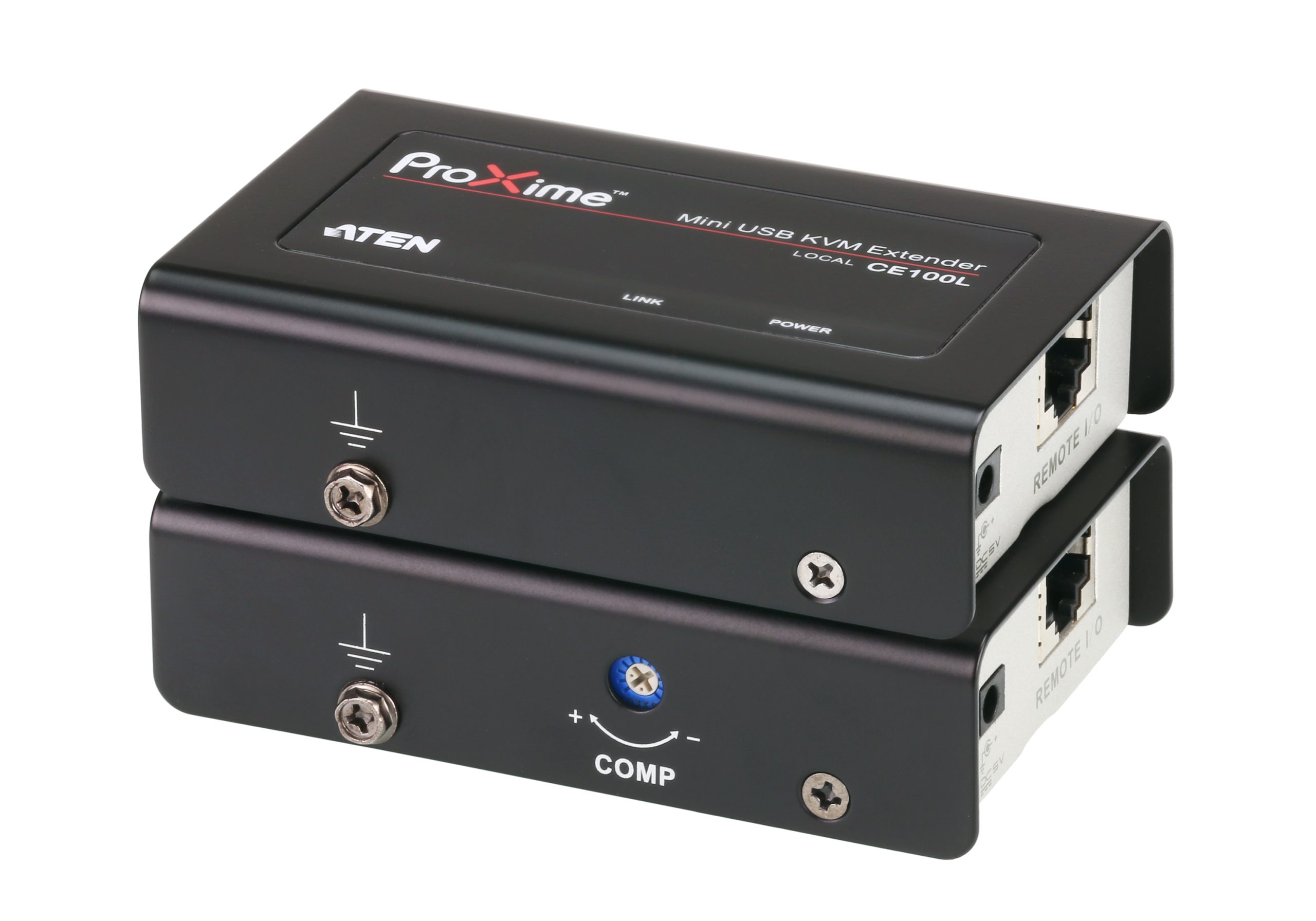

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
Spesification
| Function | CE100L | CE100R |
| Connectors | ||

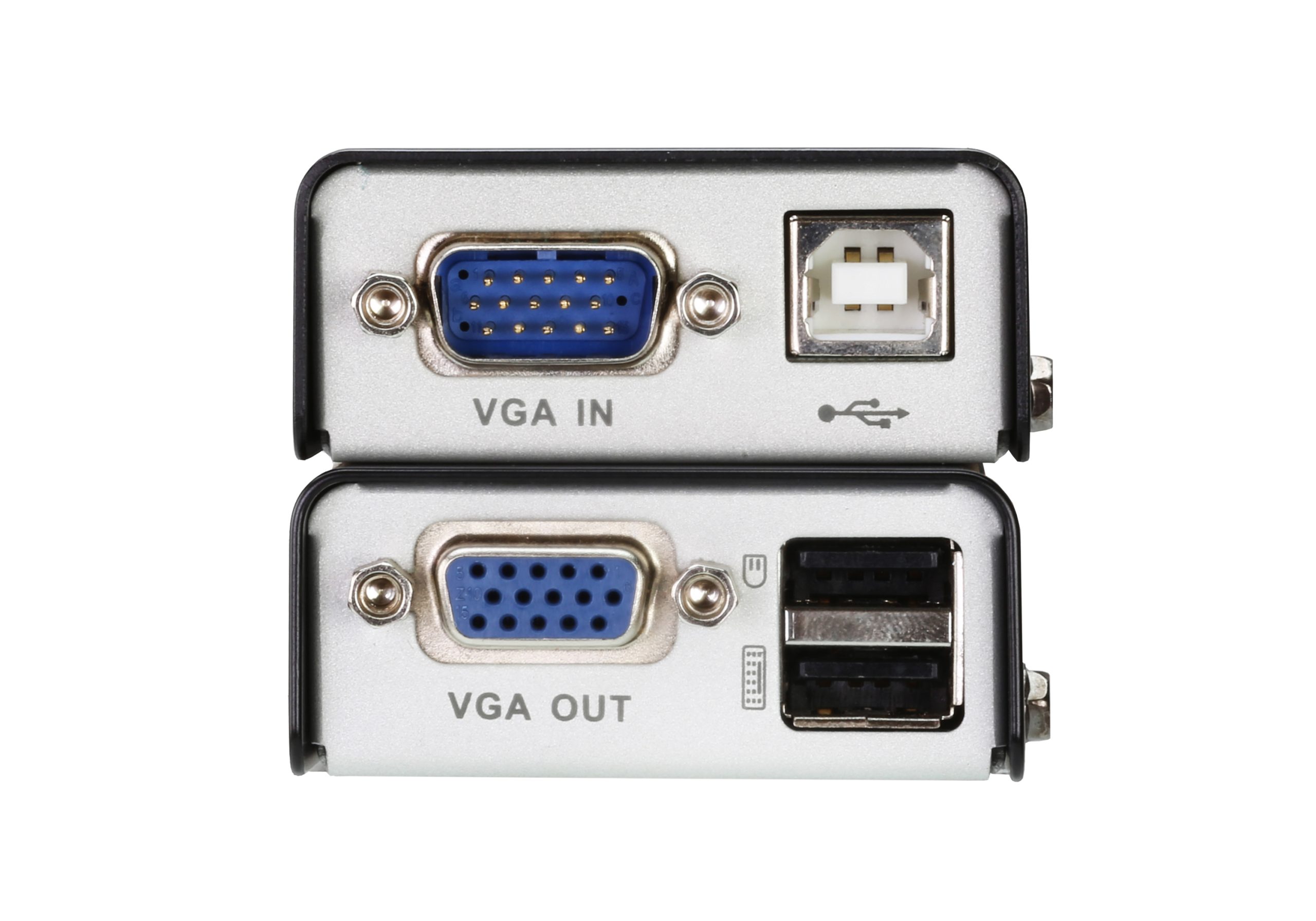

| Console Ports | N/A | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) |
| KVM Ports | 1 x USB Type B Female (White) 1 x HDB-15 Male (Blue) |
N/A |
| Power | 1 x DC Jack | 1 x DC Jack |

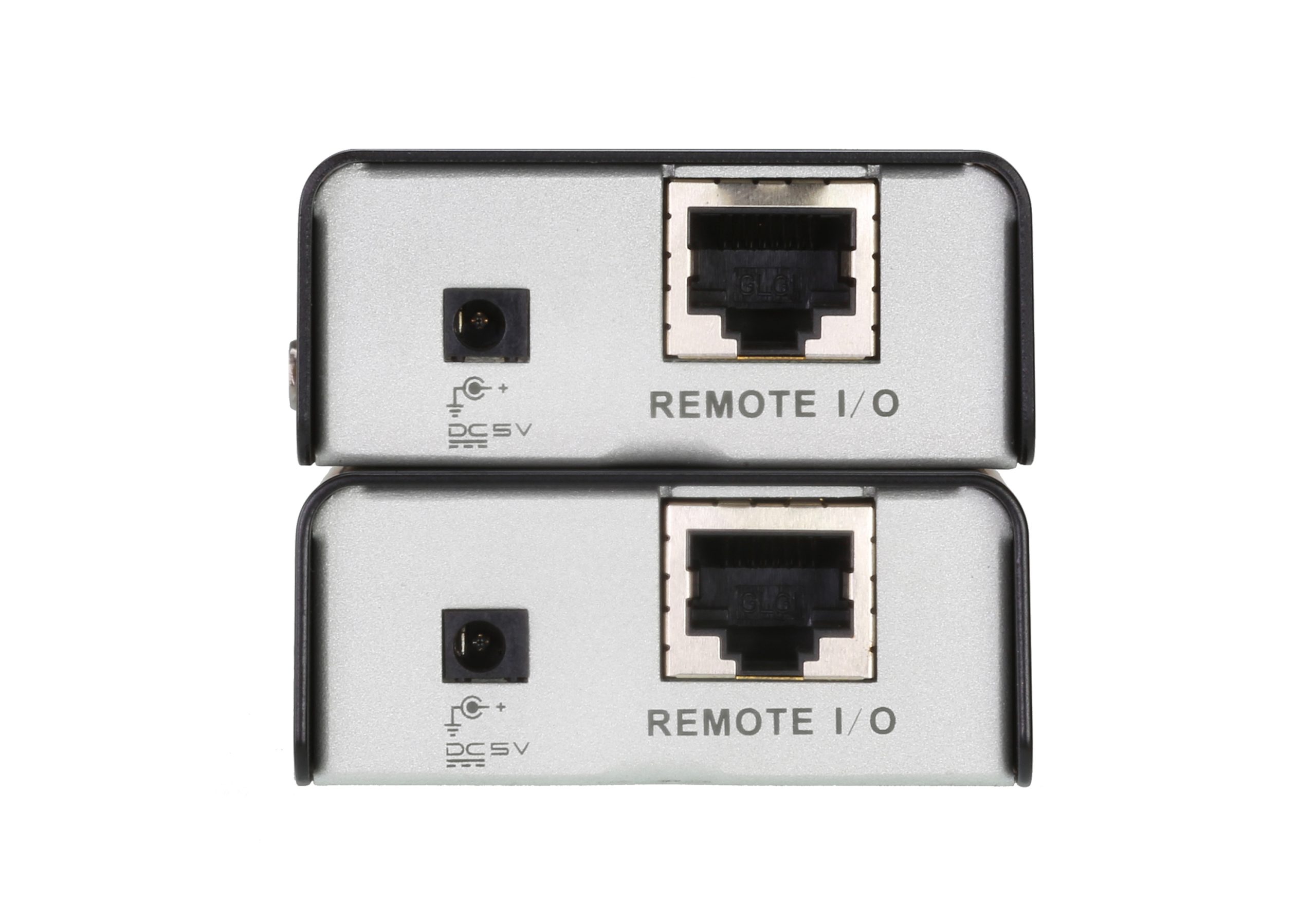

| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| Switches | N/A | 1 x Knob |
| LEDs | ||
| Link | 1 (Blue) | 1 (Blue) |
| Power | 1 (Green) | 1 (Green) |
| Video | 1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m) |
1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m) |
| Power Consumption | DC5V:0.68W:7BTU/h
Note: |
DC5V:0.99W:9BTU/h
Note: |
| Environmental | ||
| Operating Temperature | 0–50°C | 0–50°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.17 kg ( 0.37 lb ) | 0.17 kg ( 0.37 lb ) |
| Dimensions (L x W x H) | 9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.) |
9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
