BEACON AV-9531

4K@60 KVM Extender over IP with Video-Wall

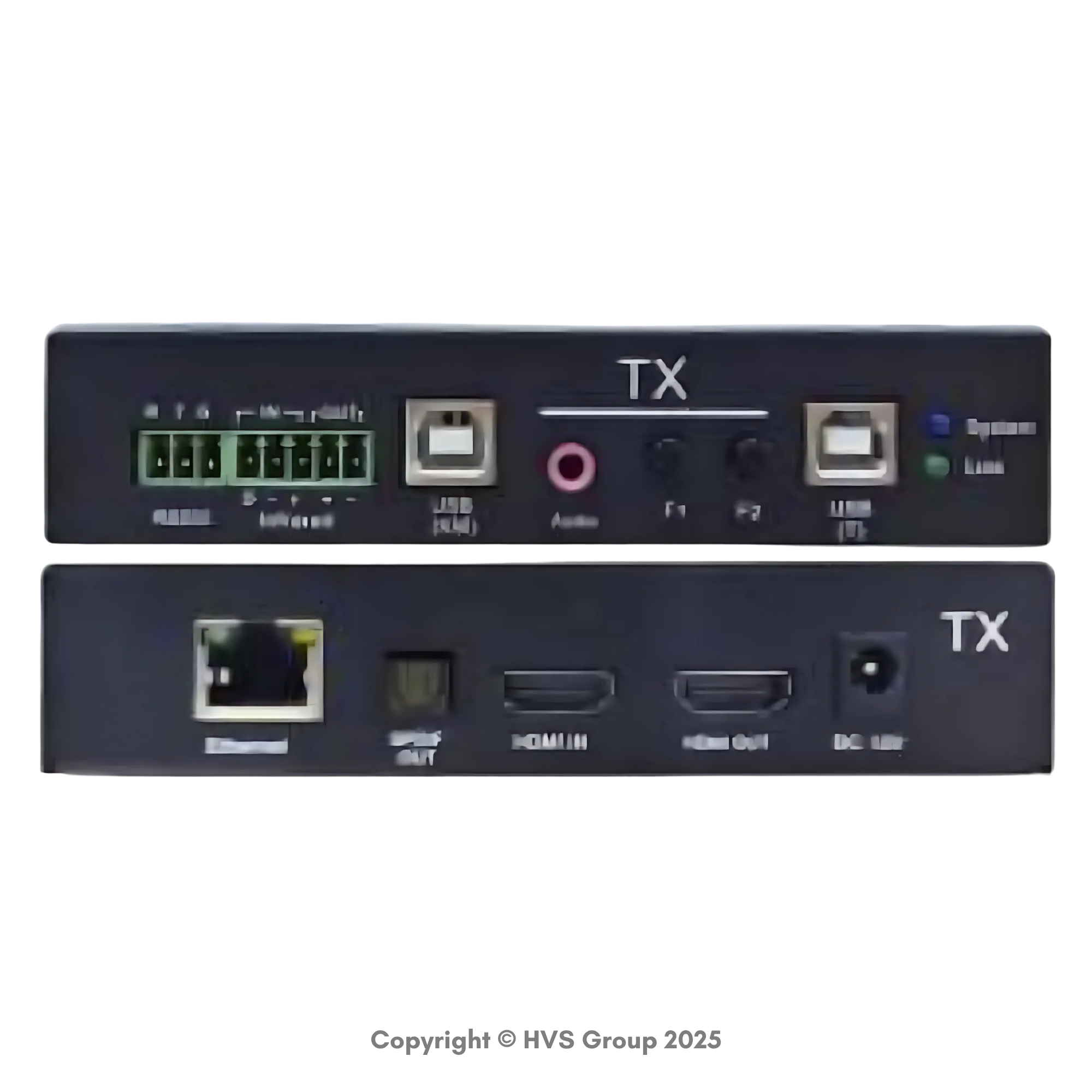

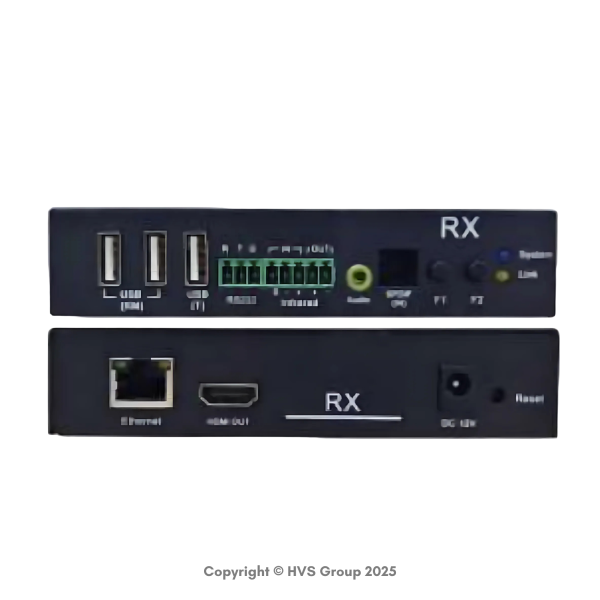

The AV-9531 KVM over IP Extender is a powerful solution for transmitting uncompressed 4K@60Hz HDMI, audio, USB, and RS-232 signals over Gigabit Ethernet. The system includes the AV-9531T Transmitter (TX) and AV-9531R Receiver (RX).

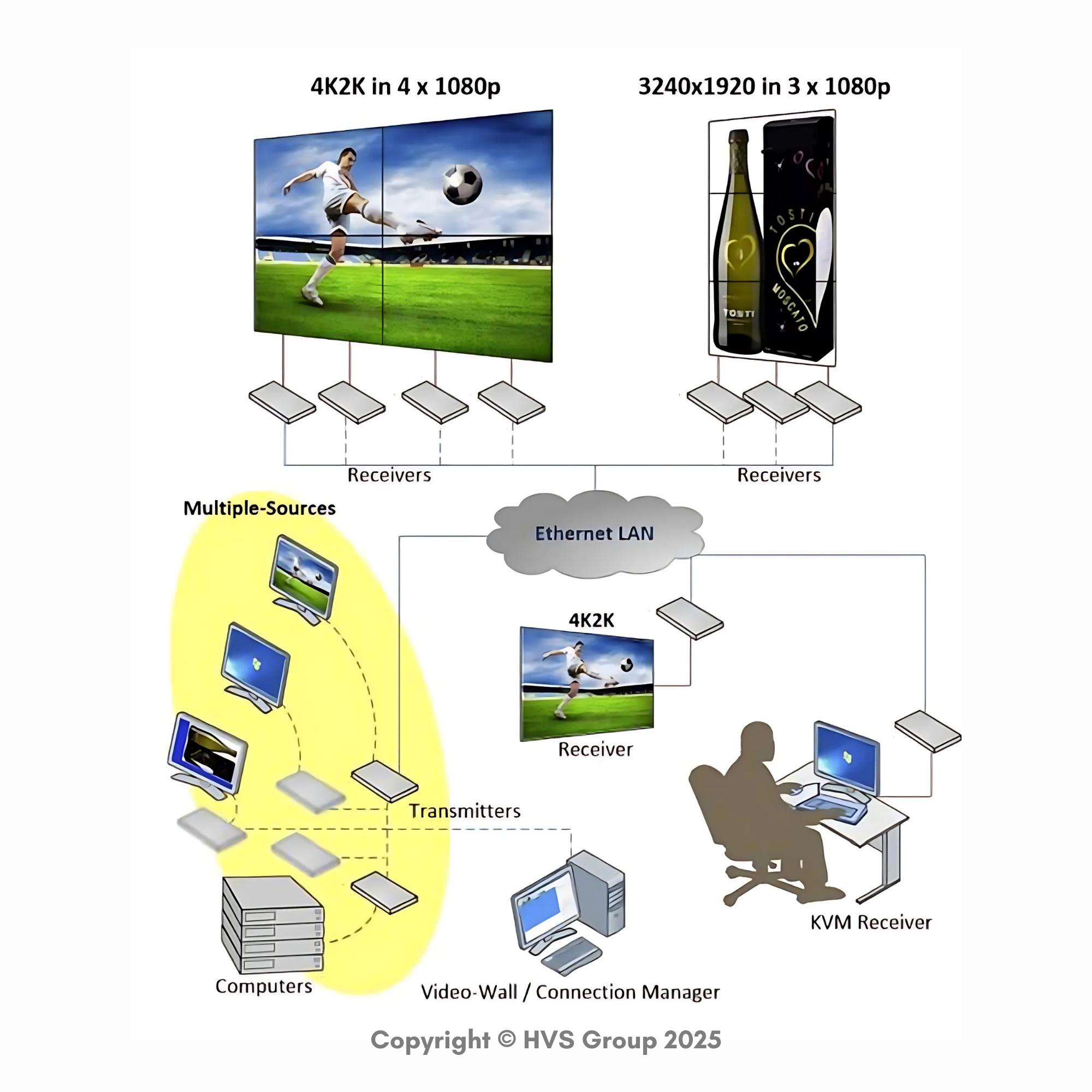

The transmitter connects to a 4K video source (e.g., PC or Blu-ray player), while the receiver connects to displays, audio devices, and USB peripherals. The device utilizes IP technology to convert signals into IP packets, which are transmitted through a Gigabit switch and converted back on the receiver side.

With built-in scaling, rotation (90°, 180°, 270°), and video wall support, the AV-9531 is well-suited for professional environments including broadcasting, military, courtrooms, education, and digital signage.
