BEACON AV-9520

4K KVM over IP Extender with Video-Wall

AV-9520 – 4K KVM over IP Solution with USB/IR/RS232 via Gigabit Ethernet

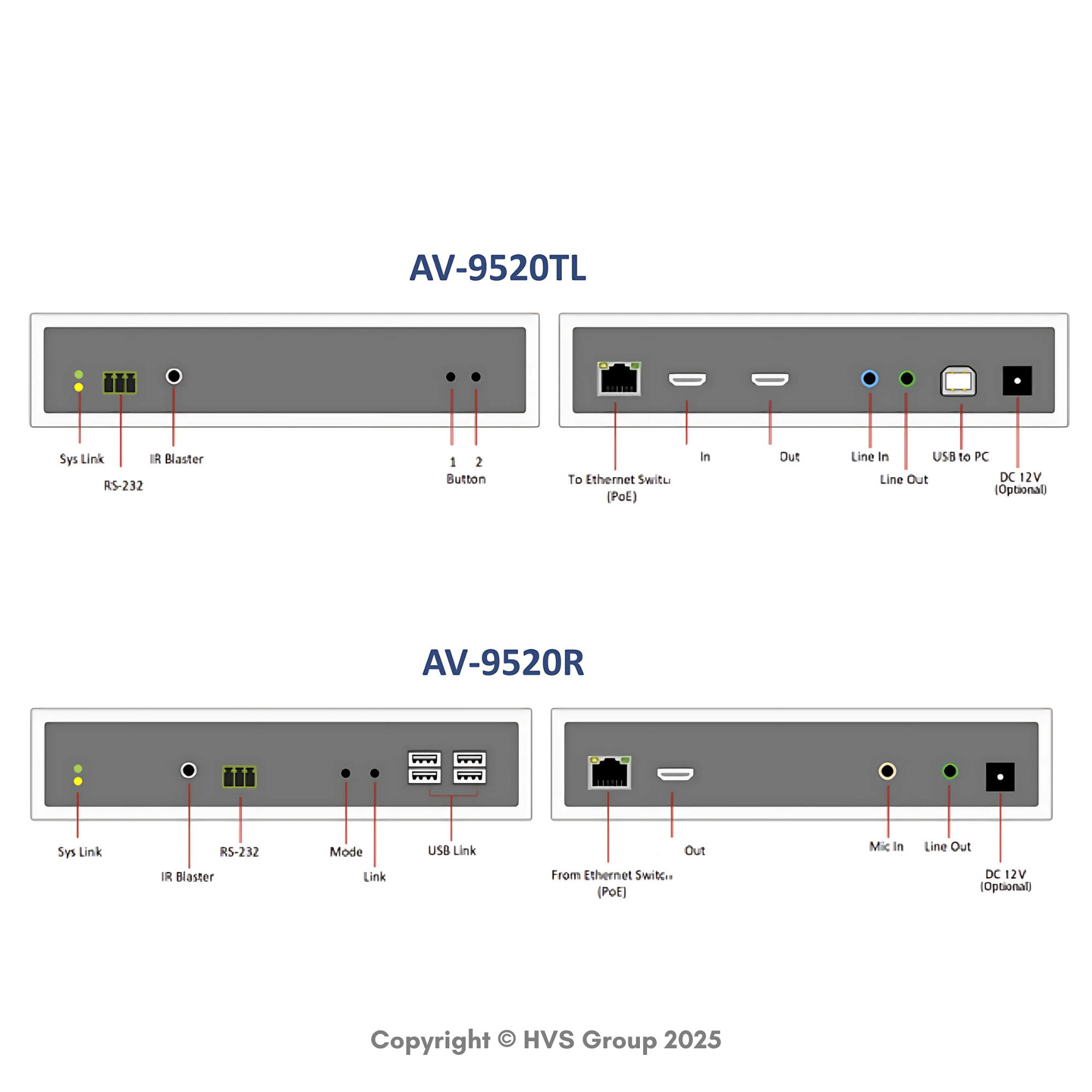

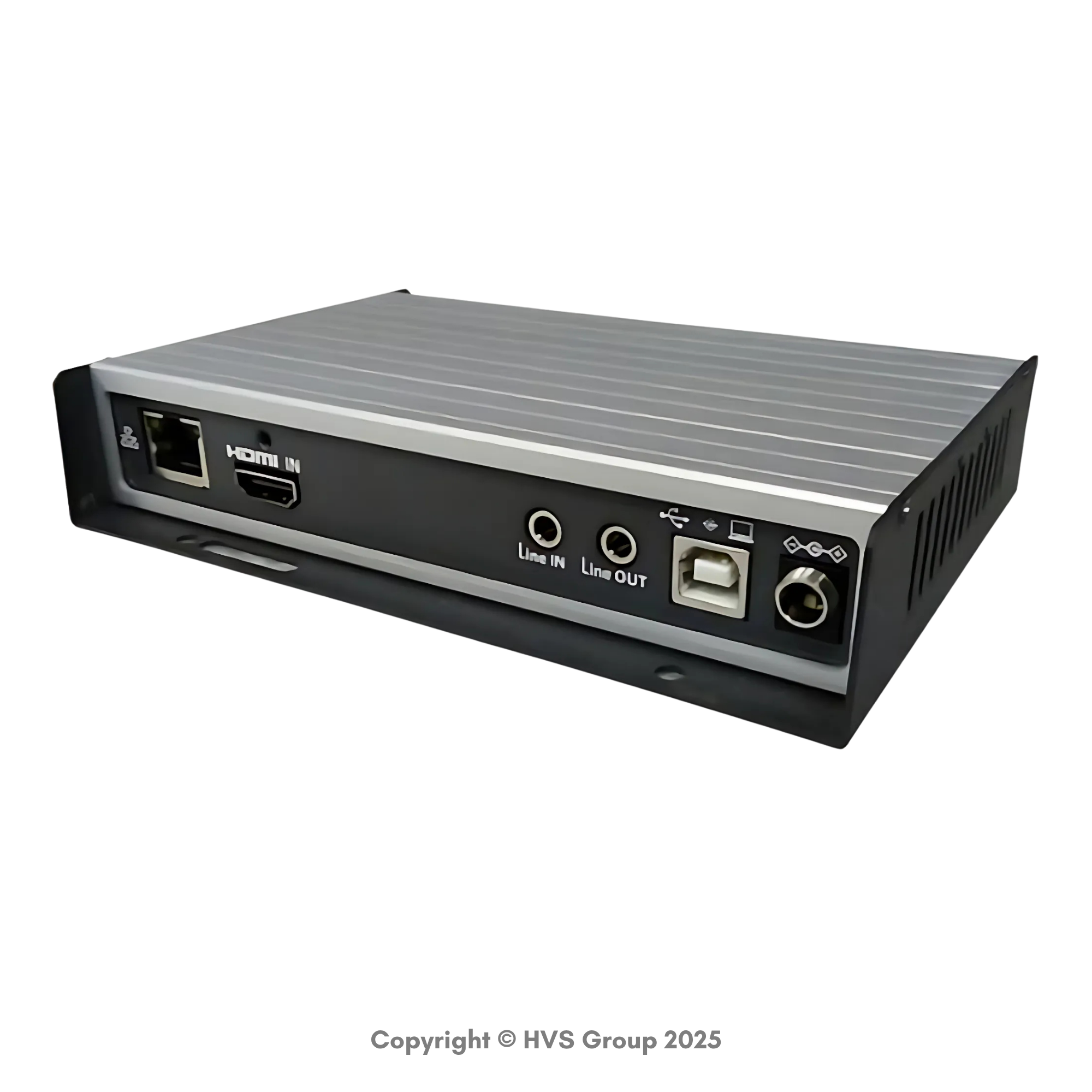

The AV-9520 is a high-performance solution for extending 4K video, audio, USB, IR, and RS232 over Gigabit IP Ethernet, ideal for modern AV and KVM applications. The system includes the AV-9520T Transmitter (TX) and AV-9520R Receiver (RX).

• The TX connects to a 4K source device such as a PC or Blu-ray player, converting input signals (video, audio, USB, etc.) into IP packets. These packets are transmitted via Multicast or Unicast through a Gigabit Ethernet switch.

• The RX connects to output devices such as a display, speakers, microphone, and USB peripherals, receiving the IP stream and converting it back to original signals.

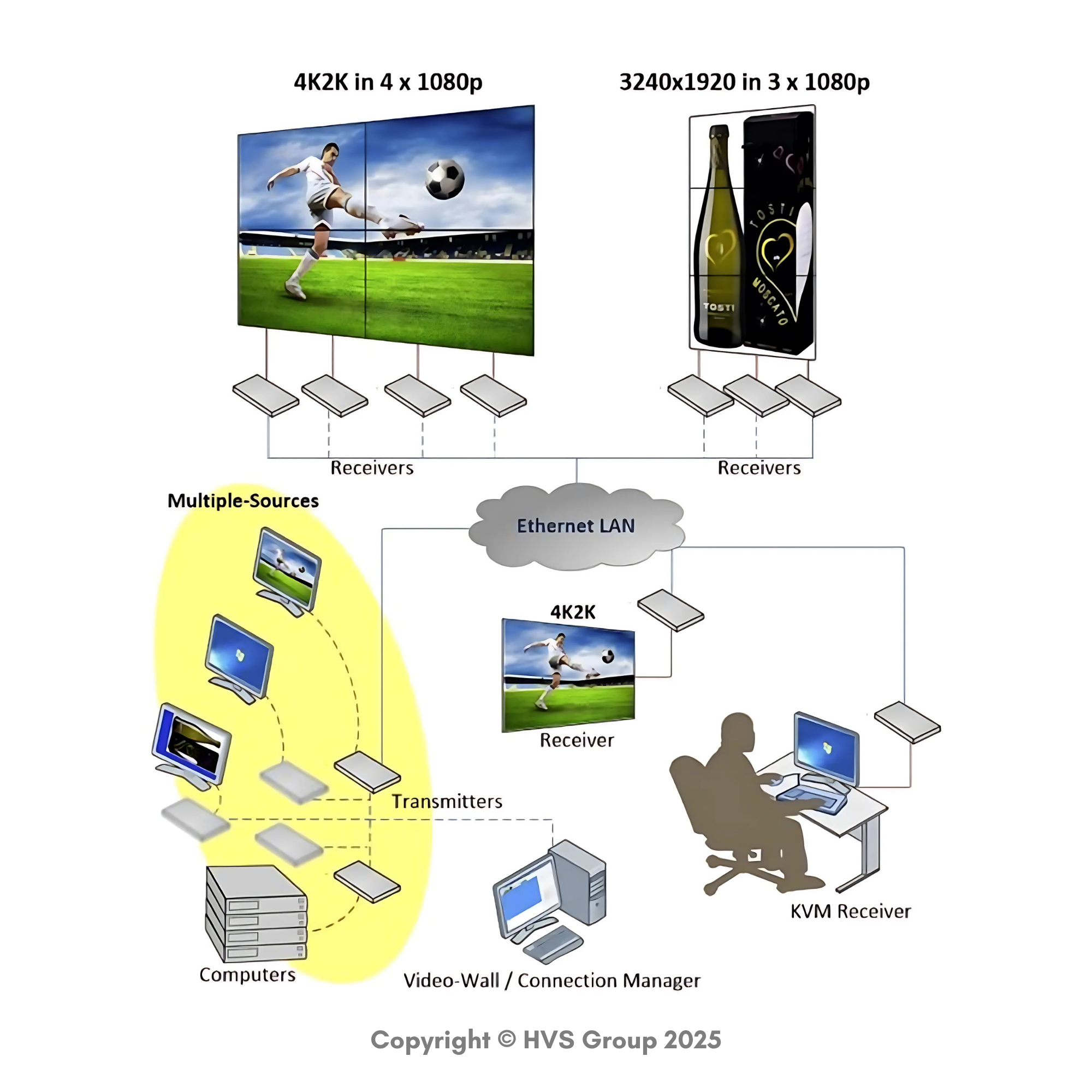

Built on standard IP technology, the AV-9520 system features a powerful 4K2K Encoder/Decoder engine with integrated scaling functionality, enabling flexible video wall configurations using multiple RX units.

This makes the AV-9520 an ideal choice for:

• AV broadcasting

• KVM matrix control

• Video wall displays

• Digital signage in:

  • Corporate boardrooms

  • Courtrooms

  • Educational environments

  • Medical and military facilities

  • Public and entertainment venues

The AV-9520 offers a scalable, flexible, and reliable AV-over-IP solution for demanding professional environments.
