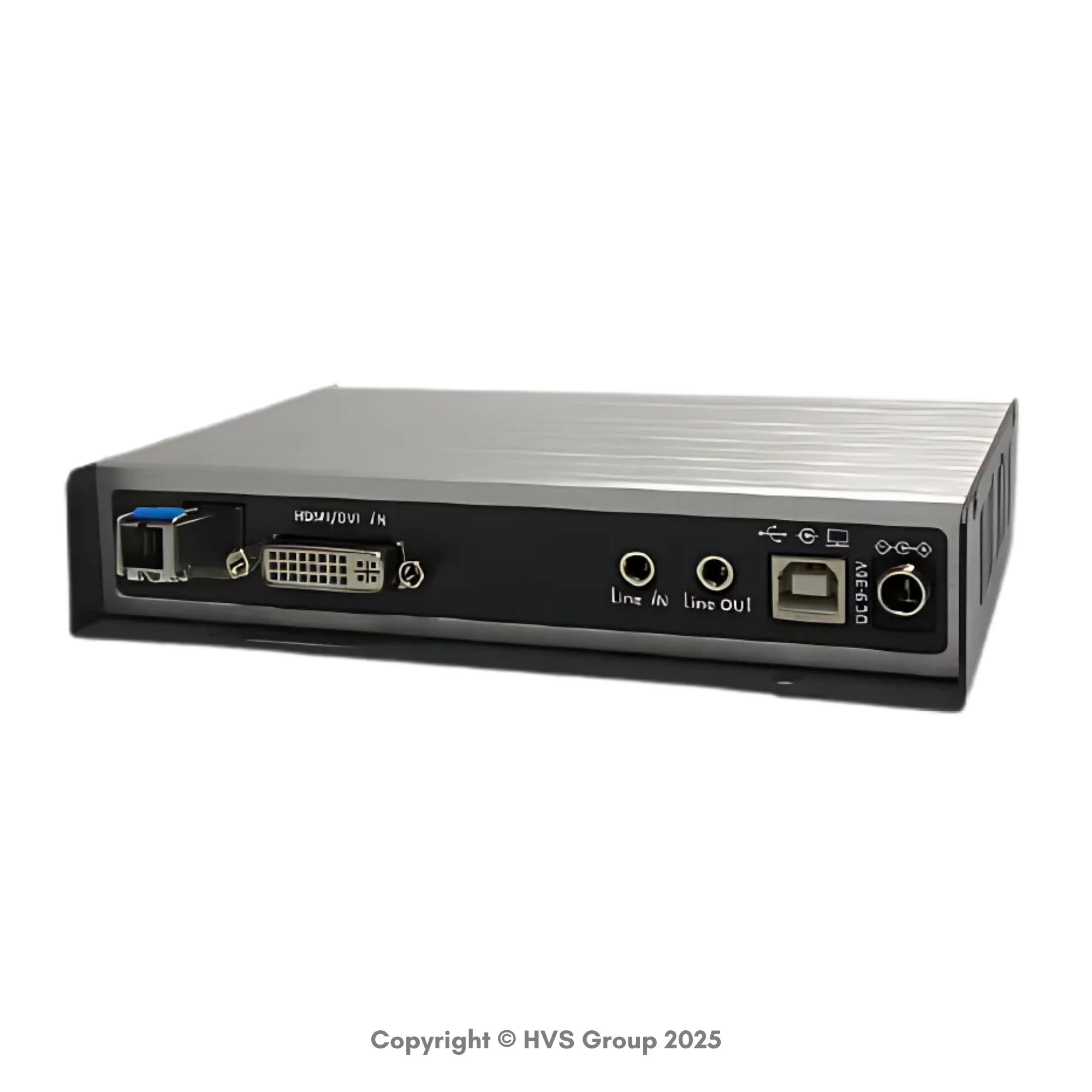

BEACON AV-95F20

IP based 4K KVM Extender with Video-Wall over Optical Fiber

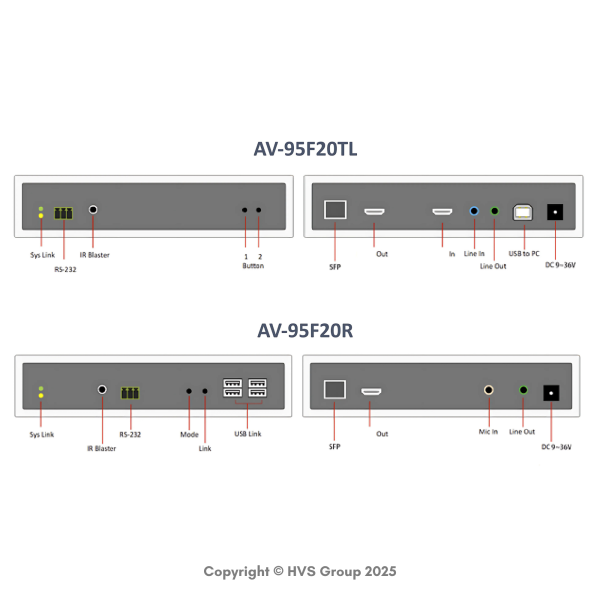

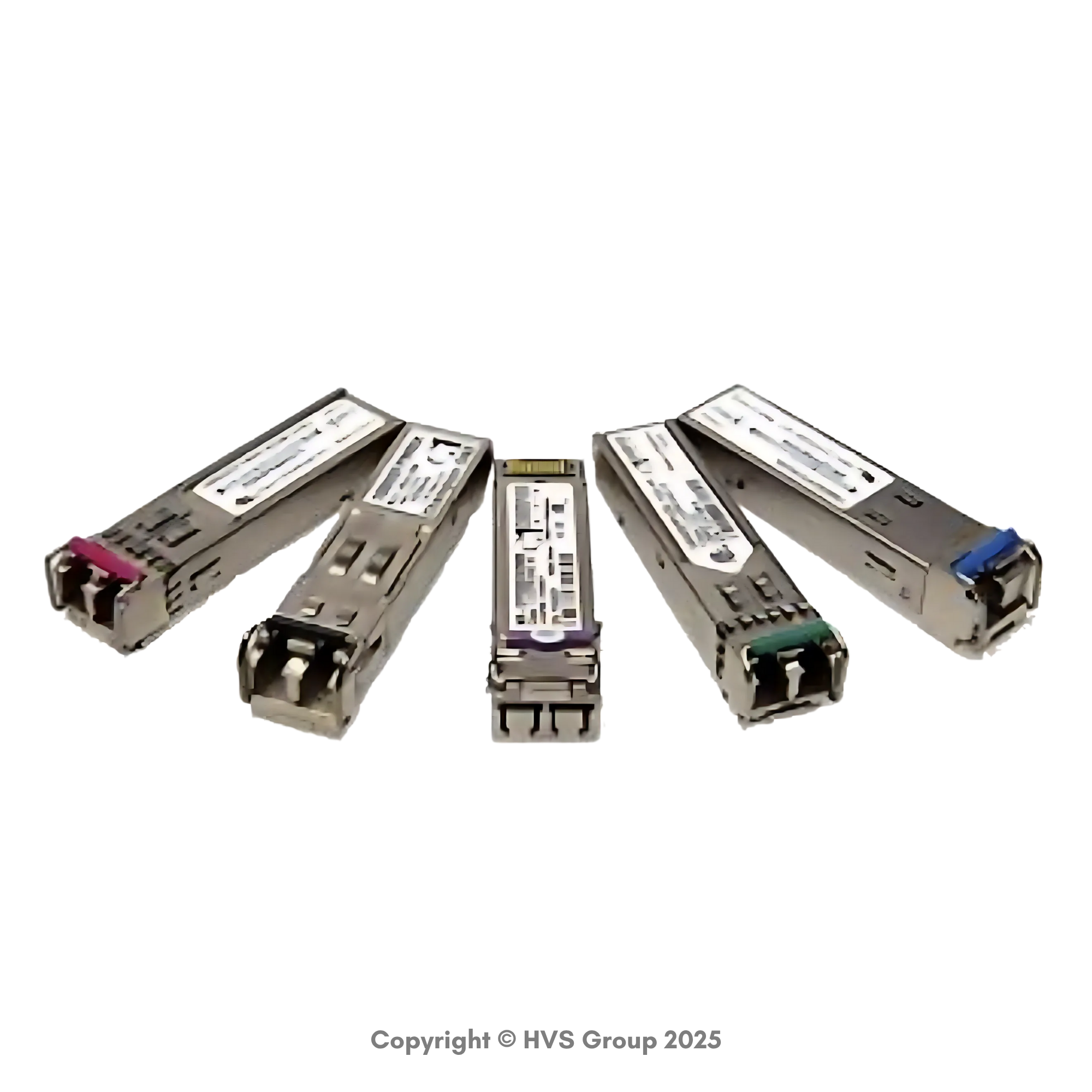

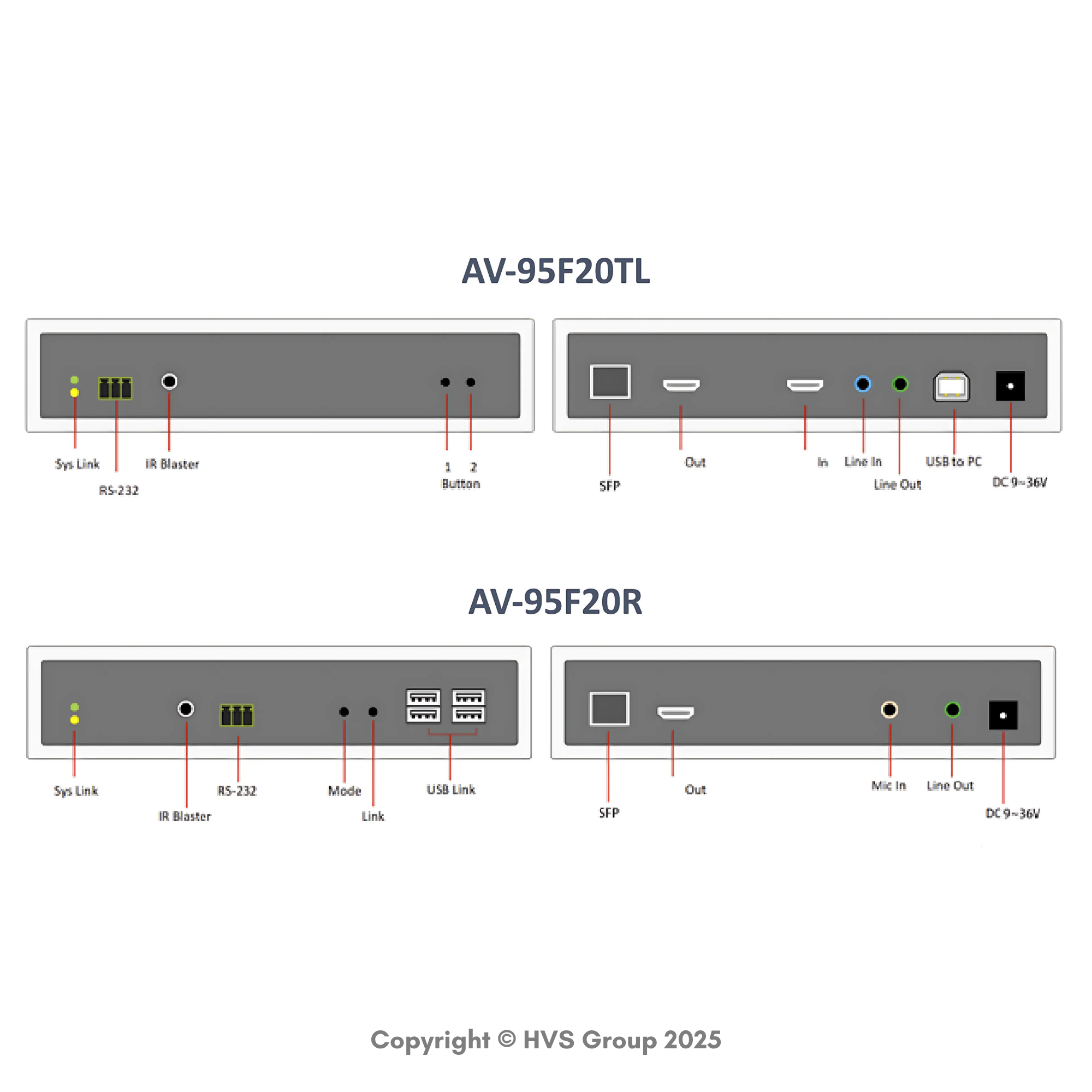

The AV-95F20 is a high-performance solution for transmitting 4K video, audio, USB, IR, and RS232 signals over IP networks using SFP optical fiber. This system includes two main components: the AV-95F20TL Transmitter (TX) and the AV-95F20R Receiver (RX).

• The TX unit connects to a source device such as a PC or Blu-ray player.

• The RX unit connects to a display, speakers, microphone, and USB peripherals.

Using standard IP technology, the transmitter converts all input signals (4K video, audio, USB, etc.) into IP packets, then streams them via Multicast or Unicast through a Gigabit Ethernet switch.

On the receiving side, the RX unit collects these IP packets from the network, decodes them back into their original formats, and sends them to the connected output devices (display, speakers, USB devices, etc.).

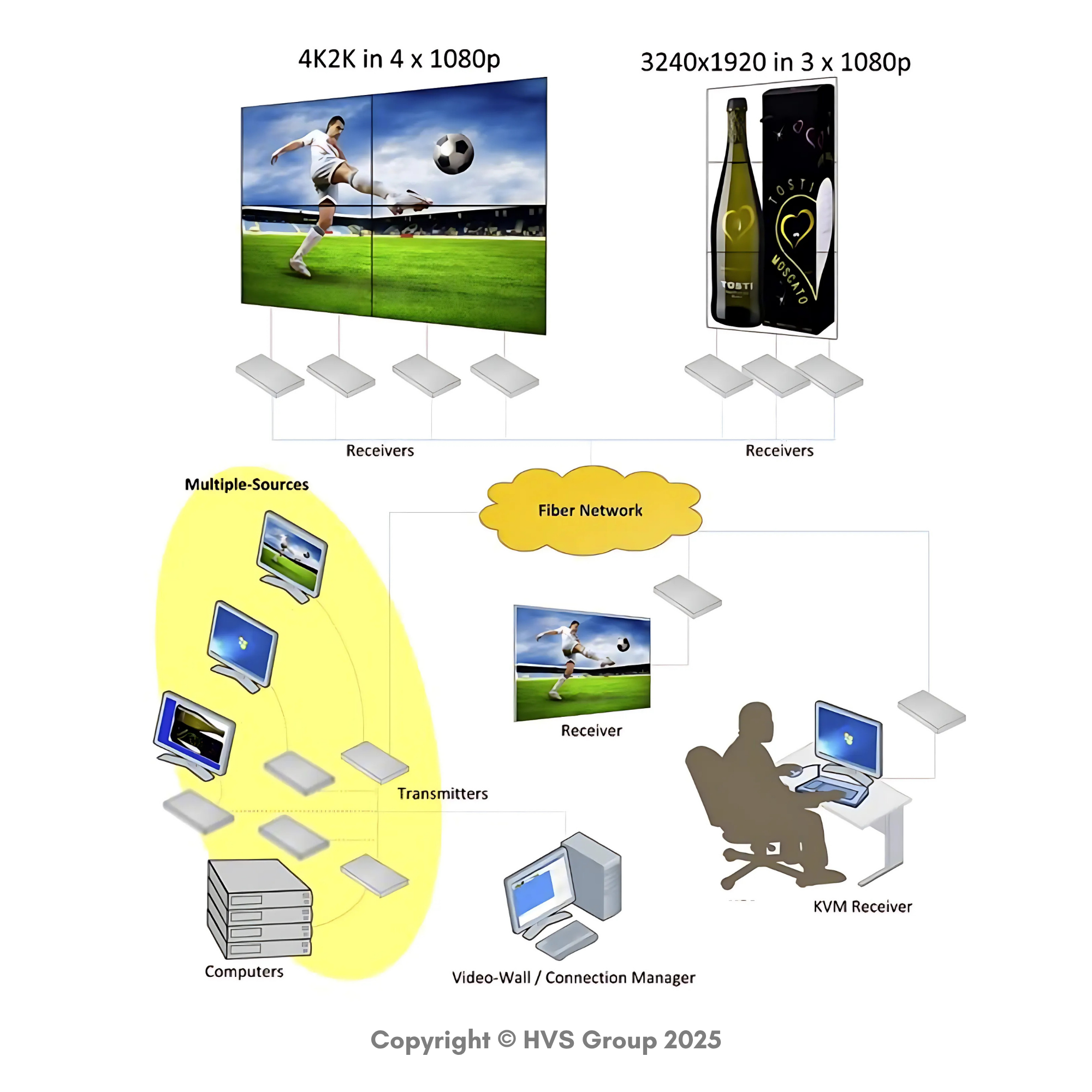

The built-in encoder/decoder engine includes a scaler function, enabling multiple RX units to be configured for flexible video wall setups.

This makes the AV-95F20 an ideal solution for:

• AV broadcasting

• KVM matrix control

• Video wall systems

Common applications include informational displays, entertainment venues, boardrooms, courtrooms, as well as medical, military, and educational digital signage environments.
