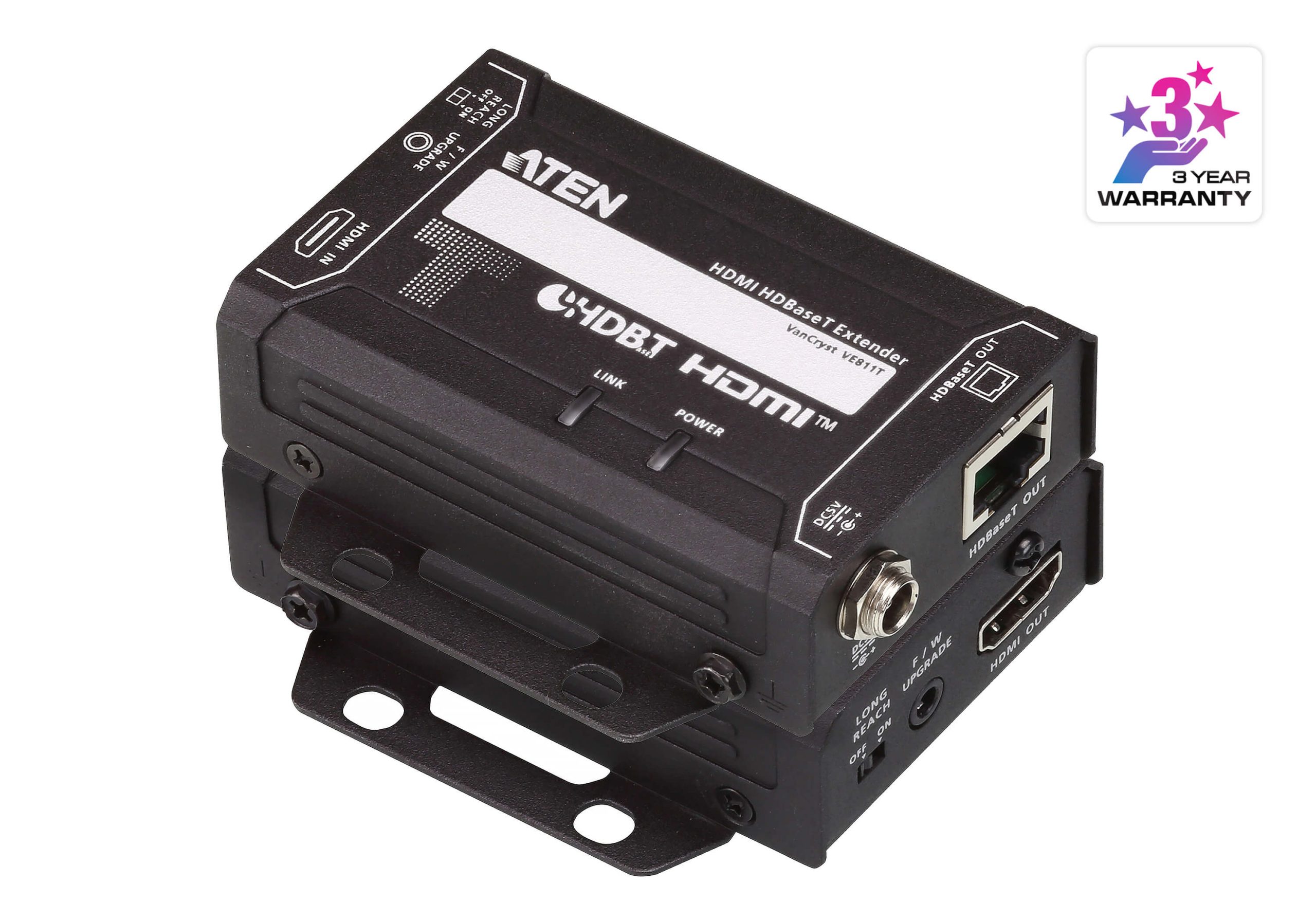

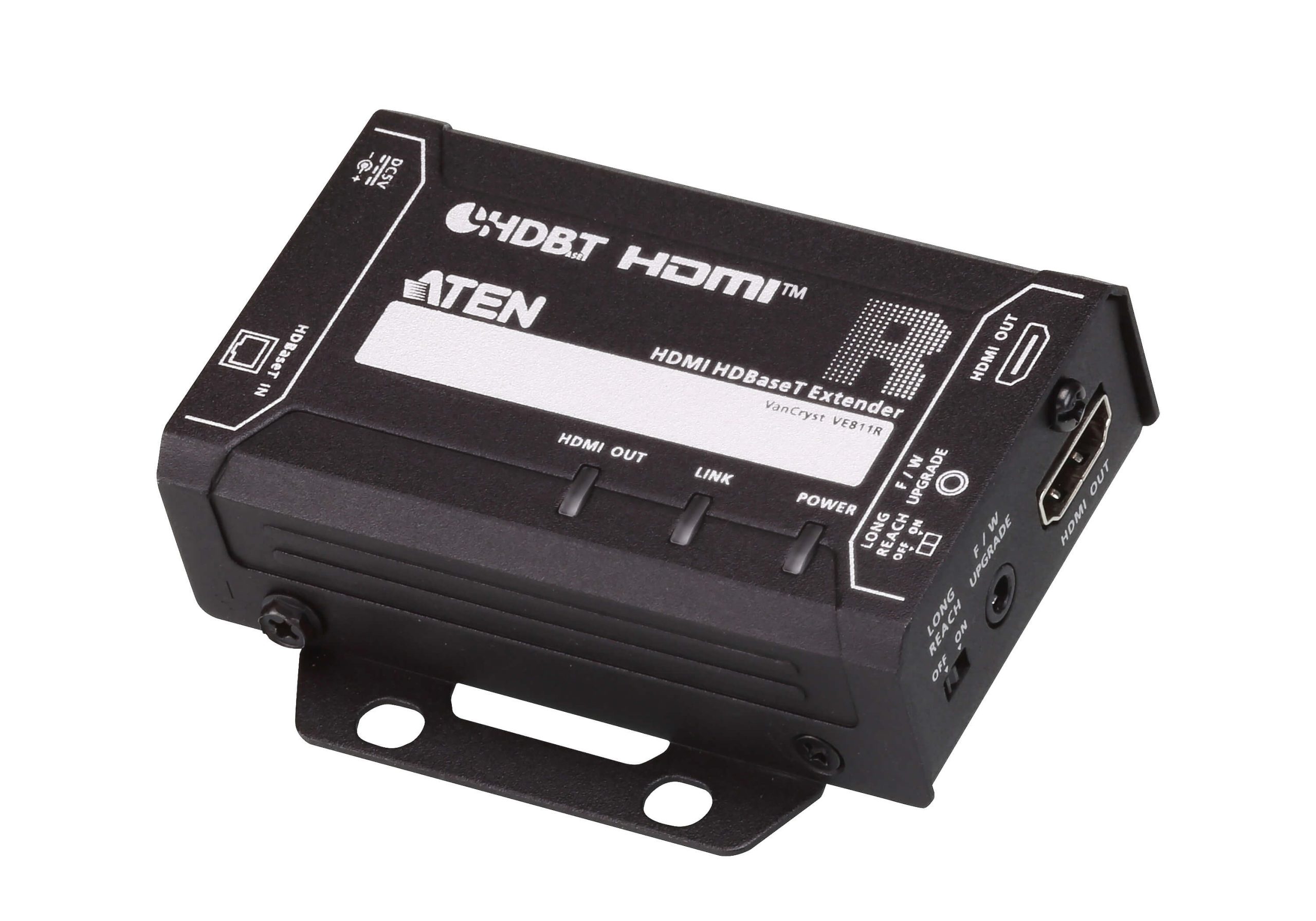

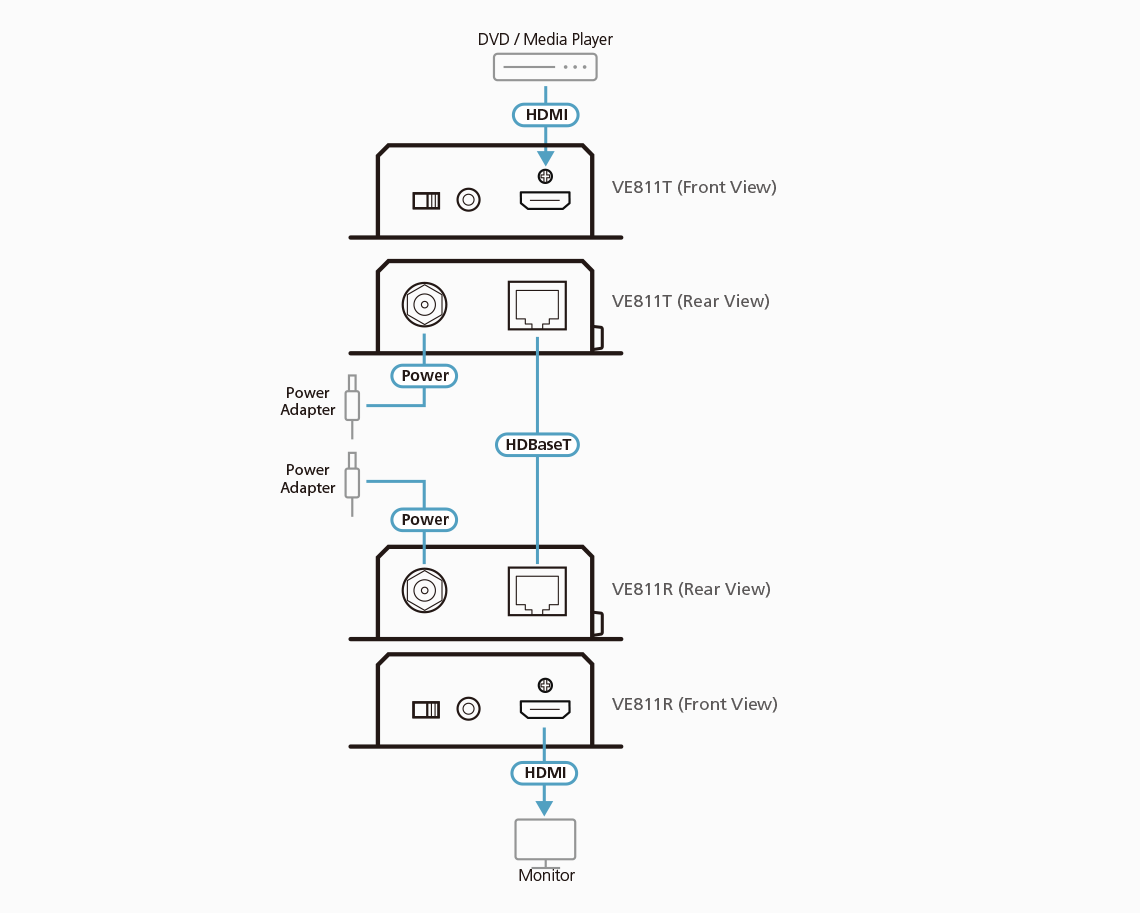

ATEN VE811
HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 7.1 ch and DTS HD audio.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Spesification
| Function | VE811R | VE811T |
| Video Input | ||

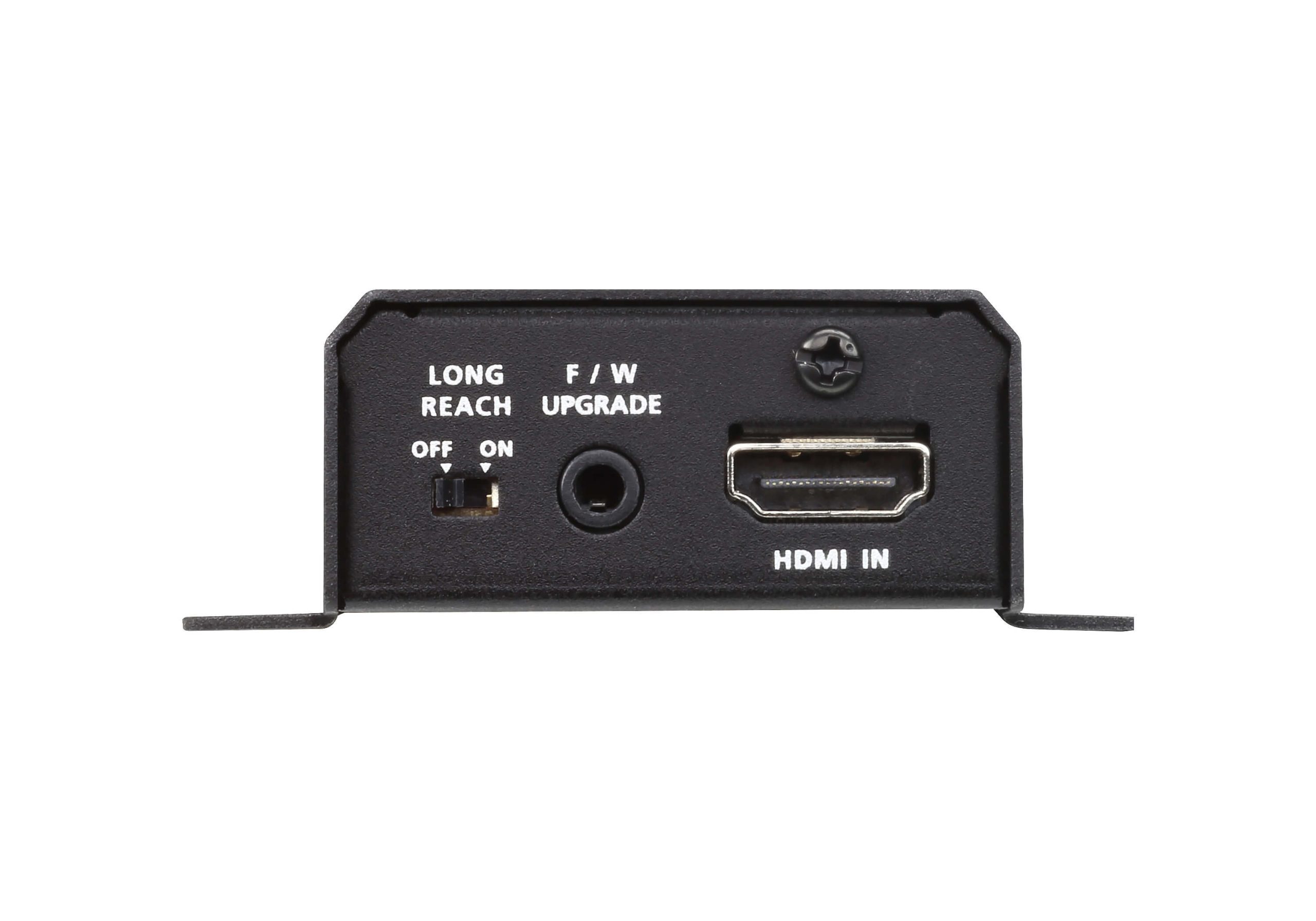

| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 Ω |
| Max. Distance | N/A | 3 m |
| Video Output | ||

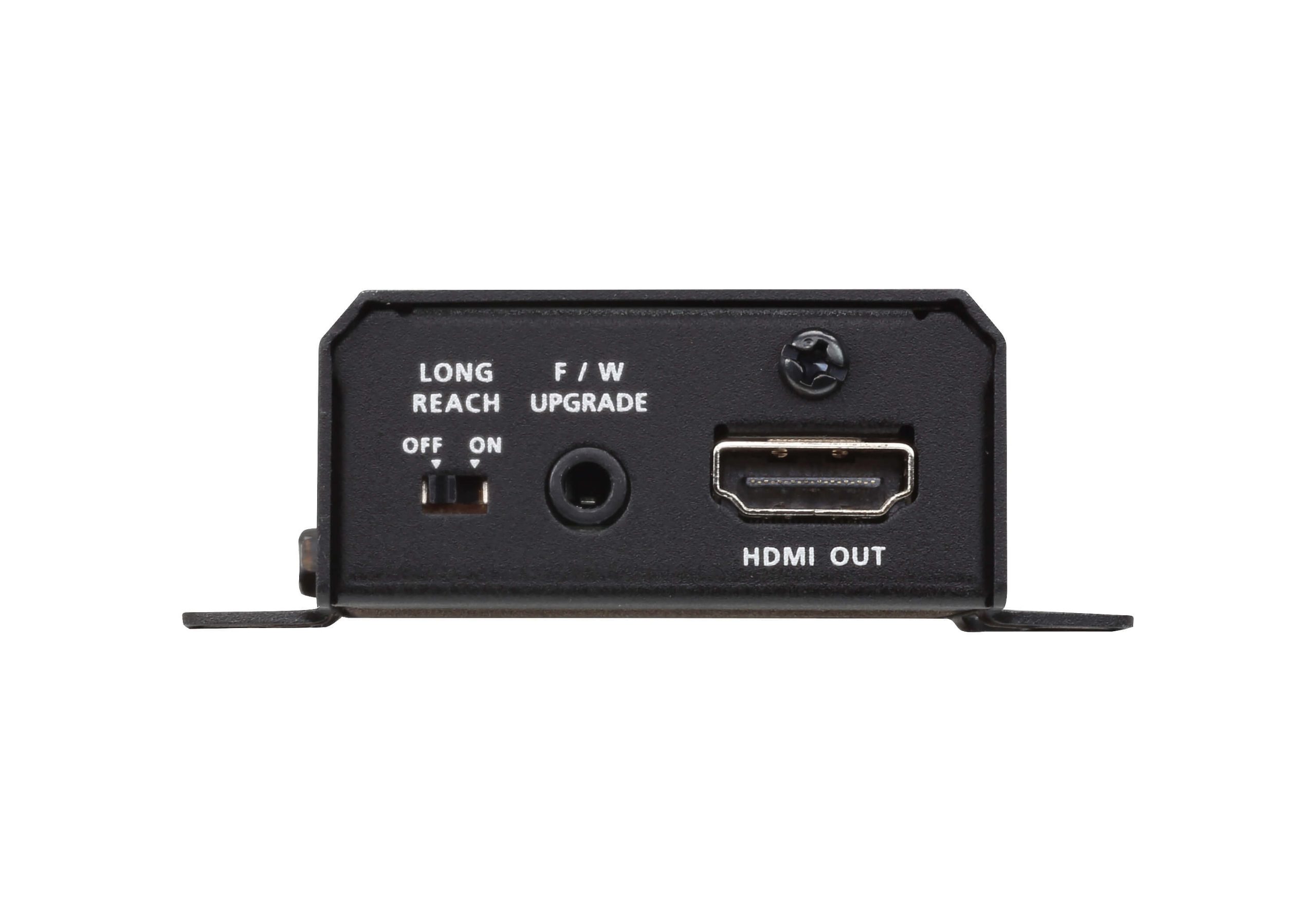

| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 Ω | N/A |
| Max. Distance | 3 m | N/A |
| Video | ||
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | N/A |
| Connectors | ||

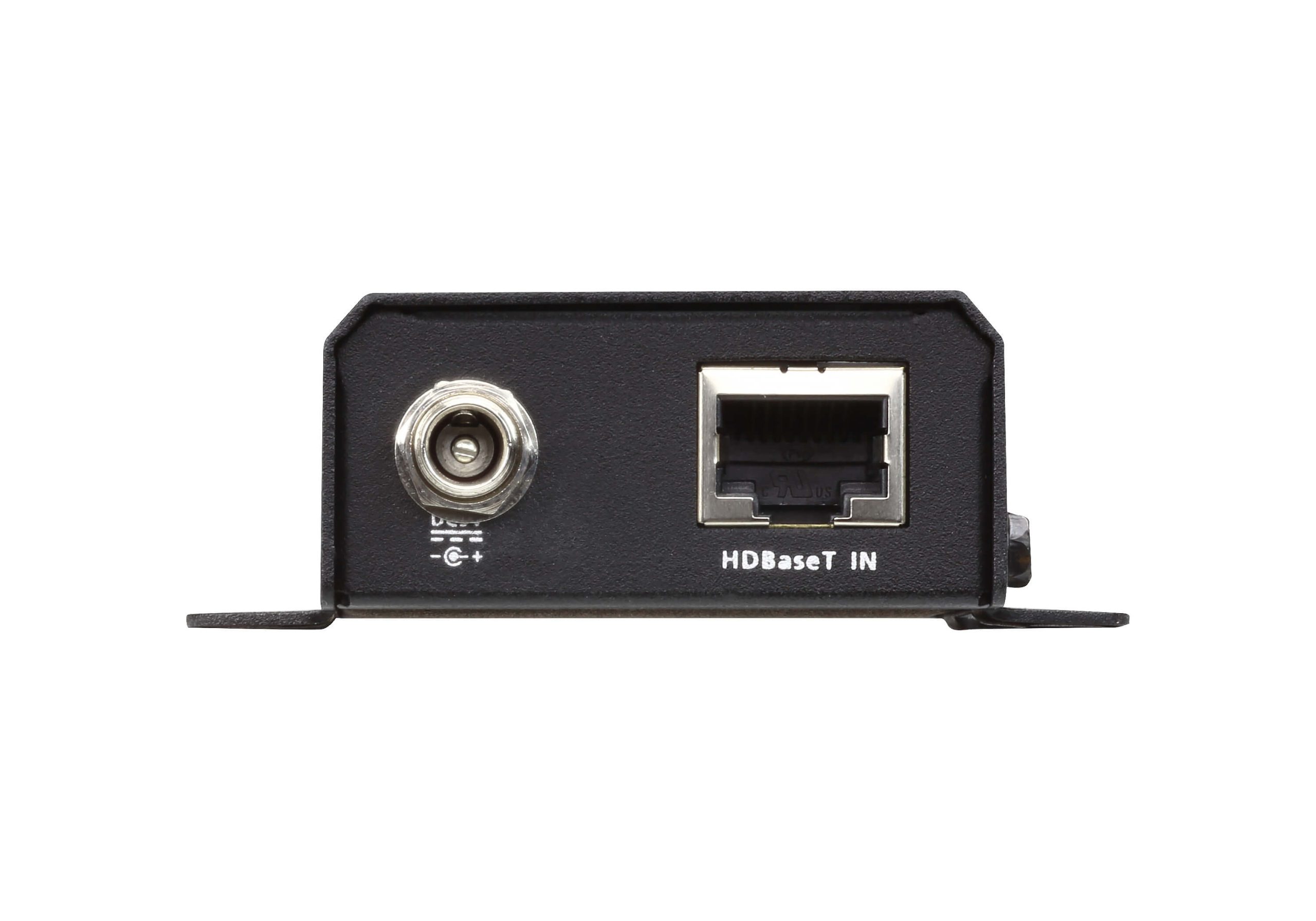

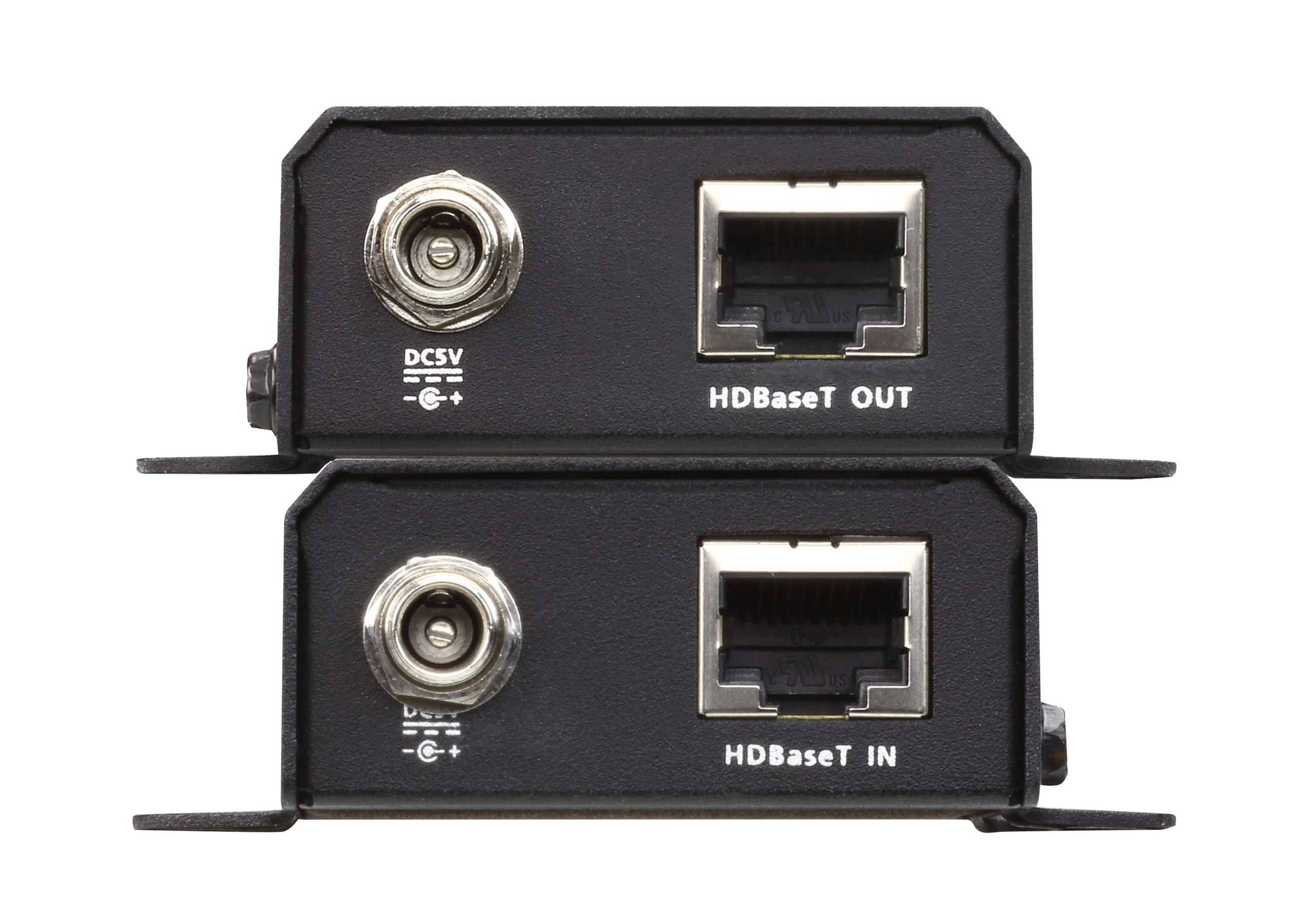

| Unit To Unit | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Firmware Upgrade | 1 x Mini Stereo Jack Female (Black) | 1 x Mini Stereo Jack Female (Black) |
| Power | 1 x DC Jack (Black) with locking | 1 x DC Jack (Black) with locking |
| Switches | ||

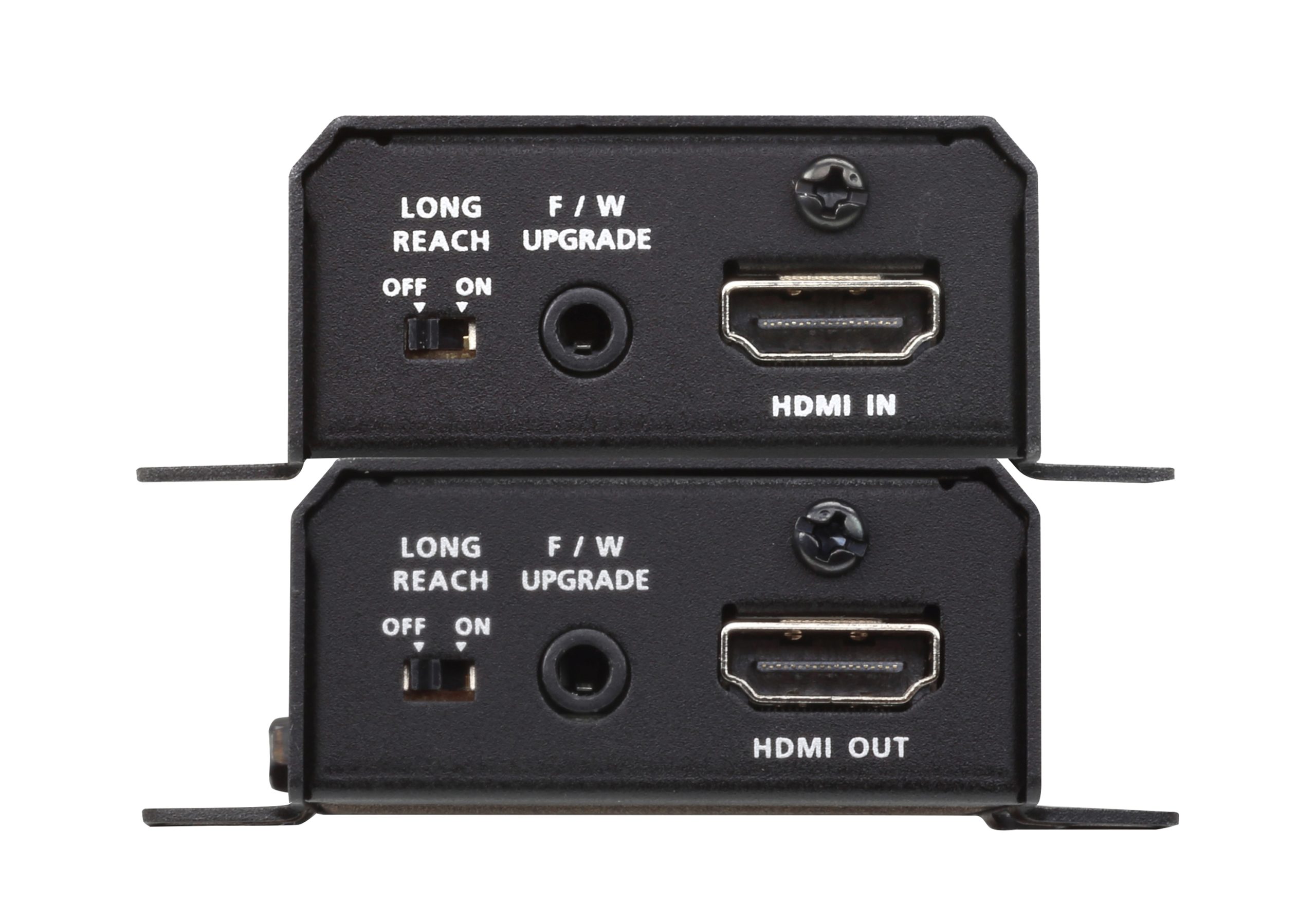

| Long Reach Mode Switch | 1 x Slide Switch – ON/OFF | 1 x Slide Switch – ON/OFF |
| Power Consumption | DC5V:3.84W:18BTU
Note: |
DC5V:3.77W:18BTU
Note: |
| Environmental | ||
| Operating Temperature | 0 – 40°C | 0 – 40°C |
| Storage Temperature | -20 – 60°C | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.17 kg ( 0.37 lb ) | 0.16 kg ( 0.35 lb ) |
| Dimensions (L x W x H) with bracket | 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.) |
8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.) |
| Dimensions (L x W x H) without bracket | 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.) |
8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.) |
| Input Resolutions | 640 x 480 @ 60/67/72/75 Hz | 1920 x 1200 @ 60 Hz (Reduced Blanking) |
| 640 x 480 @ 60Hz (4:3) | 480p 60 Hz (4:3)/(16:9) | |
| 720 x 400 @ 70 Hz | 576p 50 Hz (4:3)/(16:9) | |
| 800 x 600 @ 56/60/72/75 Hz | 720p 50/60 Hz | |
| 1024 x 768 @ 60/70/75 Hz | 1080i 50/ 60 Hz | |
| 1280 x 800 @ 60 Hz | 1080p 24/25/30/50/60 Hz | |
| 1280 x 1024 @ 60/75 Hz | 3840 x 2160p 24/25/30 Hz | |
| 1400 x 1050 @ 60 Hz | 3840 x 2160p 50/60 Hz 4:2:0 | |
| 1440 x 900 @ 60 Hz | 4096 x 2160p 24/25/30 Hz | |
| 1600 x 1200 @ 60 Hz | 4096 x 2160p 50/60 Hz 4:2:0 | |
| 1680 x 1050 @ 60 Hz | ||
| 1920 x 1080 @ 60 Hz | ||
| 1920 x 1200 @ 60 Hz |
Datasheet
VE811-HDMI-HDBaseT-Extender-datasheet-en.pdf (852.85 KB)
